Name: Vibration Resistant Outdoor Endurance Crack Proof Transformer Epoxy Resin for CT/VT Potting
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8224A
Price: 2.35 USD
Availability: InStock

Home > Products > Transformer Epoxy Resin >

Vibration Resistant Outdoor Endurance Crack Proof Transformer Epoxy Resin for CT/VT Potting

Vibration Resistant Transformer Epoxy Resin

Outdoor Endurance Epoxy Potting Compound

Crack Proof Epoxy Encapsulant

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8224A

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

12~40.5kV Insulators, Current & Voltage Transformers, Dry Type Transformers Etc

Application:

Indoor Medium & High Voltage Electrical Products

Appearance Of Epoxy Resin:

White Viscous Liquid

Viscosity At 40°C:

16000 - 35000mPa.s

Density At 25°C:

1.60 - 1.70g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

> 150°C

Discription:

Strong Weather Endurance Transformers Epoxy Resin Outdoor CT VT Raw Material

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T,L/C

Supply Ability

Plenty of raw material in stock

Long-Lasting Anti-Tracking & UV Protection Epoxy for CT/PT Units Premium Electrical Sealant for Adhesives & CT/PT Units

Get Best Price

Thermally Conductive Epoxy Resin for Transformers and Bushings

Get Best Price

Video

Vibration Resistant RT Cure Potting Compound for Protecting Sensitive CT/PT Coils

Get Best Price

Video

Thermal Shock Resistant Epoxy Curing Agent for MV Switchgear Encapsulation & Protection

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

LW-8224A/B: Vibration-Resistant Epoxy for Outdoor CT/VT Transformers - 12-40.5kV Crack-Proof Encapsulation

Prefilled BPA Resin | Thermal Shock Stability | Room Temp Cure

Engineered for outdoor CT/VT transformers, this prefilled Bisphenol-A epoxy system delivers vibration-resistant potting for 12-40.5kV coils exposed to extreme weather. LW-8224A resin + LW-8224B anhydride hardener provide crack-resistant encapsulation protecting delicate windings from mechanical stress, temperature swings (-40°C to 155°C), and environmental degradation.

Critical Advantages

Vibration Damping: Shields sensitive CT/PT coils from operational stress
Outdoor Endurance: Superior UV/weather resistance for transformers
Crack Resistance: Withstands thermal cycling in low/high temperature conditions
Prefilled System: Ready-to-use precision formulation
Energy-Efficient: Room temperature cure eliminates oven dependency

Applications

Voltage Class	Components
12-40.5kV Systems	Current/Voltage Transformers (CT/VT), Dry-Type Transformers
Medium/High Voltage	Bushings, Insulators, Switchgear

Processing Methods

Method	Key Benefit
Vacuum Gravity Casting	Bubble-free encapsulation for intricate coils
APG (Automated Pressure Gelation)	High-volume production of vibration-resistant parts

Performance Properties

Property	Specification
Dielectric Strength	>20 kV/mm (ASTM D149)
Temp Range	-40°C to +155°C operational
Crack Resistance	Excellent (1,500+ thermal cycles)
Vibration Damping	60%+ stress reduction vs. standard epoxies
Cure Conditions	Room temperature (24-72 hrs)
Color Options	Customizable (LC-Series paste)

Simplified Formulation

Component	Product	Proportion
Epoxy Resin	LW-8224A	100 pbw
Hardener	LW-8224B	100 pbw
Colorant	LC-Series*	3 pbw

*Add for UV-stable pigmentation in outdoor applications

Technical Superiority for Demanding Environments

This electrical-grade potting compound combines prefilled precision with outdoor durability. Its optimized viscosity ensures complete gap filling for CT/VT windings, while room temperature curing slashes production costs. Validated for 12-40.5kV transformers, it delivers unmatched mechanical-electrical stability under thermal shock, vibration, and moisture exposure - ideal for dry-type transformers in renewable energy grids and substations.

Advantage

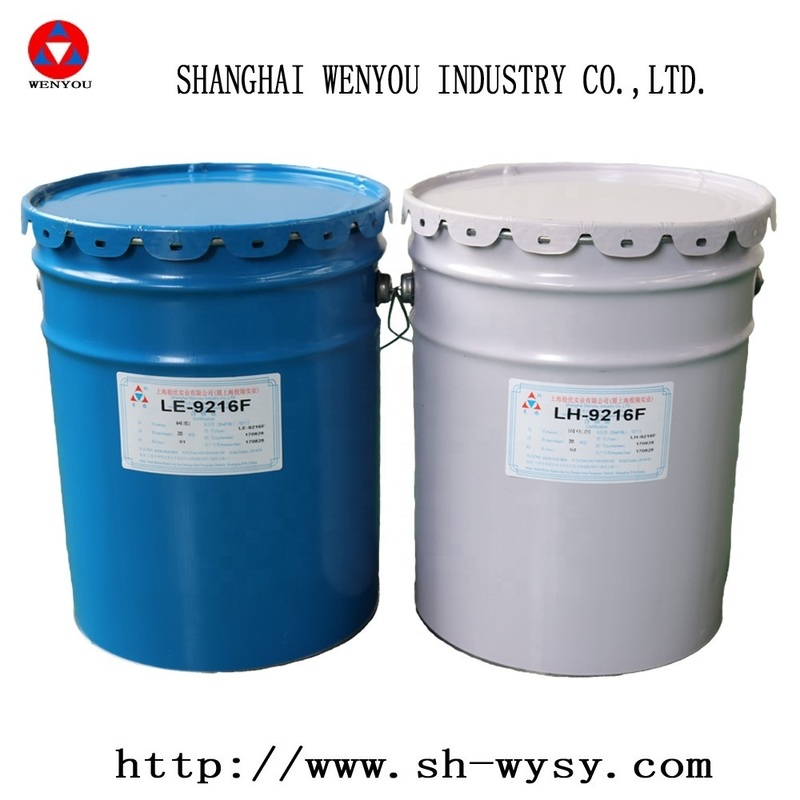

Package Image

Shipment Image

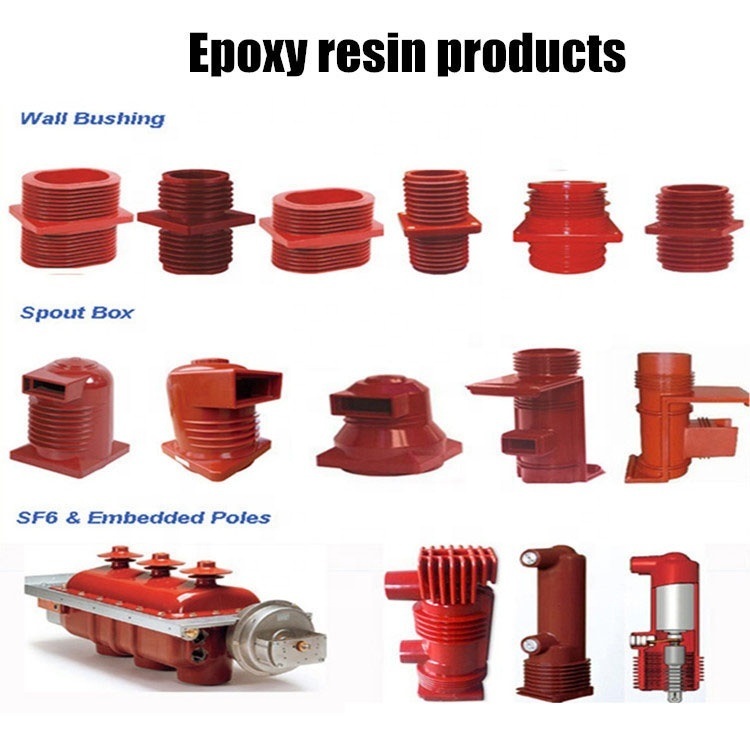

Example Application Image
