Name: Thermally Conductive Epoxy Resin for Transformers and Bushings
Brand: Shanghai Wenyou Industry Co., Ltd.
Price: 2.70 USD
Availability: InStock

Home > products > Transformer Epoxy Resin >

Thermally Conductive Epoxy Resin for Transformers and Bushings

thermally conductive epoxy resin

transformer epoxy resin adhesive

epoxy resin for bushings

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Request A Quote

Thermally Conductive Epoxy Resin for Transformers and Bushings

Product Details

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

216-823-5

Classification:

Double Components Adhesives

Main Material:

EPOXY

Resin Type:

Epoxy Resin Compound

Resin Component:

LE-9229

Hardener Component:

LH-9229

Filler Quantity:

300-350pbw

Color Paste:

LC-serious

Color Quantity:

3pbw

Processing Method:

Conventional Casting Under Vacuum

Insulation Voltage:

10-1100KV

Compliance:

ROHS, REACH

Equivalent Product:

Huntsman's CW229

Payment & Shipping Terms

Minimum Order Quantity

5000

Price

$2.70-2.90

Thermally Conductive Epoxy Resin for Transformers and Bushings

Get Best Price

Video

Vibration Resistant RT Cure Potting Compound for Protecting Sensitive CT/PT Coils

Get Best Price

Video

Thermal Shock Resistant Epoxy Curing Agent for MV Switchgear Encapsulation & Protection

Get Best Price

Video

Epoxy System H-Class Insulation 12-40.5kV Applications Vacuum / APG Casting

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Enhanced Cooling for Transformers & Bushings Thermally Conductive Epoxy Resin Adhesive & Sealant

Product Specifications

CAS No.	1675-54-3
Other Names	Epoxy resin potting compound
MF	C21H24O4
EINECS No.	216-823-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	Electrical insulation
Type	Epoxy resin compound

Product Description

Bi-component epoxy resin system/liquid designed for conventional casting processes under vacuum. This product offers properties similar to Huntsman's CW229, making it a suitable replacement.

Applications

Medium & high voltage insulation switch parts
Insulators for 10kV/35kV current & voltage transformers
Dry-type transformers

Formulation

Component	Type	Quantity
Epoxy resin	LE-9229	100pbw
Hardener	LH-9229	100pbw
Filler	/	300-350pbw
Color paste	LC-serious	3pbw

Product Images

About Our Company

Shanghai Wenyou Industry Co., Ltd. is a professional manufacturer engaged in R&D, production, and sales of epoxy resin, curing agents, and related products. Our products are sold domestically and exported to Europe, Southeast Asia, Middle East, Russia, and CIS countries.

We hold ISO9001 and ISO14001 certifications, along with EU SGS and US UL certifications. Our products comply with ROHS and REACH safety regulations and are widely used in 10-1100KV high voltage electrical insulation applications.

Certifications

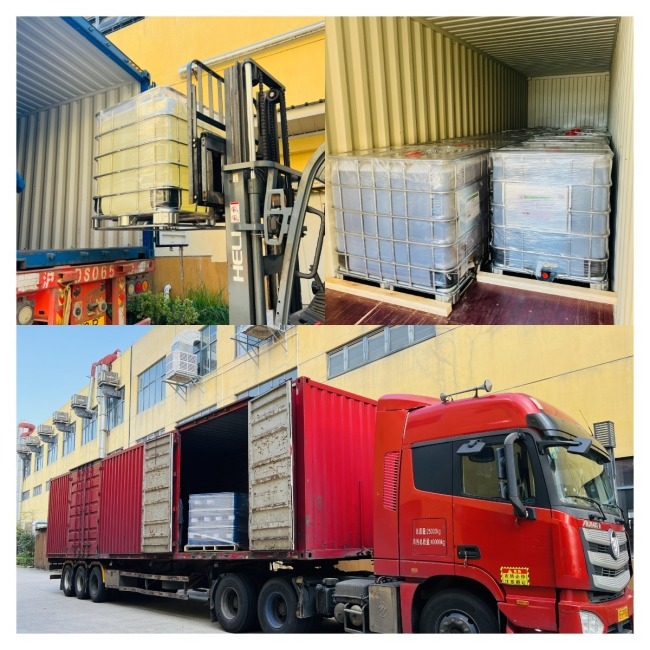

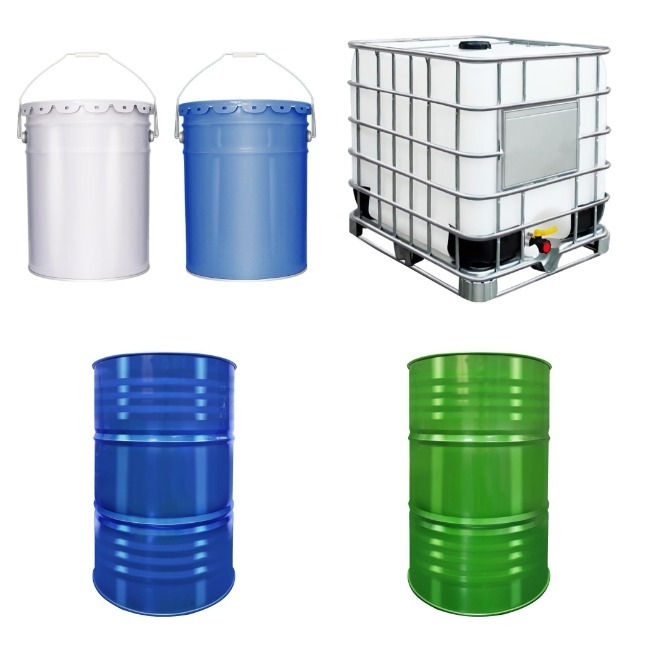

Packing & Delivery

Automated production and packaging processes
Advanced equipment reduces labor costs and improves efficiency
Reliable logistics ensures timely delivery

Applications

Ideal for national power grid projects
Suitable for outdoor/indoor electrical insulation with high crack and heat resistance
Compatible with various transformers including CT and PT

Frequently Asked Questions

What is your factory's biggest advantage?

Technology is our core competitiveness.

Can you supply free samples?

Yes, we can provide samples.

What is your product's MOQ?

We don't have exact MOQ requirements. We can supply quantities as small as 200kg.
