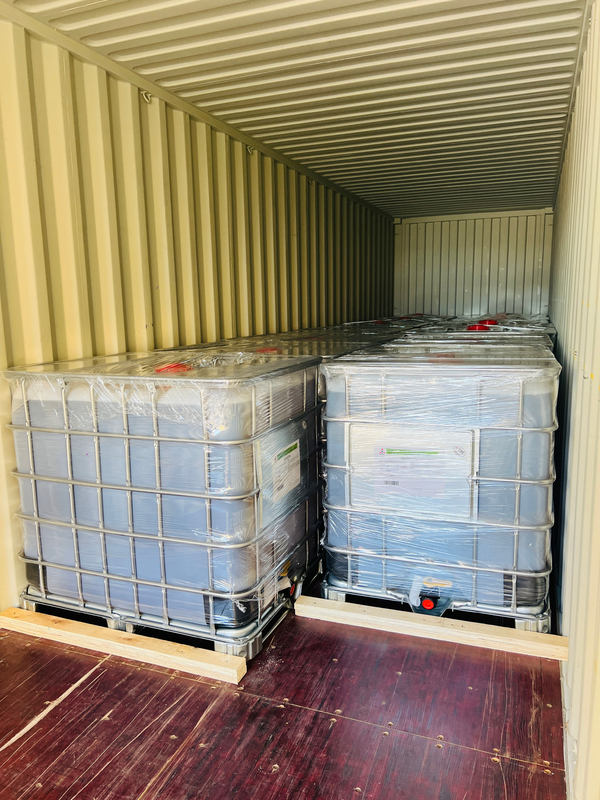

Packaging Details

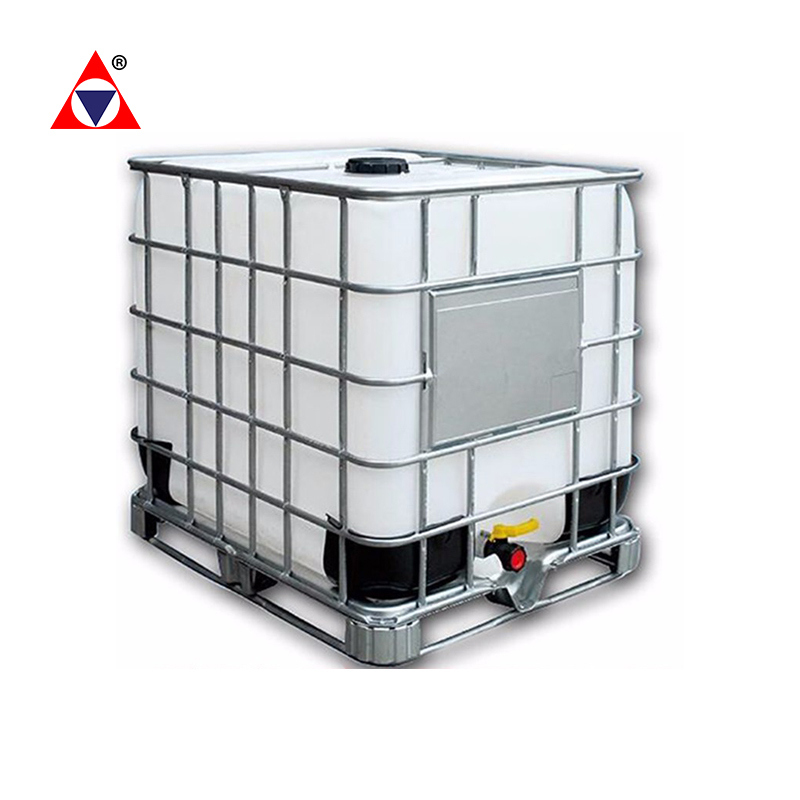

20KG/200KG/1200KG with Drum

Delivery Time

7 working days

Payment Terms

L/C,T/T

Supply Ability

12000 tons

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Get Best Price

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Get Best Price

Video

Flame Retardant Epoxy Resin Potting Compound with 10-35kV Electrical Insulation and Modified Saturated Epoxy Resin

Get Best Price

Electrical Insulation Epoxy Resin and Liquid Mold Electrical Insulation Epoxy Resin for Medium&high Voltage Transformer

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Flame Retardant Epoxy Resin Potting Compound for 10-35kV Electrical Insulation

Production Formulation

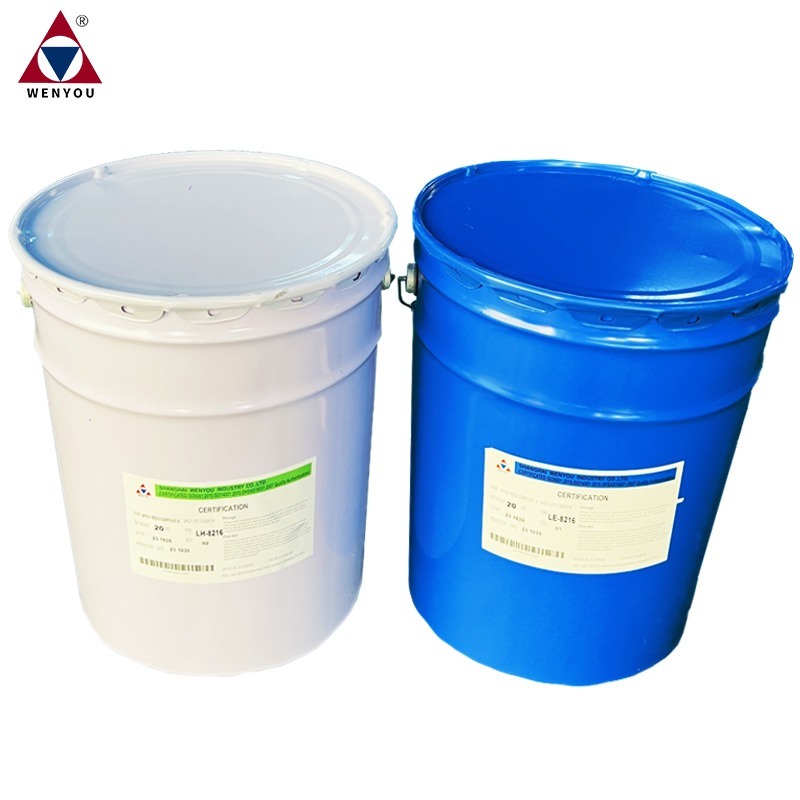

Component	Material	Quantity	Notes
Epoxy resin	LE-8516	100 pbw	Modified saturated epoxy resin system
Hardener	LH-8516	100 pbw	Modified weather-resistant acid anhydride hardener
Filler	Silica Flour	300-350 pbw
Color paste	LC series	3 pbw

Material Properties

Property	Unit	Value
Appearance	Visual	Transparent, light yellow, viscous liquid
Epoxy value	Eq/kg	4.5-5.0
Viscosity at 25°C	mPa.s	500-1000
Density at 25°C	g/cm3	1.16-1.20
Vapour Pressure at 25°C	Pa	<0.01
Flash point	°C	About 135

Processing Parameters

Parameter	Automatic Pressure Gelation	Vacuum Casting
Epoxy/hardener mixture temperature	40°C /1-2 hours	50-60°C /1-1.5hours
Feeding process	Pressure (0.5-5bar)	Vacuum (casting pot)
Mold temperature	130-150°C	105°C / 4-6 hours
Gelation time	10-30mins	80°C/4 hrs+100°C/2hrs+120°C/2hrs
Post cure	130-140°C*6-10 hrs	130-140°C*6-10 hrs

Cured Material Properties

Property	Value	Property	Value
Glass transition temperature Tg (DSC)	60-80°C	Thermal conductivity	0.8-0.9W/mk
Tensile strength	60-80N/mm²	Thermal decomposition	>320°C
Flexural strength	100-130N/mm²	Water absorption (23°C*10days)	0.10-0.20% by wt.
Compressive strength	140-190N/mm²	Water absorption (100°C*60 mins)	0.08-0.15% by wt.
Impact strength	8-16kJ/m²	Surface resistivity	10¹⁴Ω
Curing shrinkage	0.8-1.0%	Volume resistivity	10¹⁵Ω.cm
Flammability (4mm)	HB Class	Dielectric strength	20-30kV/mm
		Loss factor	0.02

Storage Information

Store components in tightly sealed, dry original containers at 6-35°C. Shelf life corresponds to expiration date on label (normally 12 months). Partial emptied containers should be closed tightly immediately after use.

About Shanghai Wenyou Industry Co., Ltd.

Established in 2008, we are a professional epoxy resin company specializing in manufacturing, R&D, and sales of epoxy resin, curing agents, and related products. Our product range includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy paste, demoulding agents, and fillers.

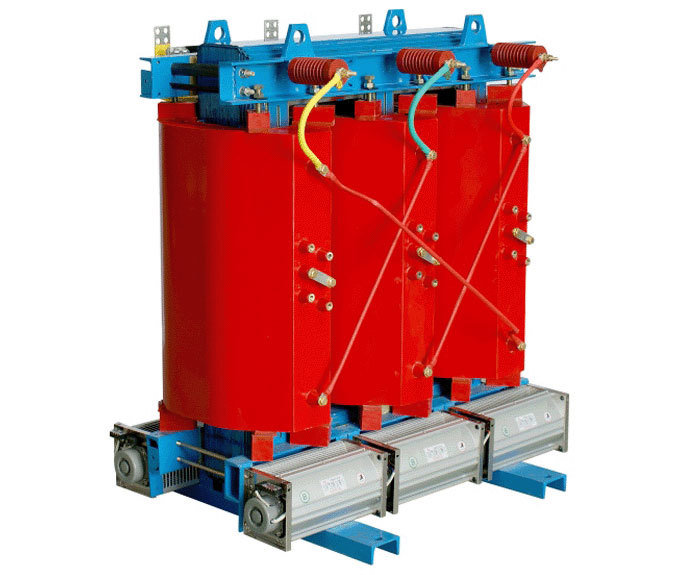

Certified with ISO9001, ISO14001, SGS, and UL, our products comply with ROHS and REACH safety regulations. Our high-quality products are used in high voltage electrical insulation applications and are exported globally.
