Name: Outdoor Epoxy Resin UV-Resistant Low-Shrinkage HV Insulation 10-66kV
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: The LE-8216F/LH-8216F
Price: 2.35 USD
Availability: InStock

Home > products > Transformer Epoxy Resin >

Outdoor Epoxy Resin UV-Resistant Low-Shrinkage HV Insulation 10-66kV

66kV Outdoor Epoxy Resin

UV-Resistant Outdoor Epoxy Resin

Low-Shrinkage Transformer Epoxy Resin

Place of Origin:

CHINA

Brand Name:

WENYOU

Certification:

ISO/REACH/RoHS/SGS/UL

Model Number:

The LE-8216F/LH-8216F

Request A Quote

Product Details

Thermal Class:

Adhesion:

Strong

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

Plenty of raw material in stock

Thermal Shock Resistant Epoxy Curing Agent for MV Switchgear Encapsulation & Protection

Get Best Price

Video

Outdoor Epoxy Resin UV-Resistant Low-Shrinkage HV Insulation 10-66kV

Get Best Price

Video

Epoxy System H-Class Insulation 12-40.5kV Applications Vacuum / APG Casting

Get Best Price

Video

Pre-Filled Epoxy System V1 Flammability HV Insulation 10-35kV APG / Vacuum Casting

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Outdoor Epoxy Resin | UV-Resistant | Low-Shrinkage | HV Insulation (10-66kV)

Product Attributes

Thermal Class	F
Adhesion	Strong

Product Description

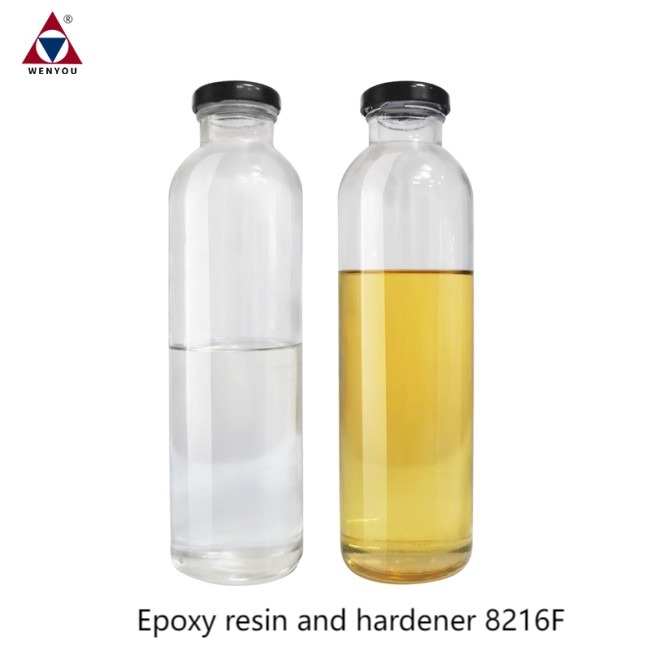

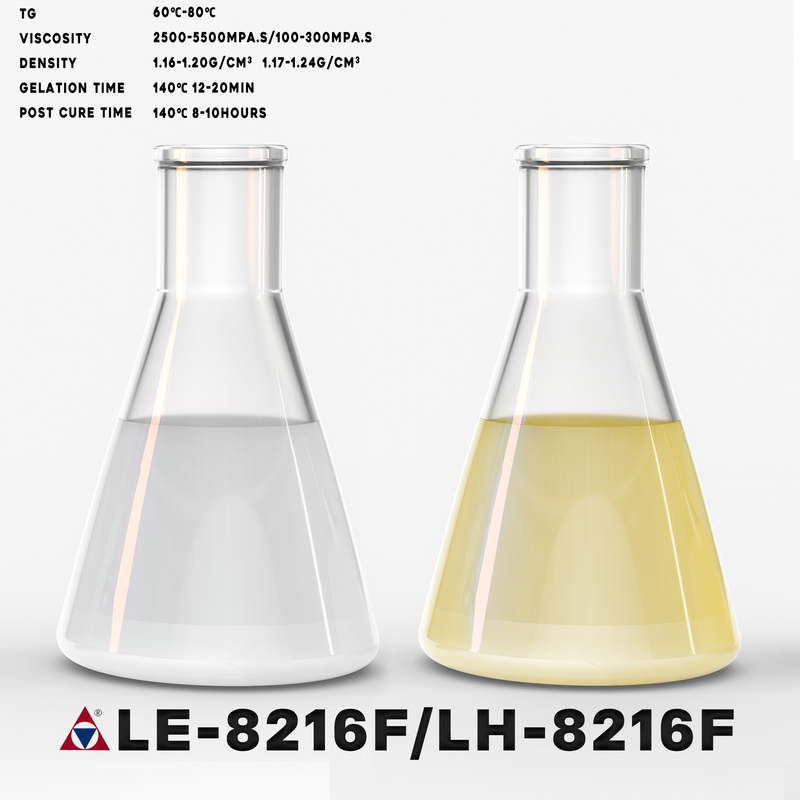

The LE-8216F/LH-8216F is an epoxy resin system engineered for medium/high-voltage electrical insulation (10-66kV). Featuring a modified weather-resistant anhydride hardener (LH-8216F) and low-shrinkage formulation, it delivers exceptional dimensional stability, superior arc resistance, and HB flammability rating. Ideal for vacuum-cast dry-type transformers, CTs/VTs, and critical insulation components.

Key Features & Advantages

Cyclic Aliphatic Epoxy Resin	Superior weather resistance + UV stability
Low Curing Shrinkage (0.9-1.1%)	Precision dimensions for complex HV parts
Thermal Class B (IEC 60085)	Reliable performance up to 130°C
Vacuum Casting Optimized	Seamless integration with existing production
High Dielectric Strength	>25 kV/mm (1mm, IEC 60243-1)
Low Water Absorption	0.08-0.15% (100°C/60min) for humid environments
Solvent-Free + Low VOC	Eco-friendly processing

Applications

Built for high-voltage electrical insulation:

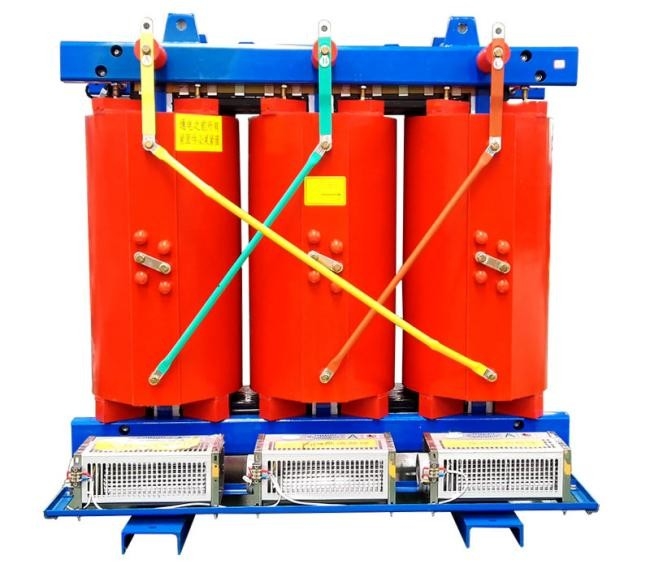

Dry-type transformers
Current/voltage transformers (10-66kV)

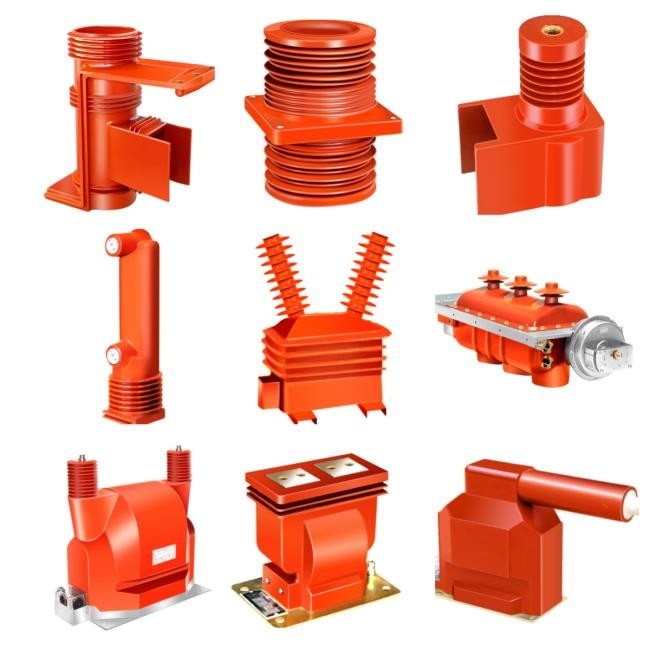

Bushings, insulators, switchgear
Encapsulation of sensors & relays
Grid infrastructure components

Key Performance Data

Cured system: LE-8216F/LH-8216F/Silica powder = 100:100:350

Mechanical & Thermal Properties

Property	Value	Standard
Glass Transition (Tg)	60-75°C	ISO 11357-2
Flexural Strength	100-140 MPa	ISO 178
Impact Strength	9-16 kJ/m²	ISO 179
Tensile Strength	65-85 MPa	ISO 527
Compressive Strength	140-180 MPa	GB/T2567
Thermal Conductivity	0.8-0.9 W/m*K	ISO 8894-1
Decomposition Temp	>320°C	ASTM E2402

Electrical & Safety Properties

Volume Resistivity	10¹⁵ Ω*cm	IEC 62631-3-1
Arc Resistance	181-198 sec	IEC 61621
Tracking Resistance	≥600 V	IEC 60112
Dielectric Constant	3.0-4.0 (50Hz)	IEC 60250
Flammability	HB (UL94)	UL94/GB/T2408
Hydrophobicity	HC1 Class	IEC 62073

Frequently Asked Questions (FAQ)

Q1: What makes LE-8216F suitable for outdoor HV applications?

A: Its cyclic aliphatic structure provides inherent UV/weather resistance, while low water absorption (0.08-0.15%) ensures stability in humid conditions.

Q2: What is the curing process?

A: Optimized for vacuum casting:
Pre-mix: 60-70°C/1-2h (100-300Pa)
Cure: 70-80°C/3-5h → 90-100°C/2-4h → Post-cure 130°C/12h

Q3: How does filler ratio affect properties?

A: Silica powder (300-360 pbw) enhances mechanical strength but must be uniformly dispersed. Adjust within range to balance viscosity vs. performance.

Q4: Is this system compatible with APG?

A: Designed for vacuum casting. For APG, consult Shanghai Wenyou for formulation adjustments.

Q5: What safety measures are critical?

A: Essential PPE: gloves, goggles, respirator. Maintain ventilation (3-5 air renewals/hour). Avoid skin contact--use barrier cream.
