Name: High-Temperature Epoxy Resin System for Electrical Insulation APG & Vacuum Casting
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE-9229/LH-9229
Price: 2.6 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

High-Temperature Epoxy Resin System for Electrical Insulation APG & Vacuum Casting

High-Temperature Epoxy Resin System

Electrical Insulation Epoxy Resin System

APG Epoxy Resin System

Place of Origin:

China

Brand Name:

WENYOU

Certification:

ISO/UL/REACH/RoHS/CE

Model Number:

LE-9229/LH-9229

Request A Quote

Product Details

Color:

Light Yellow, Transparent

Impact Strength:

High

Flexibility:

High

Tensile Strength:

50-60 MPa

Dielectric Strength:

≥ 25 KV/mm

Thermal Decomposition:

＞320°C

Insulation Resistance:

High

Moisture Resistance:

High

Payment & Shipping Terms

Minimum Order Quantity

200kg

Price

around $2.6

Packaging Details

pail

Delivery Time

7 days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

200Ton/month

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

High-Temperature Epoxy Resin System for Electrical Insulation | APG & Vacuum Casting

Attribute	Value
Color	Light Yellow, Transparent
Impact Strength	High
Flexibility	High
Tensile Strength	50-60 MPa
Dielectric Strength	≥ 25 kV/mm
Thermal Decomposition	＞320°C
Insulation Resistance	High
Moisture Resistance	High

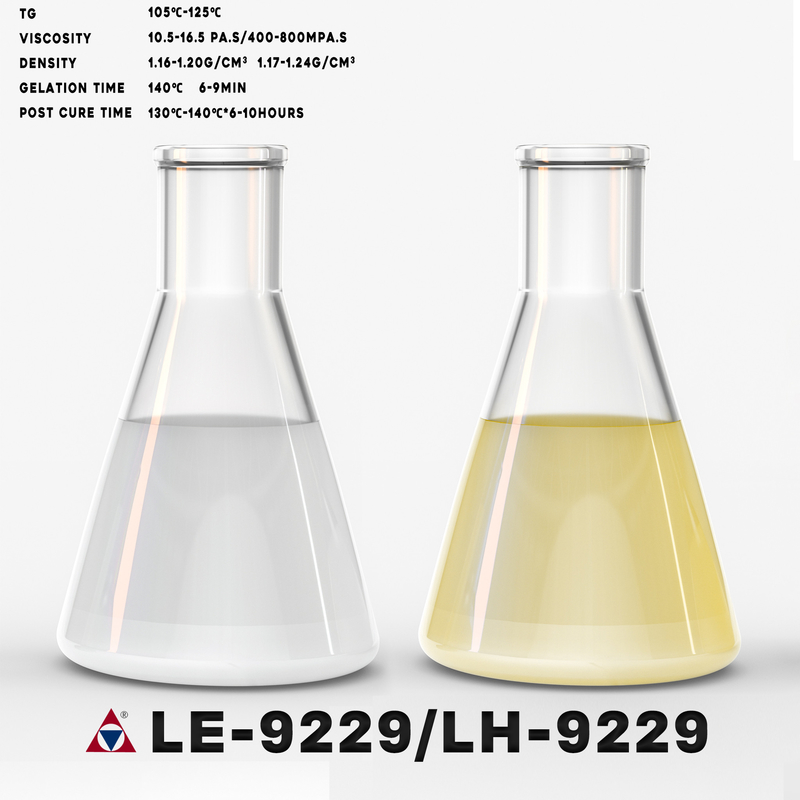

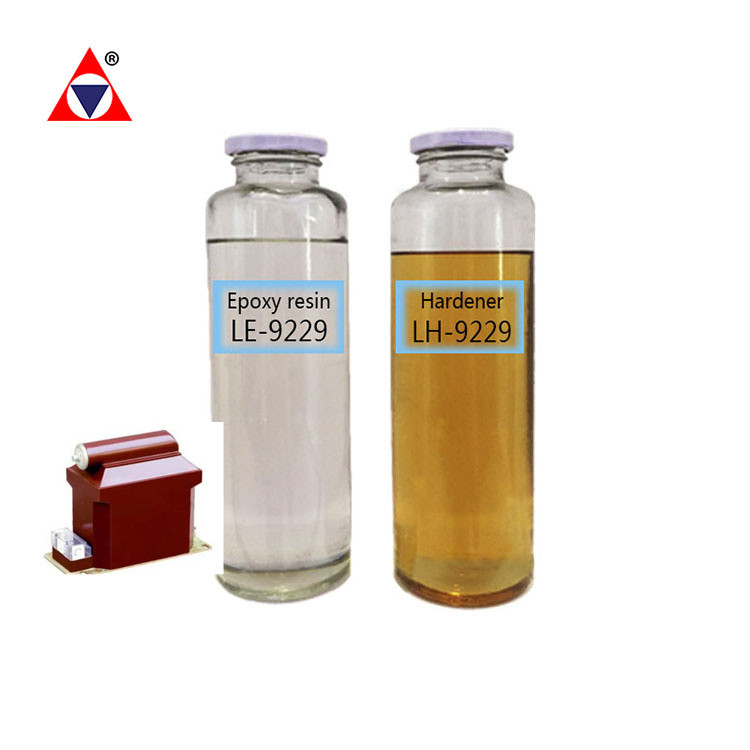

The LE-9229/LH-9229 epoxy resin system is a dual-component, modified rubber-toughened formulation designed for demanding electrical insulation applications. Combining LE-9229 epoxy resin and LH-9229 hardener at a precise 1:1 ratio (100 pbw each) with silica flour filler (280-340 pbw), this system delivers exceptional thermal stability (Tg 105-125°C), crack resistance, and mechanical strength. Ideal for medium/high-voltage insulation (10-35kV), it supports both automatic pressure gelation (APG) and vacuum casting processes, making it suitable for transformers, solid-pole bushings, and switchgear components.

Key Features & Advantages

Ultra-High Thermal Resistance:

Glass transition temperature (Tg): 105-125°C

Thermal decomposition: >320°C

Low water absorption: 0.08-0.20% (23°C to 100°C)
Superior Electrical Insulation:

Volume resistivity: 10¹⁵ Ω*cm

Dielectric strength: 30 kV/mm

Loss factor: 0.02
Robust Mechanical Properties:

Tensile strength: 65-95 MPa

Flexural strength: 110-150 MPa

Impact resistance: 10-18 kJ/m²
Process Flexibility:

Optimized for APG injection (10-30 min gelation) and vacuum casting (3-6 hr cure).

Low curing shrinkage (0.7-0.9%) ensures dimensional stability.

Technical Parameters

Component Properties

Epoxy Resin LE-9229	Hardener LH-9229
Appearance: Milky white, viscous liquid	Appearance: Pale yellow liquid
Viscosity at 25°C: 10.5-16.5 Pa.s	Viscosity at 25°C: 400-800 mPa.s
Density: 1.16-1.20 g/cm³	Density: 1.17-1.24 g/cm³
Flash Point: ~135°C	Flash Point: ~140°C

Cured System Performance

Mechanical	Value	Electrical/Thermal	Value
Tensile Strength	65-95 MPa	Volume Resistivity	10¹⁵ Ω*cm
Flexural Strength	110-150 MPa	Dielectric Strength	30 kV/mm
Compressive Strength	130-190 MPa	Thermal Conductivity	0.8-0.9 W/m*K
Impact Strength	10-18 kJ/m²	Loss Factor	0.02

Processing Guidelines

APG Injection	Vacuum Casting
Mix Temp: 40°C (1-2 hrs)	Mix Temp: 60°C (1-2 hrs)
Mold Temp: 130-150°C	Mold Temp: 80-100°C
Gel Time: 10-30 mins	Gel Time: 3-6 hrs
Post-Cure: 130-140°C × 6-10 hrs	Post-Cure: 130-140°C × 6-10 hrs

Frequently Asked Questions (FAQ)

Q1: What filler is recommended for LE-9229?

A: Use 400-mesh silica flour at 280-340 pbw to enhance mechanical strength and thermal conductivity.

Q2: Can LE-9229 withstand high-voltage environments?

A: Yes, its dielectric strength (30 kV/mm) and volume resistivity (10¹⁵ Ω*cm) make it ideal for 10-35kV insulation.

Q3: How does APG differ from vacuum casting?

A: APG uses pressure (0.5-5 bar) for rapid production (10-30 min gelation). Vacuum casting eliminates bubbles for precision parts but requires longer curing (3-6 hrs).

Q4: Is this system flame-resistant?

A: Yes, rated HB (4mm) and V1 (12mm) under flammability tests.
