Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability

Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability

High Impact Resistance Epoxy Resin Hardener

Low Electrical Loss Electrical Epoxy Resin

Thermal Stability Two-Component Epoxy

Place of Origin:

China

Brand Name:

Wenyou

Certification:

UL/SGS/REACH/RoHS

Model Number:

9218F

Document:

Wenyou catalogue-2024.pdf

Contact Us
Request A Quote
Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability
Product Details
Glass Transition Temperature:
100-120°C
Curing Shrinkage:
0.8-1.0%
Impact Resistance:
10-18kJ/m²
Dissipation Factor:
0.02
Compressive Strength:
150-200 N/mm²
Flexural Strength:
110-140 N/mm²
Highlight:

High Impact Resistance Epoxy Resin Hardener

,

Low Electrical Loss Electrical Epoxy Resin

,

Thermal Stability Two-Component Epoxy

Payment & Shipping Terms
Minimum Order Quantity
240KG
Price
$2.6
Packaging Details
20kg/220kg
Delivery Time
within 10 days
Payment Terms
L/C,T/T
Supply Ability
200Ton/Month
RELATED PRODUCTS
Good price Flame Retardant Epoxy System with High Electrical Insulation for Indoor High-Voltage Insulator online Video

Flame Retardant Epoxy System with High Electrical Insulation for Indoor High-Voltage Insulator

Get Best Price
Good price Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability online

Two-Component Epoxy Resin Hardener for High Impact Resistance and Low Electrical Loss with Thermal Stability

Get Best Price
Good price Low Viscosity UV Stabilized Epoxy Resin for Outdoor Current Transformer Vacuum Casting online

Low Viscosity UV Stabilized Epoxy Resin for Outdoor Current Transformer Vacuum Casting

Get Best Price
Good price Fast Demolding Low Internal Stress APG Epoxy Resin for High Flexibility Electrical Insulation online

Fast Demolding Low Internal Stress APG Epoxy Resin for High Flexibility Electrical Insulation

Get Best Price
Contact Us
008618018933365
Elliot.yang@sh-wysy.com
86-21-64308192
Contact Now
Product Description
Two-Component Epoxy Resin Hardener For CT PT Production

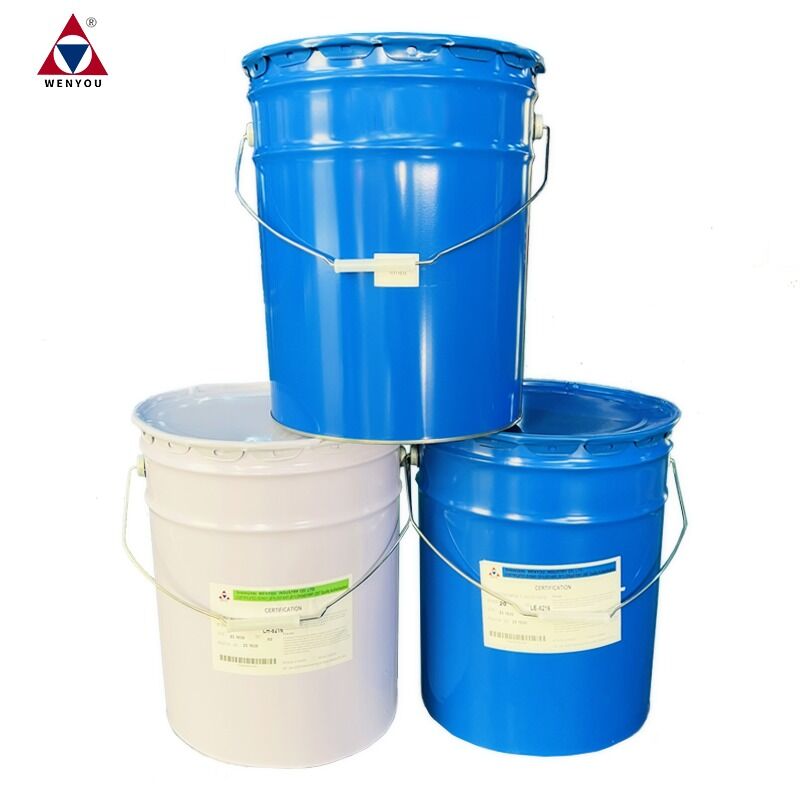

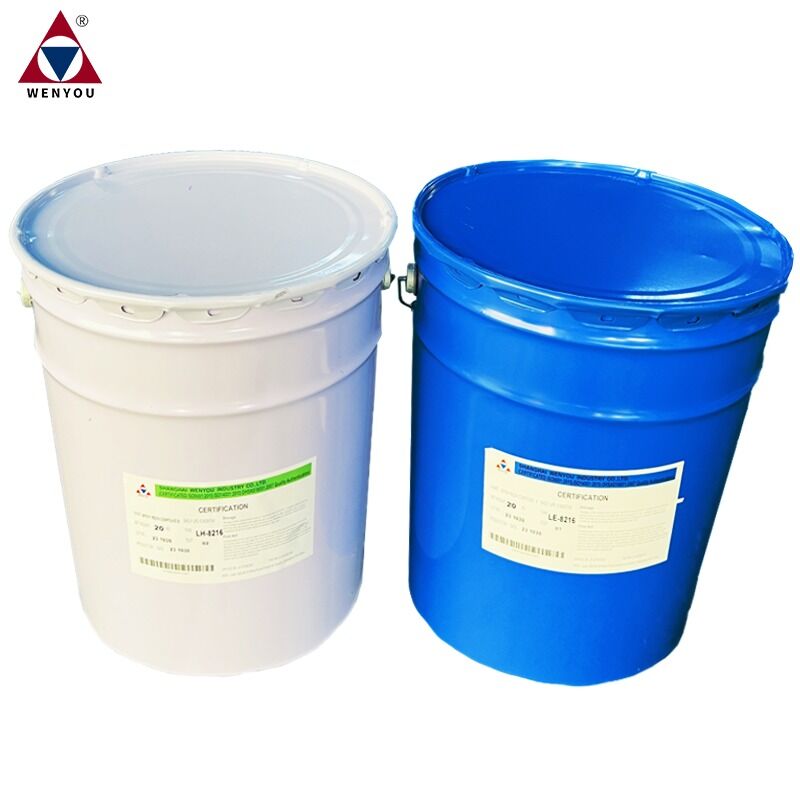

WENYOU 9218 Electrical Epoxy Resin product packaging and material sample
WENYOU 9218 Electrical Epoxy Resin
Premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.
Key Features & Advantages
  • High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
  • Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
  • Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
  • Flame Retardant: HB flammability rating (4mm thickness) enhances safety
  • Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy
Technical Specifications
Property Test Standard Value Range
Compressive Strength ISO604 150-200 N/mm²
Flexural Strength ISO178 110-140 N/mm²
Tensile Strength ISO527 60-85 N/mm²
Epoxy Value ISO3001 4.4-4.9
Density at 25°C ISO1675 1.16-1.2 g/cm³
Dielectric Strength - 20-30 kV/mm
Cure Temperature - 130-140°C
Viscosity at 25°C ISO12058 5.5-8.5 MPa*s
Applications
  • Transformer and bushing insulation
  • Circuit board encapsulation
  • High-voltage cable jointing
  • Switchgear component bonding
  • Aerospace electrical systems
Frequently Asked Questions
What certifications does this resin hold?
REACH/RoHS/UL/SGS certifications with custom compliance options.
What's the minimum order quantity?
240 KG with standard 20KG/220kg packaging.
How soon can orders ship?
Guaranteed dispatch within 10 business days.
Is customization available?
Yes, technical parameters can be adjusted for specialized applications.
What payment methods are accepted?
L/C and T/T transactions.
