Name: Liquid Epoxy Resin for High Voltage Insulation Casting
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE8516X
Price: 2.50 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

Liquid Epoxy Resin for High Voltage Insulation Casting

high voltage epoxy resin

liquid insulation casting resin

electrical epoxy resin for insulation

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Model Number:

LE8516X

Request A Quote

Liquid Epoxy Resin for High Voltage Insulation Casting

Product Details

CAS No.:

3130-19-6

Molecular Formula:

C20H30O6

EINECS No.:

221-518-5

Classification:

Double Components Adhesives

Main Raw Material:

EPOXY

Color:

Light Yellow

Flash Point:

140

Viscosity:

0.4-0.8

Density:

1.17-1.24

Viscosity At 25℃:

1500-3500 Mpa.s

Density At 25℃:

1.16-1.20 G/cm3

Flash Point (ISO):

About 135 ℃

Epoxy Resin:

LE-8516X 100pbw

Hardener:

LH-8516X 100pbw

Accelerator:

LZ-622 0.2-0.4pbw

Payment & Shipping Terms

Minimum Order Quantity

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Liquid Electrical Insulation Epoxy Resin Casting Resin

High-performance bi-component epoxy resin system for medium and high voltage insulation applications, offering excellent splitting resistance and heat shock resistance.

Product Specifications

Attribute	Value
CAS No.	3130-19-6
Other Names	Epoxy resin potting compound
MF	C20H30O6
EINECS No.	221-518-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	Medium & high voltage insulation switch parts
Type	Epoxy resin compound
Color	Light yellow
Flash point	140
Viscosity	0.4-0.8
Density	1.17-1.24

Product Description

Bi-component epoxy resin system/liquid designed for conventional casting processes under vacuum. Features excellent splitting resistance and heat shock resistance with superior technical and mechanical properties.

Primary Applications:

Medium & high voltage insulation switch parts
Insulators for 10kV/35kV systems
Current & voltage transformers
Dry-type transformers

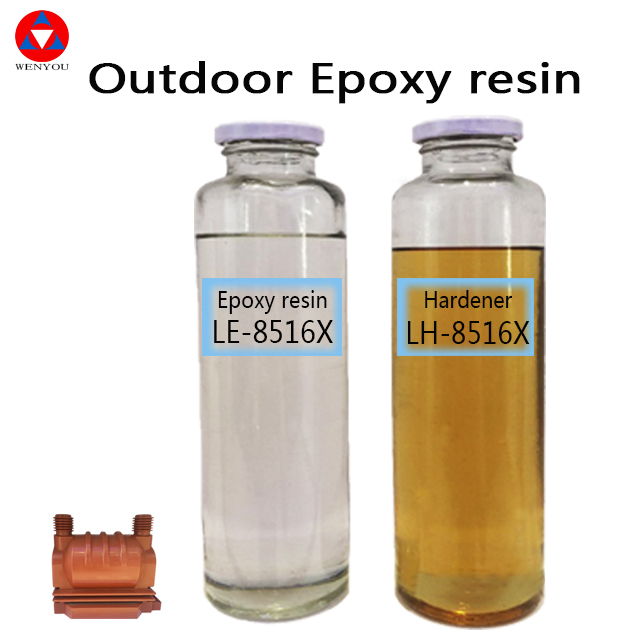

Formulation

Epoxy resin	LE-8516X	100pbw
Hardener	LH-8516X	100pbw
Accelerator	LZ-622	0.2-0.4pbw
Filling	Silica flour (SIO2)	250-350pbw

Product Data (LE-8516X Modified Epoxy Resin)

Properties	Standard	Unit	Value
Viscosity at 25℃	ISO 12058	mpa.s	1500-3500
Density at 25℃	ISO 1675	g/cm3	1.16-1.20
Flash point	ISO 1523	℃	About 135

Product Images

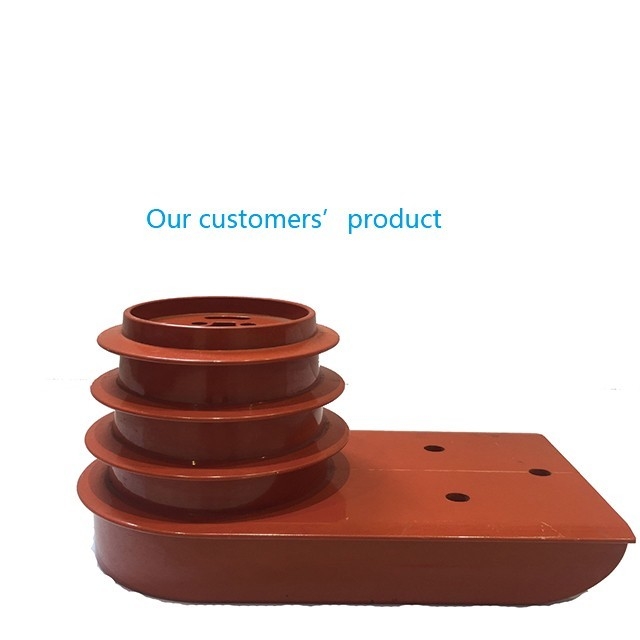

Applications

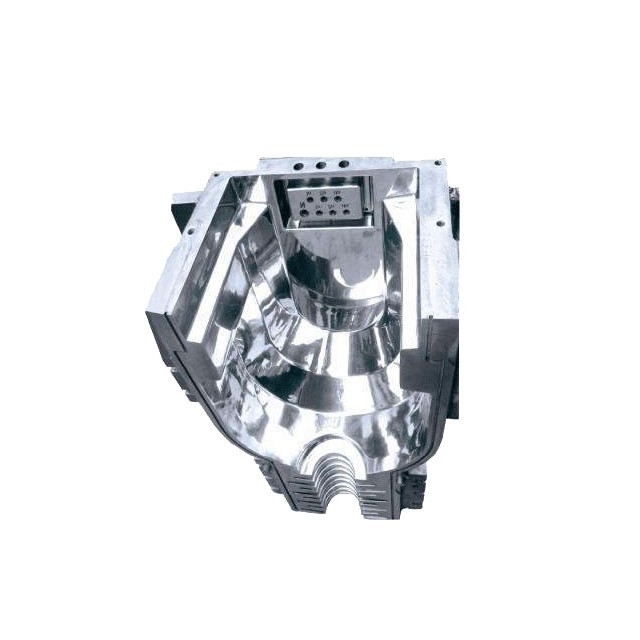

APG Process Applications

Our Company

Shanghai Wenyou Industry Co., Ltd. is a professional epoxy resin company located in Fengxian, Shanghai, China, specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.

We have obtained ISO9001, ISO14001, SGS, and UL certifications, and our products comply with ROHS and REACH safety regulations. Our high-quality products are used in high voltage electrical insulation applications and are exported globally.
