Name: Epoxy Resin for 10-1100KV Electrical Insulation and Transformers
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9217F
Price: 5.00 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

electrical epoxy resin for transformers

10-1100KV insulation epoxy resin

high voltage epoxy resin with warranty

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Model Number:

9217F

Request A Quote

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Product Details

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

26-823-5

Classification:

Double Components Adhesives

Main Raw Material:

EPOXY

Application Process:

APG & Conventional Casting Process Under Vacuum

Glass Transition Temp:

100-120°C

Epoxy Resin:

LE-9217F

Hardener:

LH-9217F

Filling Material:

Silica Flour(SIO2)

Filling Quantity:

320-400pbw

Color Paste:

LC-series

Color Paste Quantity:

3pbw

Package Size 1:

20kg/pail

Package Size 2:

220kg/drum

Payment & Shipping Terms

Minimum Order Quantity

440

Price

$5-5.30

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Low Price Epoxy Resin Raw Material for 10 to 1100KV Insulations

Product Specifications

Attribute	Value
CAS No.	1675-54-3
Other Names	Epoxy resin
MF	C21H24O4
EINECS No.	26-823-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	10~1100kv electrical power insulation
Type	Double-component adhesive
Application process	APG & conventional casting process under vacuum
Package Options	20kg/pail, 220kg/drum, 1200kg/tank

Product Description

Bi-component epoxy resin system in liquid form, suitable for both APG and conventional vacuum casting processes. Features excellent splitting resistance and heat resistance with Tg: 100-120°C.

Applications

Ideal for medium and high voltage insulation switch parts requiring high-temperature resistance, splitting resistance, and good mechanical properties, including:

10KV-35KV current & voltage transformers
Closure poles
Various insulators

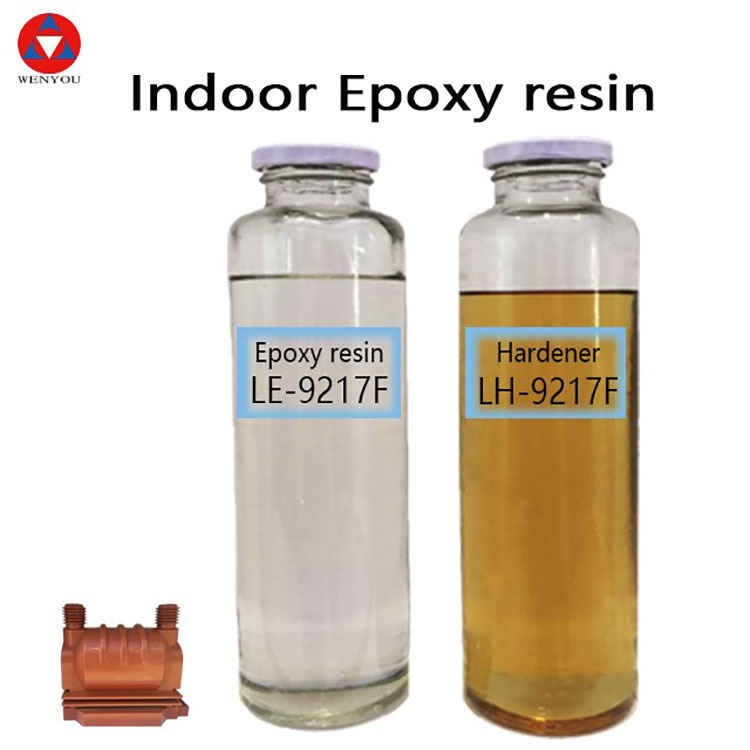

Formulation

Component	Material	Quantity
Epoxy resin	LE-9217F	100pbw
Hardener	LH-9217F	100pbw
Filling	Silica flour(SIO2)	320-400pbw
Color paste	LC-series*	3pbw

Application Examples

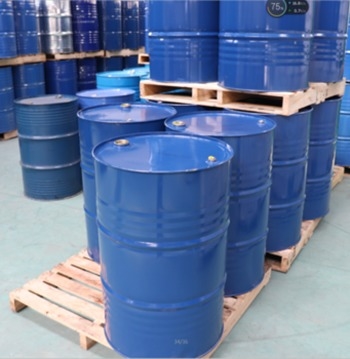

Packaging & Delivery

Available in multiple packaging options:

Epoxy resin: 20Kg/pail, 220Kg/drum, 1200kg/tank
Hardener: 20Kg/pail, 220Kg/drum, 1200kg/tank

Company Profile

Shanghai Wenyou Industry Co., Ltd. specializes in manufacturing, R&D and sales of epoxy resin raw materials and related equipment. Our products are exported worldwide and comply with ISO9001, ISO14001, SGS, UL, ROHS and REACH certifications.

Our epoxy resin materials are widely used in 10-1100KV high voltage electrical insulation applications including high voltage switch insulation parts, mutual inductors, transformers, and reactors.

Our Service

We provide a one-stop solution for power insulation needs worldwide, with comprehensive support and service for all customers.

Frequently Asked Questions

1. If the product accidentally gets in the eye, how to give first aid?

When eyes are contaminated with resin, curing agent or castable, rinse immediately with clean flowing water for 10 to 15 minutes and see a doctor.

2. What kinds of packaging do you have?

Epoxy resin 20 kg/pail or 200 kg/drum, 1200 kg/tank. Curing agent 20 kg/pail or 200 kg/drum, 1200 kg/tank.

3. How to store products?

Store in sealed original containers in a dry environment of 6-35°C. Generally valid for three years when properly stored.

4. What is your production capacity?

We can supply 1800 tons per month, and 20000 tons annually.
