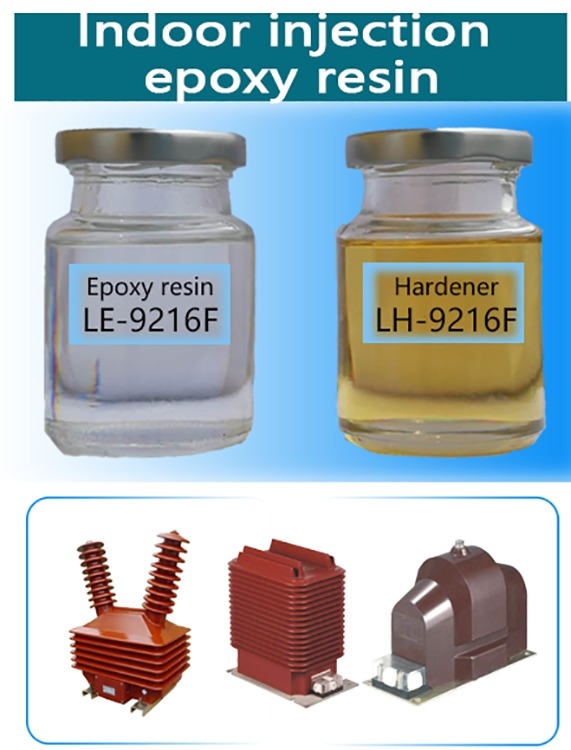

High Quality Epoxy Resin and Hardener for Current and Voltage Transformers
Product Specifications
| CAS No. |
1675-54-3 |
| Other Names |
Epoxy resin potting compound |
| MF |
C21H24O4 |
| EINECS No. |
26-823-5 |
| Classification |
Double Components Adhesives |
| Main Raw Material |
Epoxy resin |
| Usage |
Electrical insulation |
| Type |
Insulation material, resine epoxy liquid |
| Color |
Clear epoxy resin |
Formulation
| Component |
Type |
Quantity |
| Epoxy resin |
LE-9216F |
100pbw |
| Hardener |
LH-9216F |
100pbw |
| Filling |
Silica flour (SIO2) |
320-380pbw |
| Color paste |
LC-series |
3pbw |
Company Information
Shanghai Wenyou Industry Co., Ltd. is located in Fengxian District, Shanghai, China. The company specializes in manufacturing, research and development, and sales of epoxy resin, insulation materials, transformers, and supporting production equipment and molds. Our products are sold throughout China and exported to Europe, Southeast Asia, the Middle East, Russia, and other CIS countries.
The company has passed ISO9001 and ISO14001 management system certifications, European Union "SGS" certification, and US UL certification. Our epoxy products are widely used in indoor and outdoor 10-1100KV high voltage electrical insulation applications.
Wenyou is based in China, serving the global electricity industry by providing stable products and high quality service worldwide.
Frequently Asked Questions
1. If the product accidentally gets in the eye, how to give first aid?
When eyes are contaminated with resin, curing agent or castable, rinse them immediately with clean flowing water for 10 to 15 minutes. See a doctor. First aid materials that are stained or splashed on the skin should be erased, and then the contaminated areas should be cleaned with running water. If you have severe pain or burns, see a doctor. Dirty clothes should be replaced immediately. Remove outdoors immediately because of discomfort caused by inhaling steam. If you have any questions, please ask for medical help.
2. What kinds of packaging do you have?

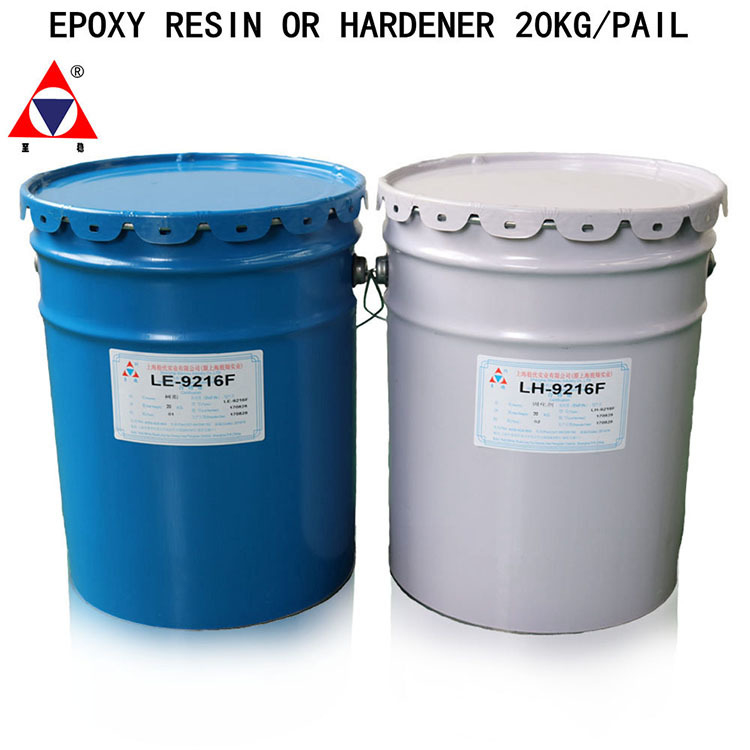

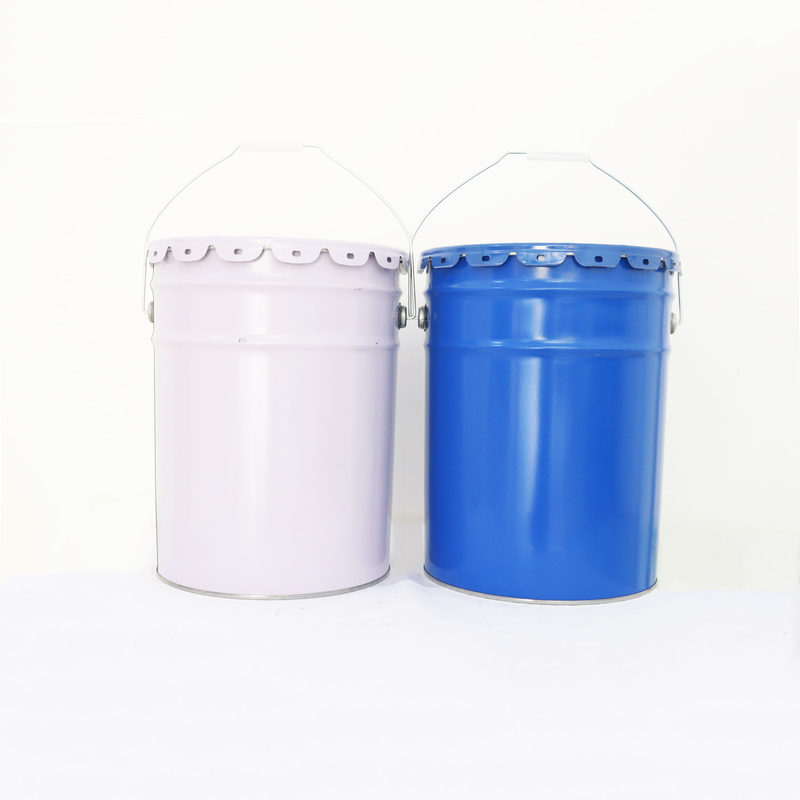

Resin 20kg/barrel or 240kg/barrel, 1.2 tons/barrel, curing agent 20kg/barrel or 240kg/barrel, 1.2 tons/barrel.
3. How to store products?
Products should be stored in sealed and tightened original containers in a dry environment of 6-35 degrees Celsius. Under these conditions, the storage period should be based on the date indicated on the label of the storage package (generally valid for three years). After that date, the product will be tested to determine whether it is still valid. If only part of the material in the container is used, it should be sealed and tightened immediately.
4. What test equipment do you have?
Pendulum Impact Tester, Electrical Universal Testing Machine, Horizontal Vertical Combustion Tester, Low Temperature Test Chamber, High Voltage Scratch Tester, Electric Thermostatic Drier, DSC Thermal Analyzer, Insulation Electrical Performance Test Chamber.
5. Could you offer the samples for free?
Yes, we can supply the first samples for customers. The quantity needs to be communicated with customers. The shipping charges need to be paid by customer.
