Name: Electrical Epoxy Resin Potting Compound for Insulation and Transformers
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9278
Price: 2.50 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

Electrical Epoxy Resin Potting Compound for Insulation and Transformers

electrical epoxy resin potting compound

epoxy resin for transformers

insulating epoxy potting compound

Place of Origin:

Shanghai, China

Brand Name:

wenyou

Model Number:

9278

Request A Quote

Electrical Epoxy Resin Potting Compound for Insulation and Transformers

Product Details

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

216-823-5

Viscosity At 25℃:

7500-12000 MPa.s

Density At 25℃:

1.16-1.20 G/cm3

Flash Point:

About 135℃

Tensile Strength:

65-85N/mm2

Flexural Strength:

100-140N/mm2

Compressive Strength:

140-180N/mm2

Impact Strength:

9-16kJ/m2

Curing Shrinkage:

0.8-1.0%

Thermal Conductivity:

0.8-0.9W/mk

Thermal Decomposition:

＞320℃

Surface Resistivity:

1014Ω

Volume Resistivity:

1015Ω.cm

Payment & Shipping Terms

Minimum Order Quantity

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Wholesale Electrical Epoxy Resin for Electrical Insulation and Dry Transformer

Product Specifications

Attribute	Value
CAS No.	1675-54-3
Other Names	epoxy resin potting compound
MF	C21H24O4
EINECS No.	216-823-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	electrical insulation and dry transformer
Type	Epoxy resin potting compound
Color	liquid

Product Description

Bi-component epoxy resin system (liquid) designed for conventional casting processes under vacuum. Features excellent splitting resistance, heat shock resistance, and superior technical/mechanical properties.

Formulation

Component	Type	Quantity
Epoxy resin	LE-9287	100pbw
Hardener	LH-9287	100pbw
Filling	Silica flour (X10)	280-350pbw
Color paste	LC-series	3pbw

Applications

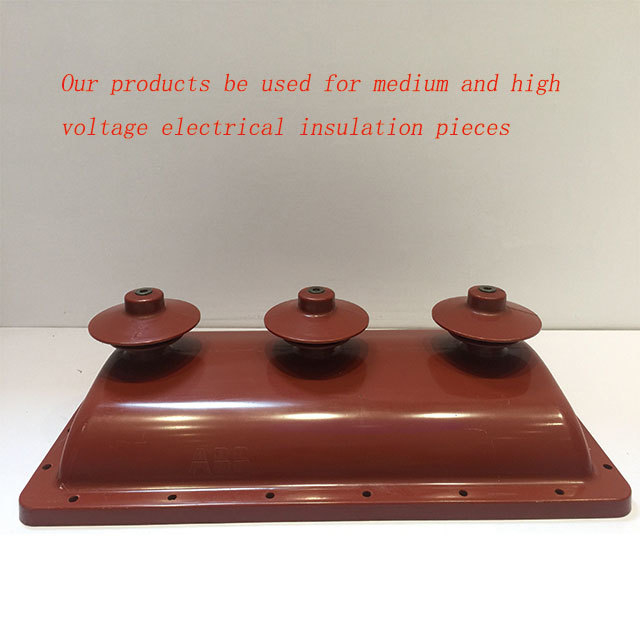

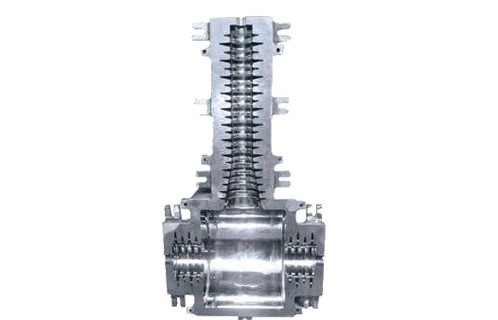

Ideal for medium and high voltage insulation switch parts including insulators, 10kV/35kV current & voltage transformers, and dry-type transformers.

Technical Parameters

Properties	Unit	Value
Appearance	Visual	Transparent viscous liquid
Viscosity at 25℃	mPa.s	7500-12000
Density at 25℃	g/cm3	1.16-1.20
Flash point	℃	about 135

Mechanical and Physical Properties

Property	Value
Tg (DSC)	75-95℃
Tensile strength	65-85N/mm2
Flexural strength	100-140N/mm2
Compressive strength	140-180N/mm2
Dielectric strength	30 kV/mm

Packing & Delivery

Our products feature fully automated packaging and secure transportation methods to ensure product safety during delivery.

Company Profile

Shanghai Wenyou Industry Co., Ltd. is a professional epoxy resin manufacturer based in Fengxian, Shanghai, China. We specialize in the R&D, manufacturing, and sales of epoxy resin, curing agents, and related products for high voltage electrical insulation applications.
