Name: APG Process Epoxy Resin for Transformer CT PT Injection
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE-9217K
Price: 2.60 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

APG Process Epoxy Resin for Transformer CT PT Injection

epoxy resin for transformer injection

electrical epoxy resin for CT PT

transformer epoxy resin with warranty

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Model Number:

LE-9217K

Request A Quote

APG Process Epoxy Resin for Transformer CT PT Injection

Product Details

CAS No.:

26590-20-5

Molecular Formula:

C9H10O3

EINECS No.:

247-830-1

Type:

Double Components Adhesives

Purity:

Liquid Epoxy Resin

Mix Temperature:

40°C/1-2hours

Feeding Pressure:

0.5-5bar

Mold Temperature:

130-150 °C

Gelation Time:

10-30mins

Cure Conditions:

130-140°C*6-10hours

Appearance:

Colourless Liquid

Hardener:

LH-9214V

Main Raw Material:

Resin

Process:

APG Process

Glass Transition Temp:

70-125°C (varies By Model)

Payment & Shipping Terms

Minimum Order Quantity

220

Price

$2.60-3

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Epoxy Resin Liquid of Transformer CT PT Via APG Injection Process

Product Specifications

Attribute	Value
CAS No.	26590-20-5
Other Names	Epoxy Resin Potting Compound
MF	C9H10O3
EINECS No.	247-830-1
Type	Double Components Adhesives
Purity	Liquid Epoxy Resin
Mix temperature	40°C/1-2hours
Feeding process	pressure(0.5-5bar)
Mold temperature	130-150 °C
Gelation times	10-30mins
Cure conditions	130-140°C*6-10hours
Appearance	Colourless Liquid
Hardener	LH-9214V
Application	Bushings, Insulators etc.
Main Raw Material	Resin
Other	APG Process

Product Models

Process Type	Model	TG Range	Application
Indoor injection epoxy resin APG process	9216F	70-90℃	Apply to 10-35kv Mutual inductor, etc.
	9217F	80-100℃	Apply to 10-35kv Mutual inductor, etc.
	9287F	90-110℃	Apply to 10-35kv Insulation, etc.
	9214F	90-110℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9218F	100-120℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9219F	100-120℃	Apply to 10-35kv Insulation, etc.

Product Applications

Our Epoxy Resin Raw Material is suitable for 10~1100KV Electrical Insulation Components!

Company Information

Wenyou is one of the leading electrical insulating materials companies in China. Continual research and development, state of the art production facility, quality products, competent services, and countrywide operations have made it warmly acceptable to the customers. Main products include: epoxy resin, flame retardant resin, curing agent, outdoor modifier, toughening agent, epoxy paste, demoulding agent and filler, which sold in China and all over the world, especially to Europe, Southeast Asia, Middle East region.

Wenyou was established in 2008 as a private limited business enterprise. It is powered by many skilled manpower of which some are graduated engineers some are senior industry experts. The relentless efforts and dedication of these people are providing continual help to improve technology to innovate and develop new products, just in time delivery, pre and post sales services to maintain a long term business relationship with the customers. Wenyou has passed management system of ISO9001, ISO14001 and ISO18001, the European Union "SGS", and the United States UL certification. All kinds of electrical components and products can be applied to vacuum pressure casting technology and APG technology.

Our monthly productivity is about 1800 tons. Our group is your reliable partner in offering standard as well as tailor-made solutions to face such production requirements at the highest level of quality.

Packaging & Shipping

Mainly 3 Kinds of Unit Package

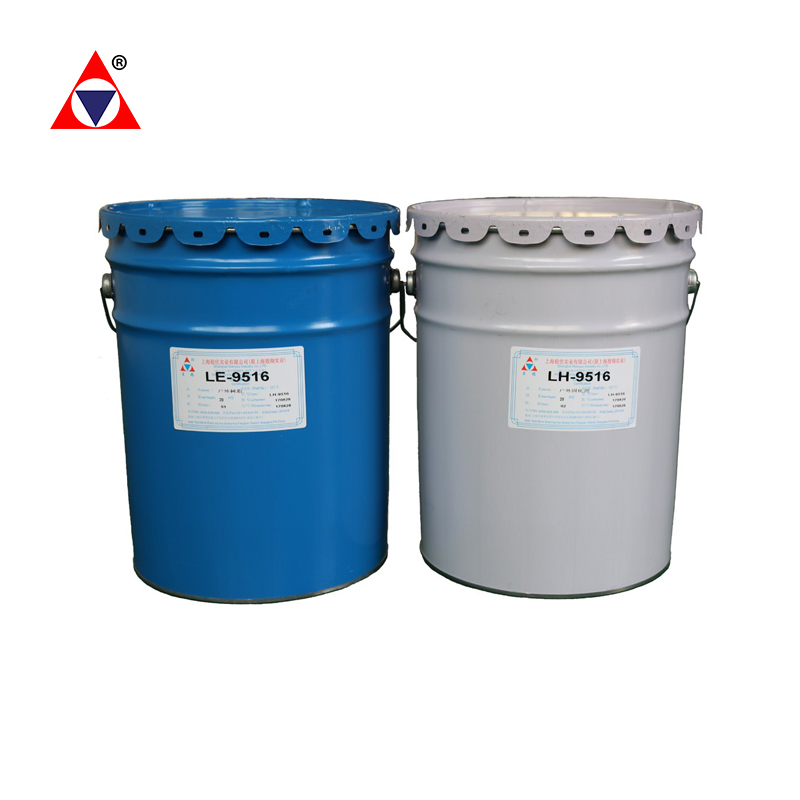

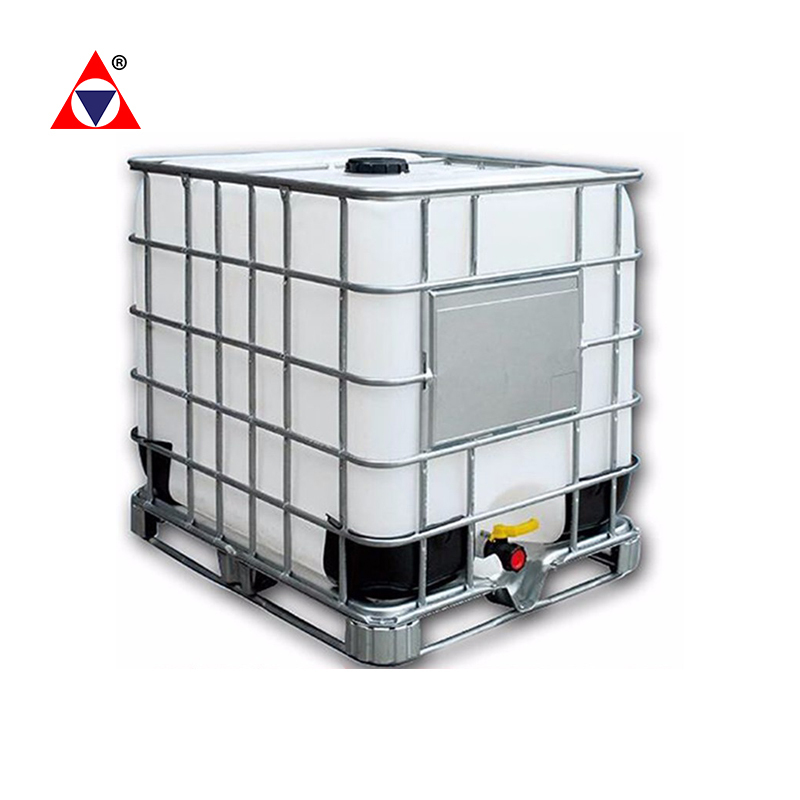

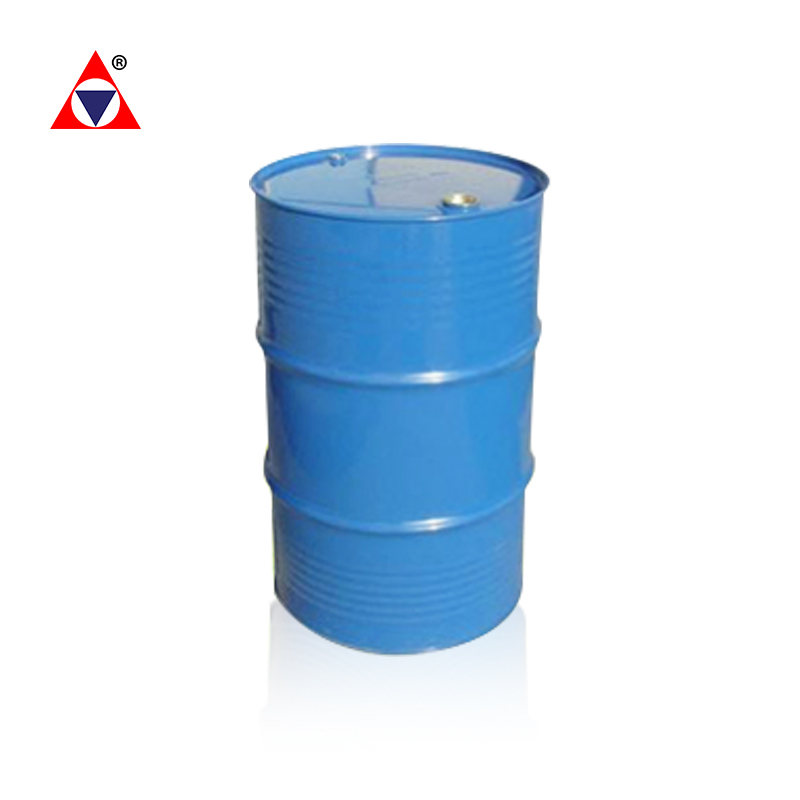

Epoxy Resin or Hardener 20kg/Pail, 220kg/Pail, 1200kg/Pail

FAQ

1. If the product accidentally gets the eye, how to give first aid?

When eyes are contaminated with resin, curing agent or castable, rinse them immediately with clean flowing water for 10 to 15 minutes. See a doctor. First aid materials that are stained or splashed on the skin should be erased, and then the contaminated areas should be cleaned with running water. If you have severe pain or burns, see a doctor. Dirty clothes should be replaced immediately. Remove outdoors immediately because of discomfort caused by inhaling steam. If you have any questions, please ask for medical help.

2. What kinds of packaging do you have?

Resin 20kg/barrel or 240kg/barrel, 1.2 tons/barrel, curing agent 20kg/barrel or 240kg/barrel, 1.2 tons/barrel.
