Name: BPA Epoxy Resin for Electrical Insulation APG Process
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE-9214F
Price: 2.70 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

BPA Epoxy Resin for Electrical Insulation APG Process

BPA epoxy resin for APG process

electrical insulation epoxy resin

BPA epoxy resin with warranty

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Model Number:

LE-9214F

Request A Quote

BPA Epoxy Resin for Electrical Insulation APG Process

Product Details

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

216-823-5

Resin Type:

Modified BPA Epoxy Resin

Purity:

Epoxy Resin Liquid

Mix Temperature:

40°C/1-2hours

Feeding Pressure:

0.5-5bar

Mold Temperature:

130-150°C

Gelation Time:

10-30mins

Cure Conditions:

130-140°C*6-10hours

Appearance:

Colourless Liquid

Hardener Model:

LH-9214F

Glass Transition Temp:

70-125℃ (varies By Model)

Flame Retardancy:

V0 (3-12mm Thickness)

Voltage Application:

10-35kV

Payment & Shipping Terms

Minimum Order Quantity

220

Price

$2.70-3.50

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Indoor Casting Epoxy Resin and Hardener

Product Specifications

Attribute	Value
CAS No.	1675-54-3
Other Names	Epoxy Resin
MF	C21H24O4
EINECS No.	216-823-5
Type	Modified BPA Epoxy Resin
Purity	Epoxy Resin Liquid
Mix temperature	40°C/1-2hours
Feeding process	pressure(0.5-5bar)
Mold temperature	130-150 °C
Gelation times	10-30mins
Cure conditions	130-140°C*6-10hours
Appearance	Colourless Liquid
Hardener	LH-9214F
Application	electrical insulation
Other	APG Process

Product Models

Process Type	Model	TG Range	Application
Indoor injection epoxy resin APG process	9216F	70-90℃	Apply to 10-35kv Mutual inductor, etc.
	9217F	80-100℃	Apply to 10-35kv Mutual inductor, etc.
	9287F	90-110℃	Apply to 10-35kv Insulation, etc.
	9214F	90-110℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9218F	100-120℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9219F	100-120℃	Apply to 10-35kv Insulation, etc.

Product Applications

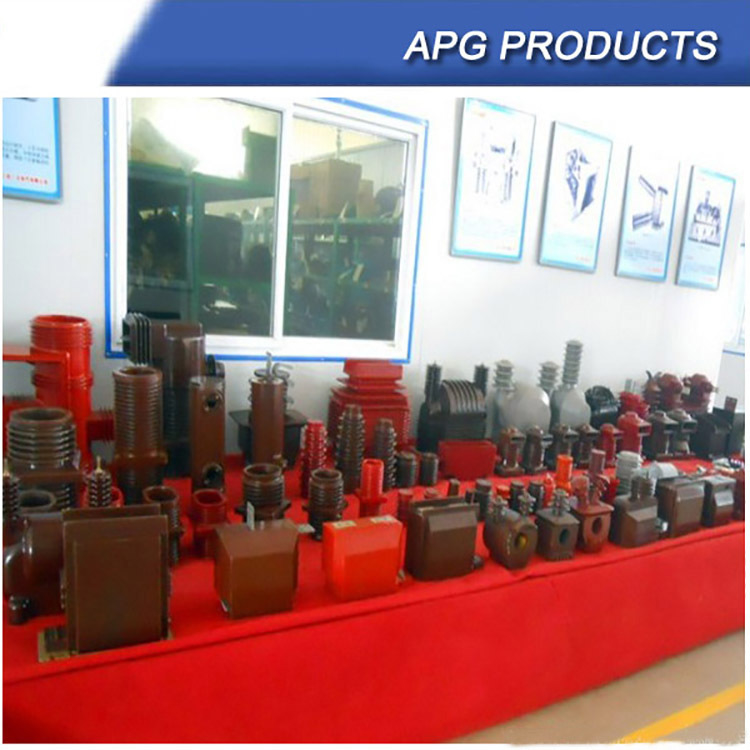

Our Epoxy Resin Raw Material is suitable for 10~1100KV Electrical Insulation Components!

Company Information

Wenyou is one of the leading electrical insulating materials companies in China. Continual research and development, state of the art production facility, quality products, competent services, and countrywide operations have made it warmly acceptable to the customers. Main products include: epoxy resin, flame retardant resin, curing agent, outdoor modifier, toughening agent, epoxy paste, demoulding agent and filler, which sold in China and all over the world, especially to Europe, Southeast Asia, Middle East region.

Wenyou was established in 2008 as a private limited business enterprise. It is powered by many skilled manpower of which some are graduated engineers some are senior industry experts. The relentless efforts and dedication of these people are providing continual help to improve technology to innovate and develop new products, just in time delivery, pre and post sales services to maintain a long term business relationship with the customers. Wenyou has passed management system of ISO9001, ISO14001 and ISO18001, the European Union "SGS", and the United States UL certification. All kinds of electrical components and products can be applied to vacuum pressure casting technology and APG technology.

Our monthly productivity is about 1800 tons. Our group is your reliable partner in offering standard as well as tailor-made solutions to face such production requirements at the highest level of quality.

Certifications

Our Team

Work Shop

Packaging & Shipping

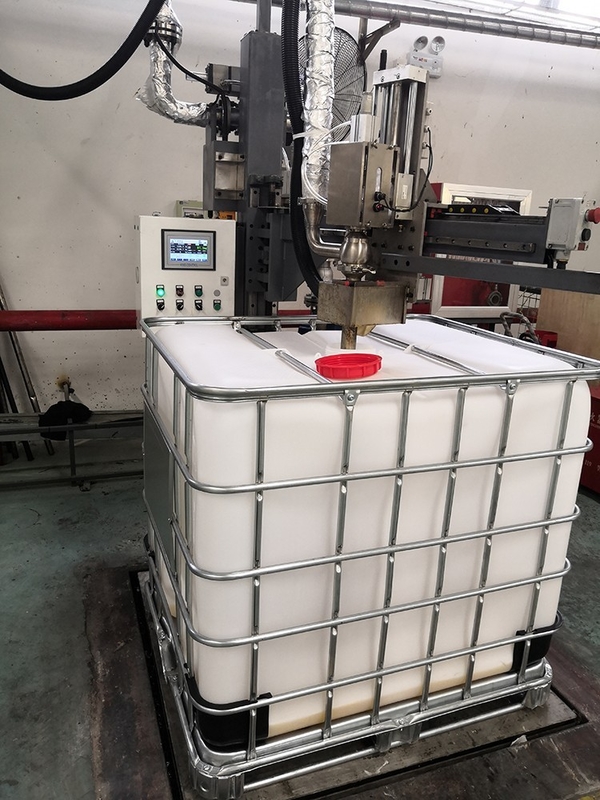

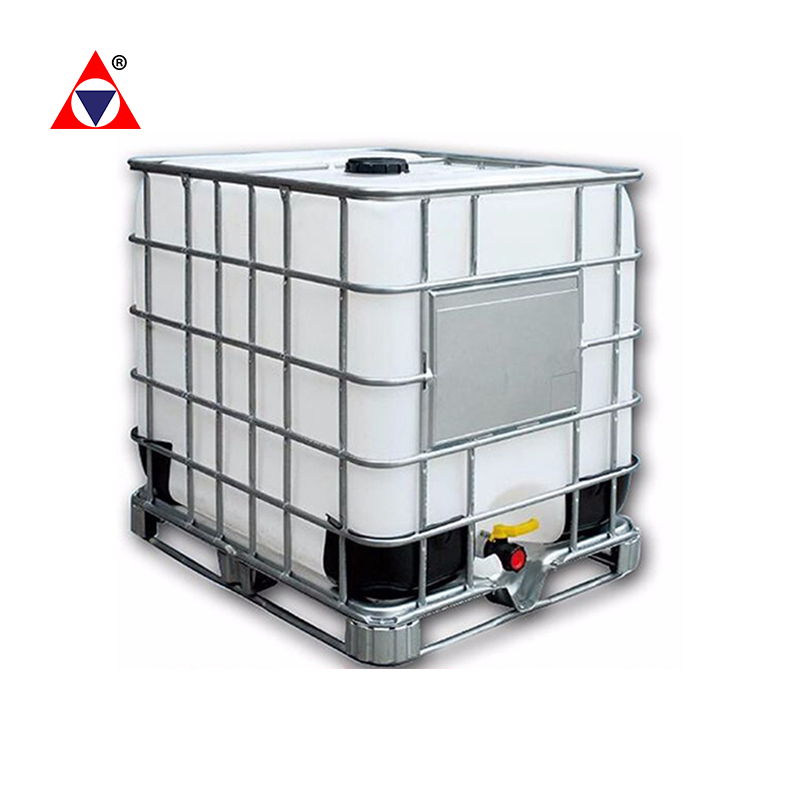

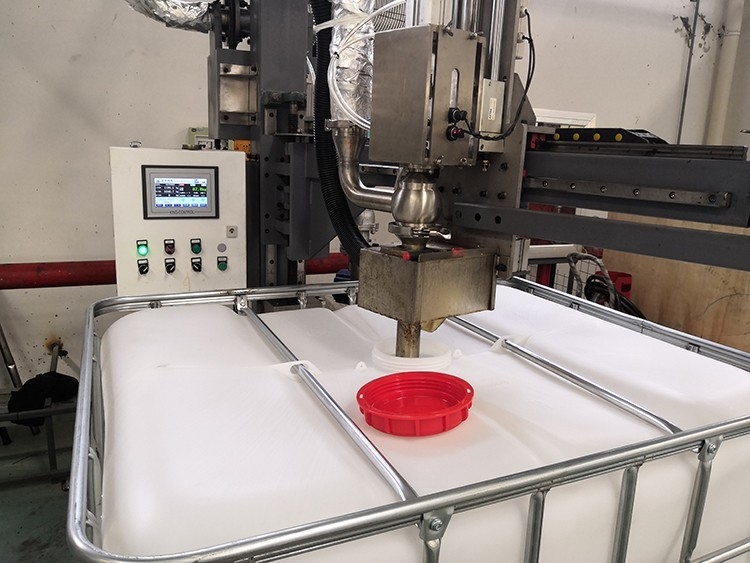

Mainly 3 Kinds of Unit Package

Epoxy Resin or Hardener 20kg/Pail, 220kg/Pail, 1200kg/Pail

Our Services

Our Customers

FAQ

1. If the product accidentally gets the eye, how to give first aid?

When eyes are contaminated with resin, curing agent or castable, rinse them immediately with clean flowing water for 10 to 15 minutes. See a doctor. First aid materials that are stained or splashed on the skin should be erased, and then the contaminated areas should be cleaned with running water. If you have severe pain or burns, see a doctor. Dirty clothes should be replaced immediately. Remove outdoors immediately because of discomfort caused by inhaling steam. If you have any questions, please ask for medical help.

2. What kinds of packaging do you have?

Resin 20kg/barrel or 240kg/barrel, 1.2 tons/barrel, curing agent 20kg/barrel or 240kg/barrel, 1.2 tons/barrel.

3. How to store products?

Products should be stored in sealed and tightened original containers in a dry environment of 6-35 degrees Celsius. Under these conditions, the storage period should be based on the date indicated on the label of the storage package (generally valid for three years). After that date, the product will be tested to determine whether it is still valid. If only part of the material in the container is used, it should be sealed and tightened immediately.

4. What test equipment you have?

Pendulum Impact Tester Electrical Universal Testing Machine Horizontal Vertical Combustion Tester Low Temperature Test Chamber High Voltage Scratch Tester Electric Thermostatic Drier DSC Thermal Analyzer Insulation Electrical Performance Test Chamber

5. Could you offer the samples as free?

Yes. We can supply the first samples for customers. The quantity need to communicate with customers. The shipping charges need to be paid by customer.
