Product Description

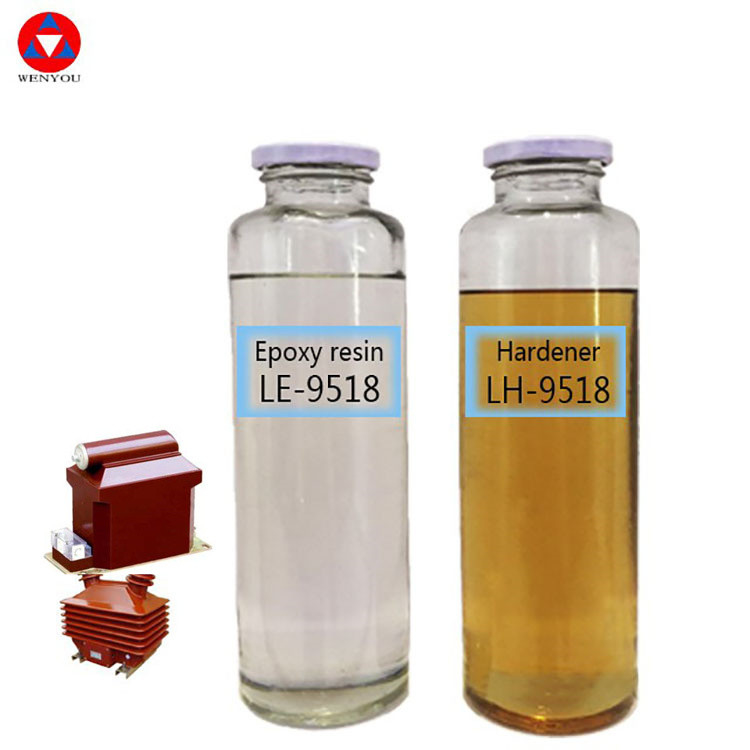

Outdoor Epoxy Resin & Hardener | UV-Resistant High-Voltage Insulation for APG & Casting

Product Overview

The LE-9518/LH-9518 Outdoor Epoxy Resin System is a premium two-component, non-premixed solution engineered for demanding outdoor electrical insulation applications. Designed for both Automatic Pressure Gelation (APG) and Vacuum Casting processes, this hot-curing epoxy resin delivers exceptional resistance to UV radiation, thermal shock, and environmental stress cracking.

Key Features & Advantages

Extreme Weather Resistance: Superior UV stability and thermal shock resilience (-40°C to 150°C)
High Dielectric Performance: Critical for 35kV+ outdoor insulation systems
Dual-Process Compatibility: Optimized for APG (fast curing) and vacuum casting (precision molding)
Low Volatility: Vapor pressure <0.01 Pa (resin) and 0.5 Pa (hardener) enhance workplace safety
Mechanical Robustness: Withstands high mechanical stress in power infrastructure

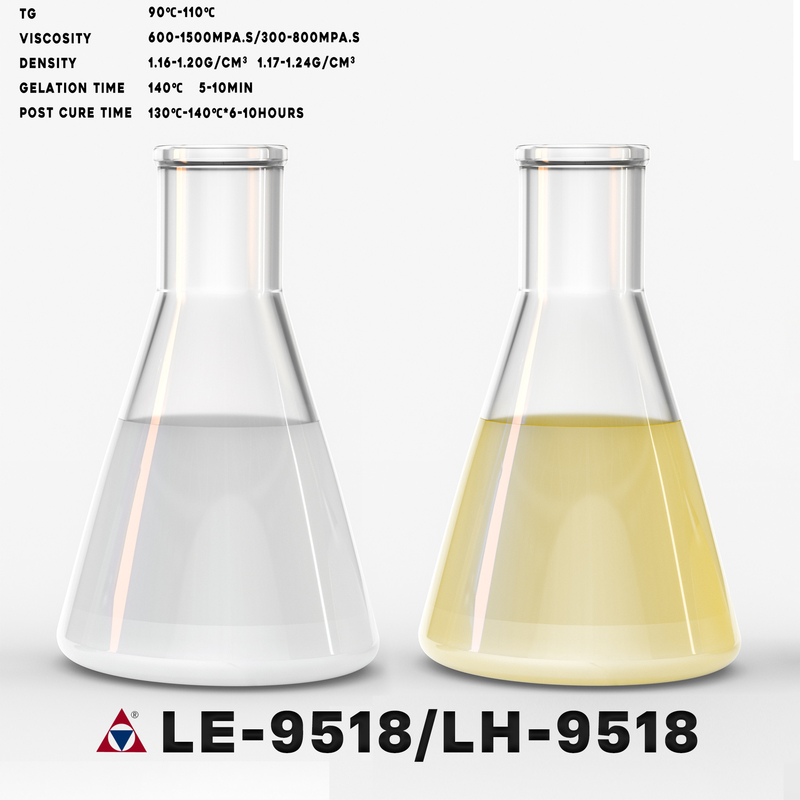

Technical Specifications

Property	LE-9518 Resin	LH-9518 Hardener
Appearance	Transparent, viscous liquid	Transparent, light yellow liquid
Viscosity @25°C	600-1500 mPa*s	300-800 mPa*s
Epoxy Value	5.0-5.9 Eq/kg	-
Density @25°C	1.16-1.20 g/cm³	1.17-1.24 g/cm³
Flash Point	~135°C	~140°C
Vapor Pressure @25°C	<0.01 Pa	~0.5 Pa

Processing Parameters

Method	Mixing Temp	Mold Temp	Gel Time	Post-Cure
APG Injection	40°C (1-2 hrs)	130-150°C	10-30 min	130-140°C × 6-10 hrs
Vacuum Casting	60°C (1-2 hrs)	80-100°C	3-6 hrs	130-140°C × 6-10 hrs

Applications

High-Voltage Insulators: Resists tracking and erosion under pollution
Transformer Encapsulation: Protects CT/VT coils from moisture and salt spray
Embedded Poles: Ensures structural integrity in coastal/industrial zones
Renewable Energy Components: Wind turbine sensors, solar farm switchgear

Frequently Asked Questions

Q: What certifications does this epoxy system hold?

A: Complies with IEC standards for outdoor electrical insulation (custom certifications available).

Q: Can filler be added?

A: Yes, silica fillers (e.g., 300-400 phr) enhance mechanical strength.

Q: Is it suitable for salt-heavy environments?

A: Yes, exceptional corrosion and salt-fog resistance.

Q: Minimum order quantity (MOQ)?

A: 10KG (20/220/1200KG drum options).
