Name: High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9218F
Price: 2.6 USD
Availability: InStock

Home > Products > Electrical Epoxy Resin >

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

18kJ/m² Electrical Epoxy Resin

Low Loss Factor Electrical Epoxy Resin

9218 Electrical Epoxy Resin

Place of Origin:

China

Brand Name:

Wenyou

Certification:

UL/SGS/REACH/RoHS

Model Number:

9218F

Document:

Wenyou catalogue-2024.pdf

Request A Quote

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Product Details

Apply:

High Voltage Transformer

Flexibility:

High

Curing Shrinkage:

0.8-1.0%

Application:

Electrical Insulation

Usage:

Eletric Insulation

Glass Transition Temperature:

100-120°C

Payment & Shipping Terms

Minimum Order Quantity

240KG

Price

$2.6

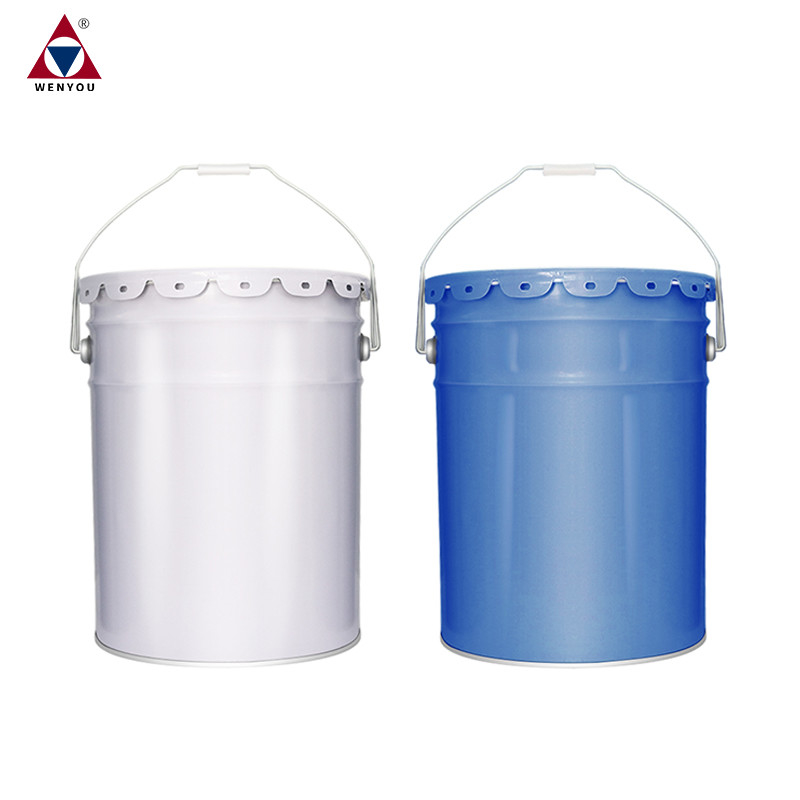

Packaging Details

20kg/220kg

Delivery Time

within 10 days

Payment Terms

L/C,T/T

Supply Ability

200Ton/Month

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Get Best Price

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Get Best Price

Video

Flame Retardant Epoxy Resin Potting Compound with 10-35kV Electrical Insulation and Modified Saturated Epoxy Resin

Get Best Price

Electrical Insulation Epoxy Resin and Liquid Mold Electrical Insulation Epoxy Resin for Medium&high Voltage Transformer

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

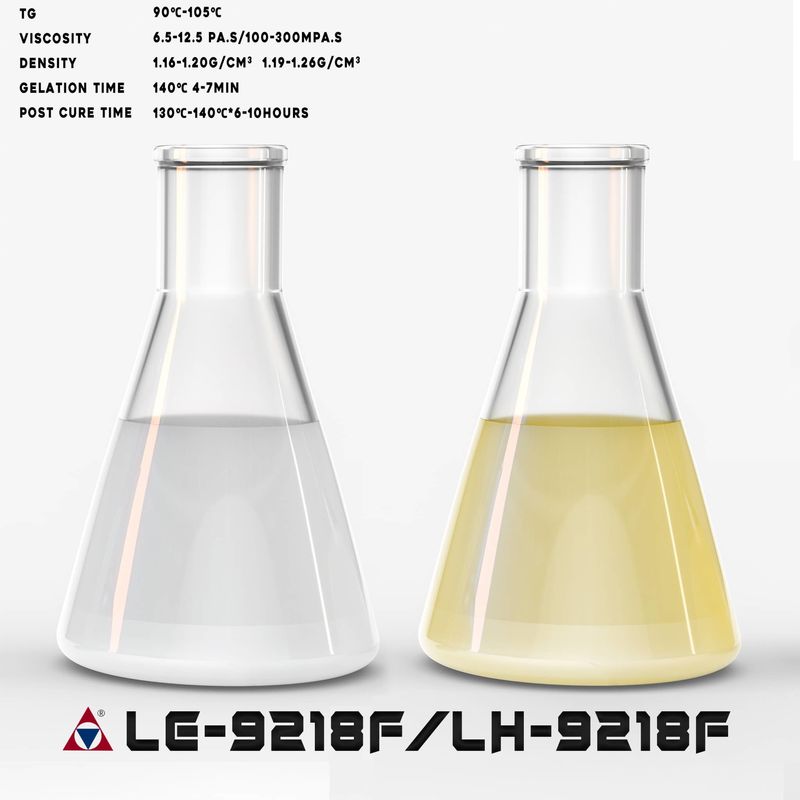

WENYOU 9218 Electrical Epoxy Resin

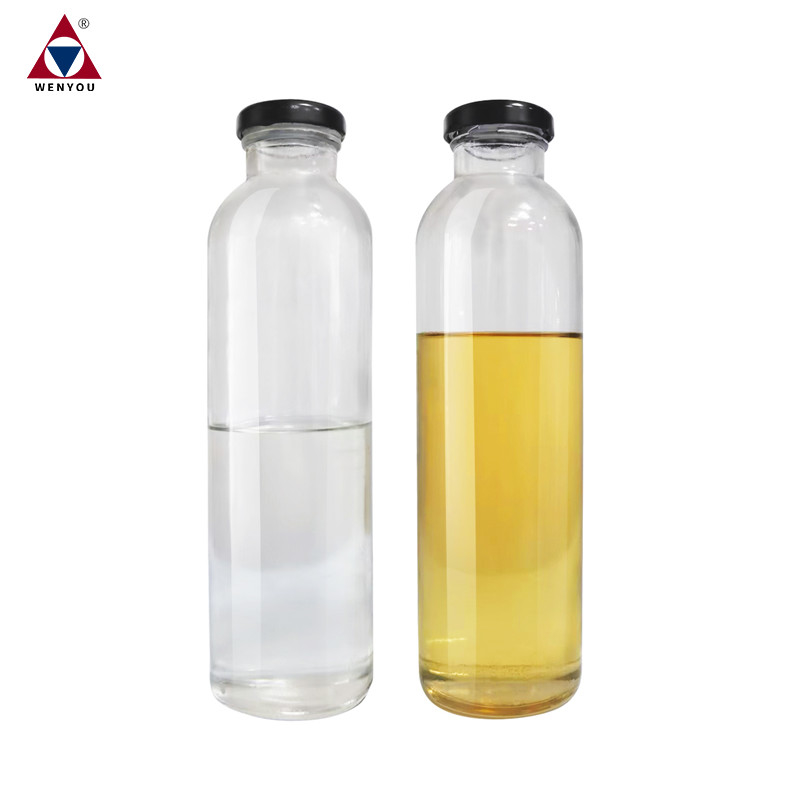

Premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages

High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
Flame Retardant: HB flammability rating (4mm thickness) enhances safety
Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications

Property	Test Standard	Value Range
Compressive Strength	ISO604	150-200 N/mm²
Flexural Strength	ISO178	110-140 N/mm²
Tensile Strength	ISO527	60-85 N/mm²
Epoxy Value	ISO3001	4.4-4.9
Density at 25°C	ISO1675	1.16-1.2 g/cm³
Dielectric Strength	-	20-30 kV/mm
Cure Temperature	-	130-140°C
Viscosity at 25°C	ISO12058	5.5-8.5 MPa*s

Applications

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

Frequently Asked Questions

Q: What certifications does this resin hold?

A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?

A: Guaranteed dispatch within 10 business days.

Q: Is customization available?

A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?

A: L/C and T/T transactions.
