Name: 9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9218F
Price: 2.6 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor

18kJ/m² Electrical Epoxy Resin

Low Loss Factor Electrical Epoxy Resin

9218 Electrical Epoxy Resin

Place of Origin:

China

Brand Name:

Wenyou

Certification:

UL/SGS/REACH/RoHS

Model Number:

9218F

Document:

Wenyou catalogue-2024.pdf

Request A Quote

9218 Electrical Epoxy Resin High Impact Strength 10-18kJ/m² Low Loss Factor

Product Details

Apply:

High Voltage Transformer

Flexibility:

High

Curing Shrinkage:

0.8-1.0%

Application:

Electrical Insulation

Usage:

Eletric Insulation

Glass Transition Temperature:

100-120°C

Payment & Shipping Terms

Minimum Order Quantity

240KG

Price

$2.6

Packaging Details

20kg/220kg

Delivery Time

within 10 days

Payment Terms

L/C,T/T

Supply Ability

200Ton/Month

Industrial Electrical Epoxy Resin for Optimal Insulation Performance

Get Best Price

Video

UL 94 V-0 Epoxy Hardener for Flame Retardant MV Switchgear Potting & Safety Compliance

Get Best Price

Video

Industrial Epoxy Resin For Heavy-Duty Applications Error Details SOCKS5 Negotiation Read Failed

Get Best Price

Video

Electrical Epoxy Resin with Excellent Thermal Conductivity and Low Moisture Absorption

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

9218 Electrical Epoxy Resin | High Impact Strength 10-18kJ/m² | Low Loss Factor

Attribute	Value
Apply	high voltage transformer
Flexibility	High
Curing Shrinkage	0.8-1.0%
Application	Electrical Insulation
Usage	electric insulation
Glass Transition Temperature	100-120°C

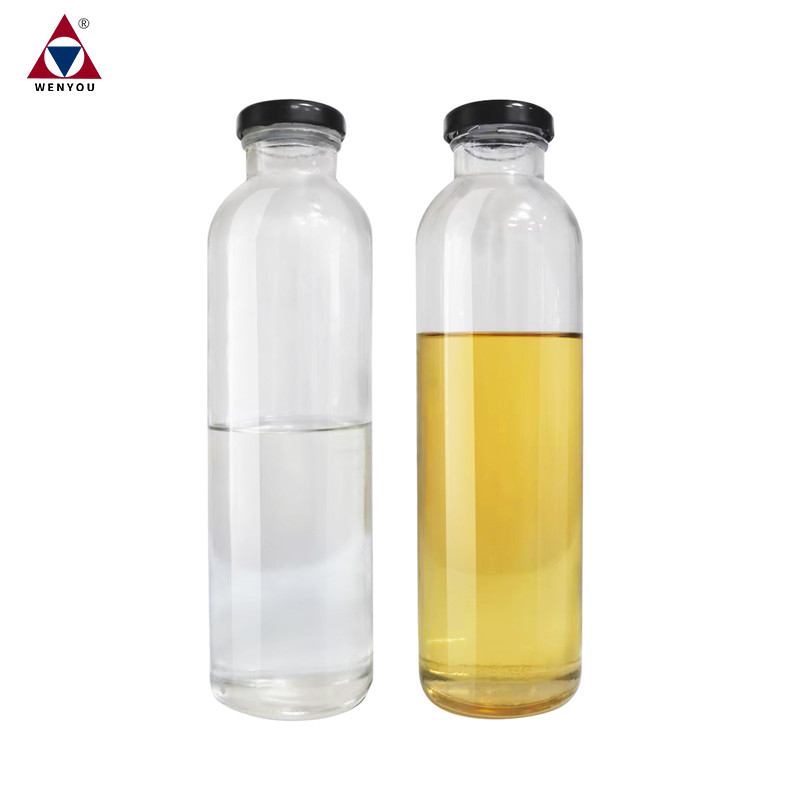

WENYOU 9218 Electrical Epoxy Resin is a premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages

High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
Flame Retardant: HB flammability rating (4mm thickness) enhances safety
Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications

Property	Test Standard	Value Range
Compressive Strength	ISO604	150-200 N/mm²
Flexural Strength	ISO178	110-140 N/mm²
Tensile Strength	ISO527	60-85 N/mm²
Epoxy Value	ISO3001	4.4-4.9
Density at 25°C	ISO1675	1.16-1.2 g/cm³
Dielectric Strength	-	20-30 kV/mm
Cure Temperature	-	130-140°C
Viscosity at 25°C	ISO12058	5.5-8.5 MPa*s

Applications

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

Frequently Asked Questions

Q: What certifications does this resin hold?

A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?

A: Guaranteed dispatch within 10 business days.

Q: Is customization available?

A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?

A: L/C and T/T transactions.
