Name: Crack Resistance Transformers Indoor Insulators Epoxy Resin
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8224A
Price: 2.35 USD
Availability: InStock

Home > products > Transformer Epoxy Resin >

Crack Resistance Transformers Indoor Insulators Epoxy Resin

Crack Resistance Epoxy Resin

Low Vapor Pressure Transformer Epoxy Resin

Indoor Insulators Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8224A

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

12~40.5kV Insulators, Current & Voltage Transformers, Dry Type Transformers Etc

Application:

Indoor Medium & High Voltage Electrical Products

Appearance Of Epoxy Resin:

White Viscous Liquid

Viscosity At 40°C:

16000 - 35000mPa.s

Density At 25°C:

1.60 - 1.70g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

> 150°C

Discription:

Crack Resistance Transformers Resina Epoxica Indoor Insulators Epoxy Resin

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

Thermally Conductive Epoxy Resin for Transformers and Bushings

Get Best Price

Video

Vibration Resistant RT Cure Potting Compound for Protecting Sensitive CT/PT Coils

Get Best Price

Video

Thermal Shock Resistant Epoxy Curing Agent for MV Switchgear Encapsulation & Protection

Get Best Price

Video

Epoxy System H-Class Insulation 12-40.5kV Applications Vacuum / APG Casting

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

Crack resistance transformers resina epoxica indoor insulators epoxy resin

LW-8224A is a prefilled Bisphenol-A epoxy resin.

LW-8224B is a prefilled anhydride curing agent.

Applications

Indoor medium & high voltage electrical products such as 12~40.5kV insulators, current & voltage transformers, dry type transformers etc.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Good mechanical and electrical properties

Good crack resistance

Very good low temperature endurance properties

Very good thermal endurance properties

Formulation

Epoxy resin	LE-8224A	100 pbw
Hardener	LH-8224B	100 pbw
Color paste	LC series *	3 pbw

Advantage

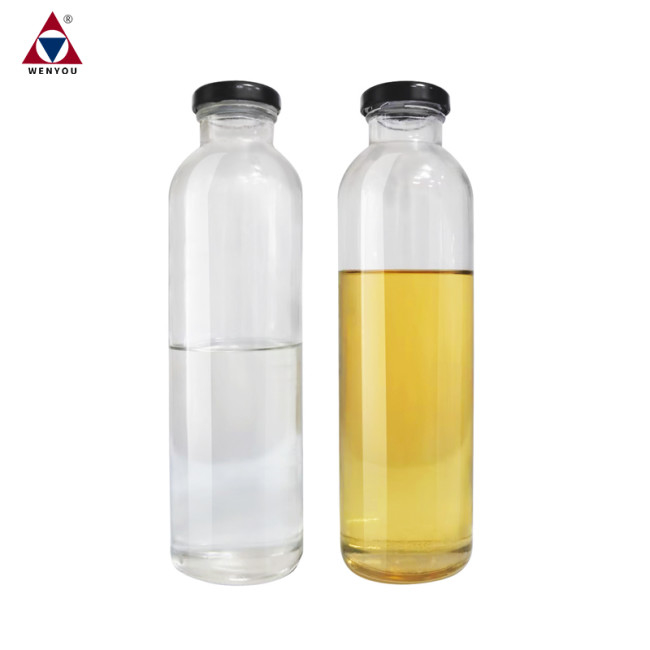

Crack Resistance Transformers Indoor Insulators Epoxy Resin 0

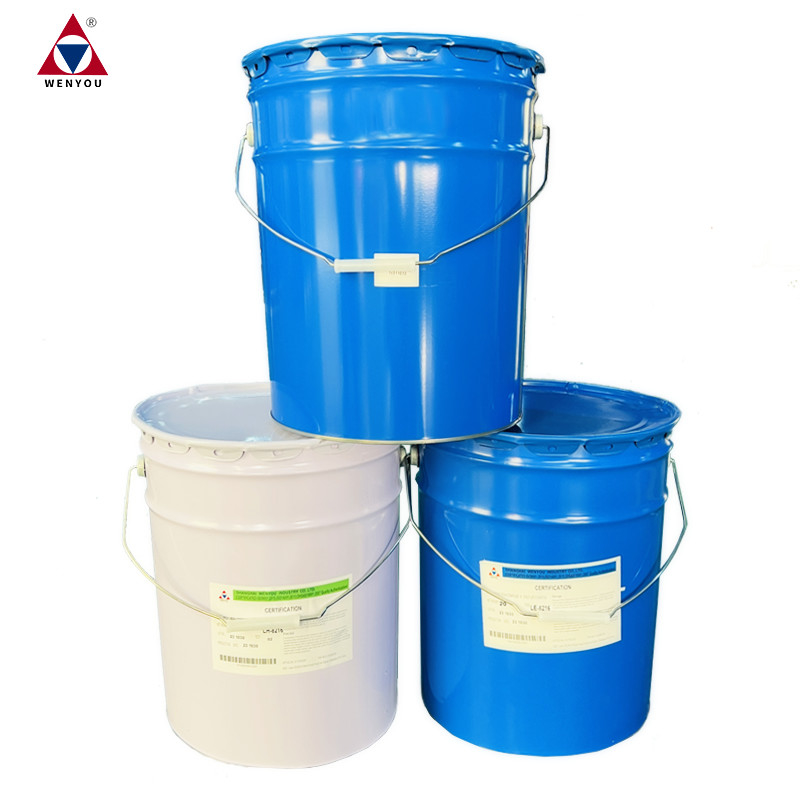

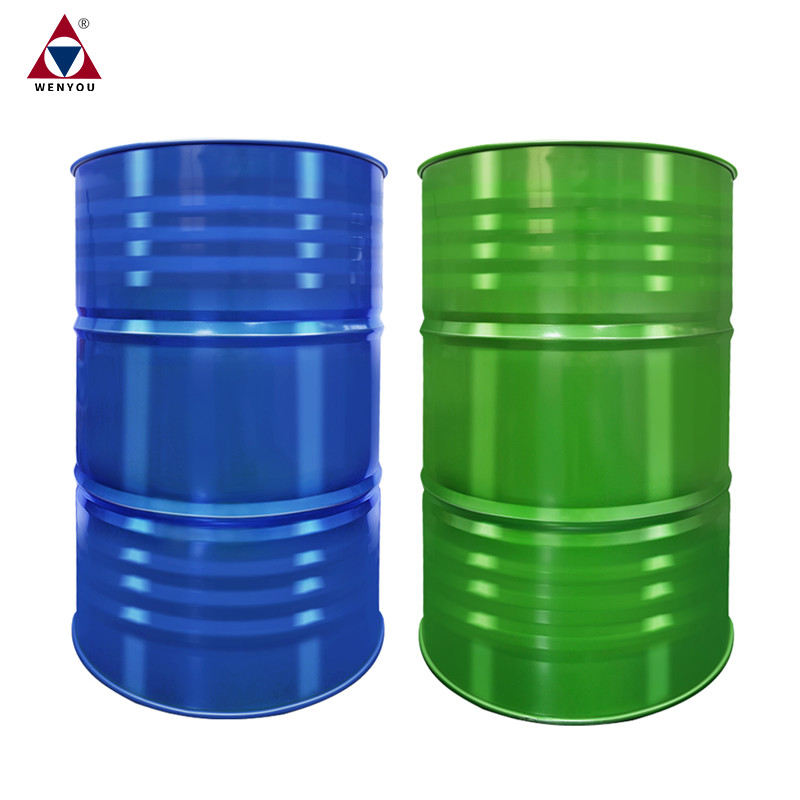

Package Image

Crack Resistance Transformers Indoor Insulators Epoxy Resin 1

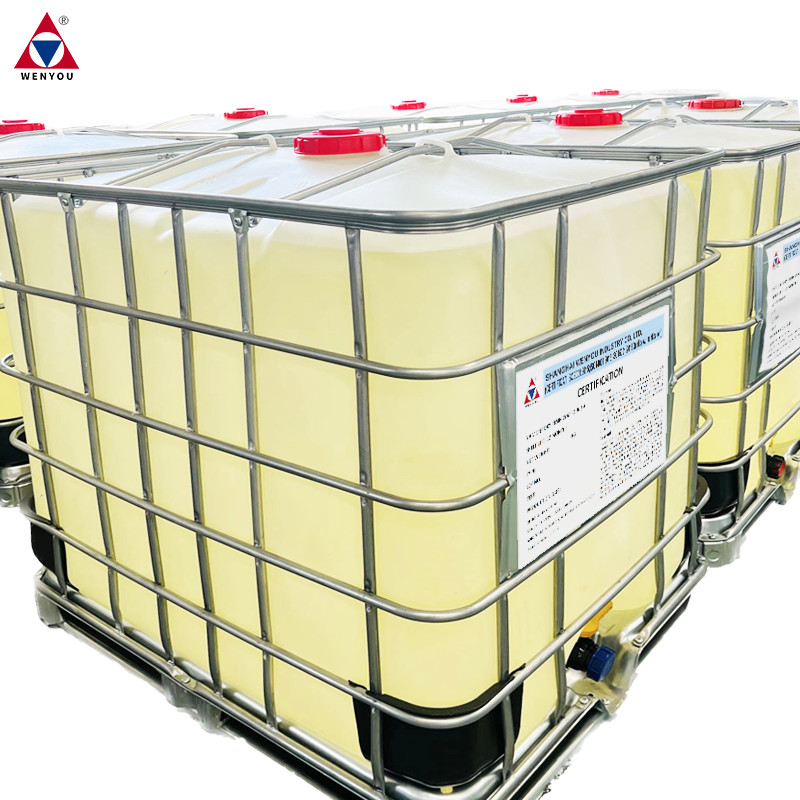

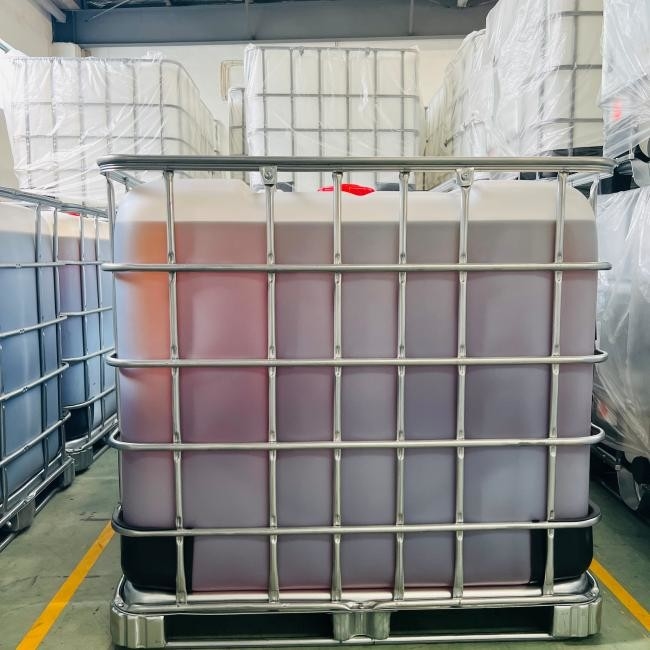

Shipment image

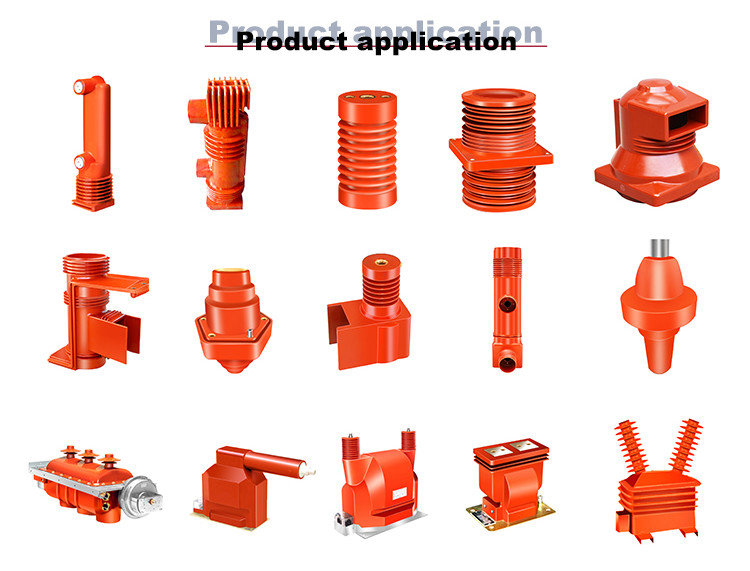

Example application image

Crack Resistance Transformers Indoor Insulators Epoxy Resin 3
