Name: Apg Forming Transformer Epoxy Resin Colourless Liquid Cas 26590 20 5
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE-9217K
Price: 2.35 USD
Availability: InStock

Home > products > Transformer Epoxy Resin >

Apg Forming Transformer Epoxy Resin Colourless Liquid Cas 26590 20 5

APG forming Transformer Epoxy Resin

cas 26590 20 5

epoxy resin liquid Colourless

Place of Origin:

CHINA

Brand Name:

WENYOU

Certification:

CE,UL.ISO.SGS

Model Number:

LE-9217K

Request A Quote

Product Details

CAS:

26590 20 5

Product Name:

Transformer Epoxy Resin

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

1000KG/220KG/200KG/20KG

Delivery Time

7 work days

Payment Terms

L/C, T/T

Supply Ability

1800 Ton/Tons per Month

Thermally Conductive Epoxy Resin for Transformers and Bushings

Get Best Price

Video

Vibration Resistant RT Cure Potting Compound for Protecting Sensitive CT/PT Coils

Get Best Price

Video

Thermal Shock Resistant Epoxy Curing Agent for MV Switchgear Encapsulation & Protection

Get Best Price

Video

Epoxy System H-Class Insulation 12-40.5kV Applications Vacuum / APG Casting

Get Best Price

0086 18917671419

hill@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Transformer APG forming use epoxy resin liquid

Overview

Essential details

CAS No.:: 26590-20-5

Other Names:: Epoxy Resin Potting Compound

MF:: C9H10O3

EINECS No.:: 247-830-1

Place of Origin:: Shanghai, China

Type:: Double Components Adhesives

Brand Name:: WENYOU

Model Number:: LE-9217K

Purity:: Liquid Epoxy Resin

Mix temperature:: 40°C/1-2hours

Feeding process:: pressure(0.5-5bar)

Mold temperature:: 130-150 °C

Gelation times:: 10-30mins

Cure conditions:: 130-140°C*6-10hours

Appearance:: Colourless Liquid

Hardener:: LH-9214V

Application:: Bushings, Insulators etc.

Main Raw Material:: Resin

Other:: APG Process

Supply Ability

Supply Ability: 1800 Ton/Tons per Month

Packaging & delivery

Packaging Details: Epoxy Resin 20kg/pail or 220kg/drum or 1200kg/tank
Hardener 20kg/pail or 220kg/drum or 1200kg/tank
Silica 25kg/bag
Pigment 20kg/pail

Port: Shanghai Port, China

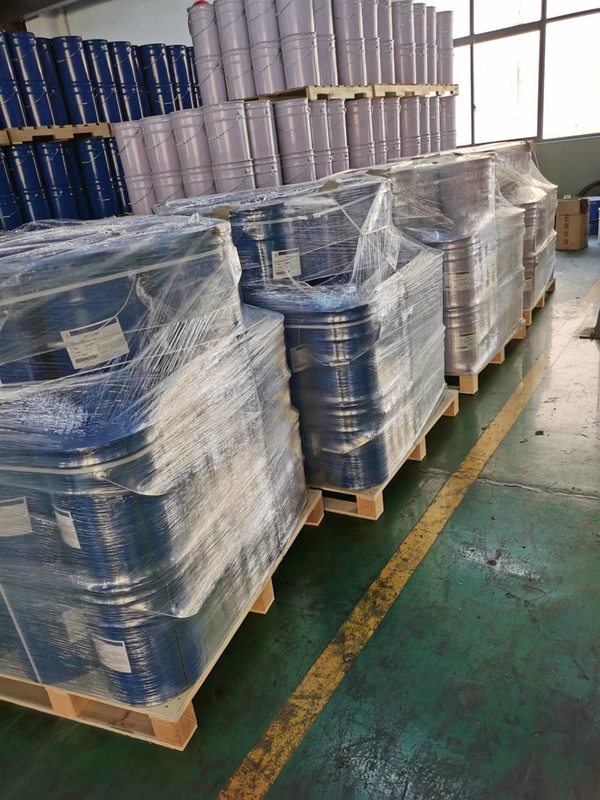

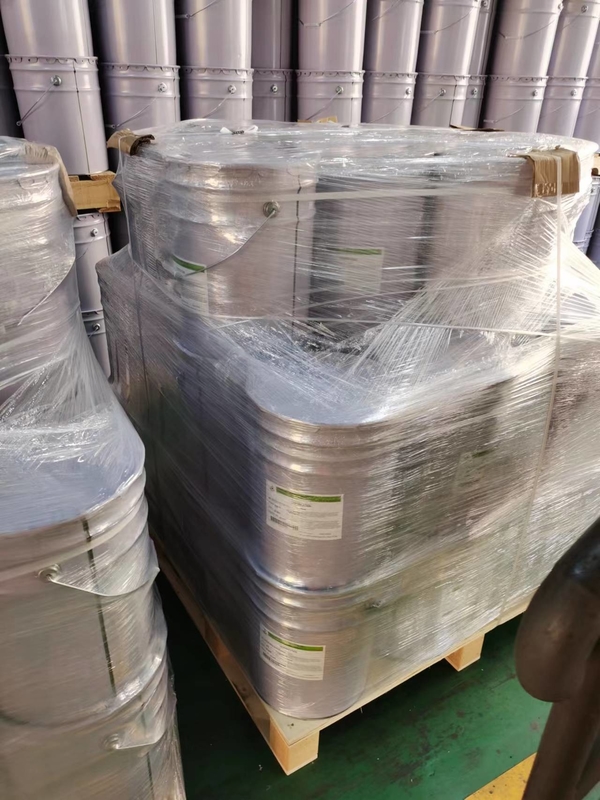

Picture Example:

Lead time:

Quantity(kilograms)	1 - 1200	1201 - 12000	>12000
Lead time (days)	7	15	To be negotiated

Product Description

*Main Product Model

Indoor injection epoxy resin APG process	9216F	TG:70-90℃	Apply to 10-35kv Mutual inductor, etc.
	9217F	TG:80-100℃	Apply to 10-35kv Mutual inductor, etc.
	9287F	TG:90-110℃	Apply to 10-35kv Insulation, etc.
	9214F	TG:90-110℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9218F	TG:100-120℃	Apply to 10-35kv Insulation, solid sealed pole, solid insulation, etc.
	9219F	TG:100-120℃	Apply to 10-35kv Insulation, etc.
Casting process	8216F	TG:70-90℃	Apply to 10-35kv Transformer, mutual inductor, etc.
	8217F	TG:80-100℃	Apply to 10-35kv Transformer, mutual inductor, etc.
	8229X	TG:105-125℃	Apply to 10-35kv Transformer, mutual inductor, etc.
Outdoor epoxy resin casting process	9516	TG:60-80℃	Apply to 10-35kv Outdoor transformer, mutual inductor, etc.
	9518	TG:90-110℃	Apply to 10-35kv Outdoor insulation, mutual inductor, etc.
	8516X	TG:60-80℃	Apply to 10-35kv Outdoor transformer, mutual inductor, etc.
Flame retardant epoxy resin casting process	9274D	TG:80-100℃	3mm, V0 Apply to 10-35kv Insulation, etc.
	9276	TG:75-95℃	6mm, V0 Apply to 10-35kv Mutual inductor, etc.
	9278	TG:100-120℃	6mm, V0 Apply to 10-35kv Insulation, etc.
	9214V	TG:90-110℃	12mm, V0 Apply to 10-35kv Mutual inductor, solid insulation, etc.
	9219V	TG:100-120℃	12mm, V0 Apply to 10-35kv Insulation, etc.
No post curing epoxy resin	9287K	TG:85-105℃	Apply to 10-35kv Mutual inductor, insulation, etc.
No post curing epoxy resin	9219K	TG:100-120℃	Apply to 10-35kv Mutual inductor, insulation, etc.
Others	9205	TG:80-125℃	Apply to 10-35kv Insulation, mutual inductor, solid insulation, etc.
	9225	TG:100-120℃	Apply to 10-35kv Insulation, etc.
	9229	TG:105-125℃	Apply to 10-35kv Insulation, mutual inductor, solid insulation, etc.

*Product Details

Apg Forming Transformer Epoxy Resin Colourless Liquid Cas 26590 20 5 2

Apg Forming Transformer Epoxy Resin Colourless Liquid Cas 26590 20 5 3
