Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Epoxy resin compound with high tensile strength

1:1 mixing ratio epoxy resin

Thermally conductive epoxy for electrical insulation

Place of Origin:

Shanghai, China

Brand Name:

WENYOU

Model Number:

9219K

Contact Us
Request A Quote
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation
Product Details
CAS No.:
11070-4-3
Classification:
Double Components Adhesives
EINECS No.:
216-823-5
Main Raw Material:
Epoxy
MF:
C21H24O4
Other Names:
Epoxy Resin Potting Compound GLUE
Type:
Epoxy Resin Compound A & B
Usage:
Electrical Insulation
Keywords:
Fast Curing Epoxy Hardener
Material:
Epoxy Resin+hardener
Product Name:
Epoxy AB Glue For Transformers
Application:
Indoor Used
Packing:
20KG Or 200KG Or1200KG
Delivery Time:
Within 7 Days
Certificate:
ISO14001 19001:2015 ISO45001
Advantage:
REACH,UL, Other Certificate
Component:
Double Components: Epoxy+ Hardener
Mixing Ratio:
A:B=1:1
Payment & Shipping Terms
Minimum Order Quantity
5000
Price
$3.18-3.20
RELATED PRODUCTS
Good price High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation online

High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation

Get Best Price
Good price Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation online

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

Get Best Price
Good price Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers online

Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers

Get Best Price
Good price Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation online

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Get Best Price
Contact Us
0086 18916511816
hope.lu@sh-wysy.com
86-21-64308192
Contact Now
Product Description
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02

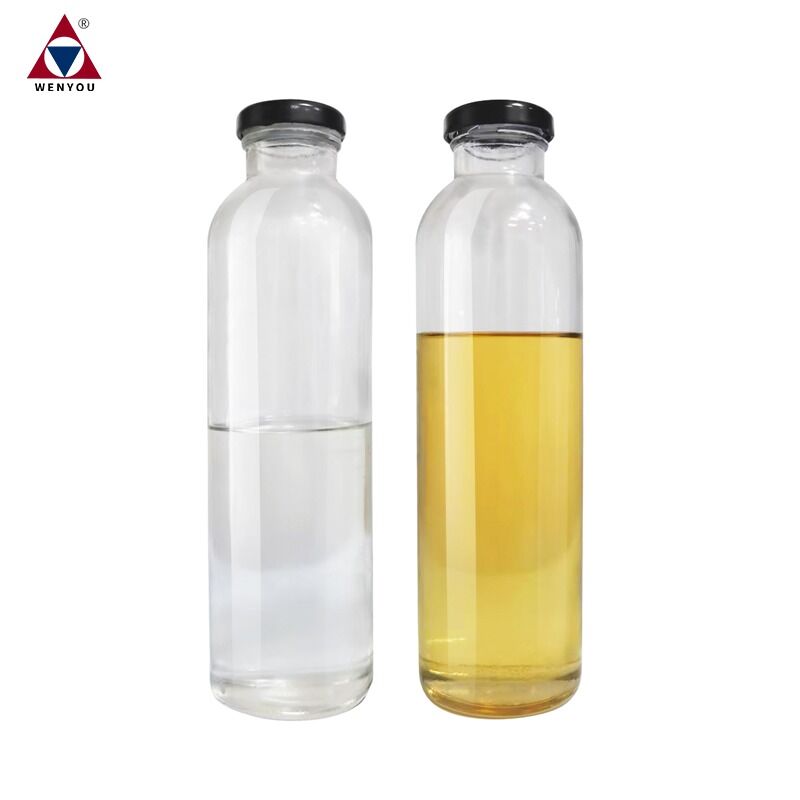

Detail images
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 0
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 2
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 4
Product Show
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 6
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 8
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 10
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 12
Work shop
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 14
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 16
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 18
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 20
Our factory
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 22
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 24
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 26
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 28

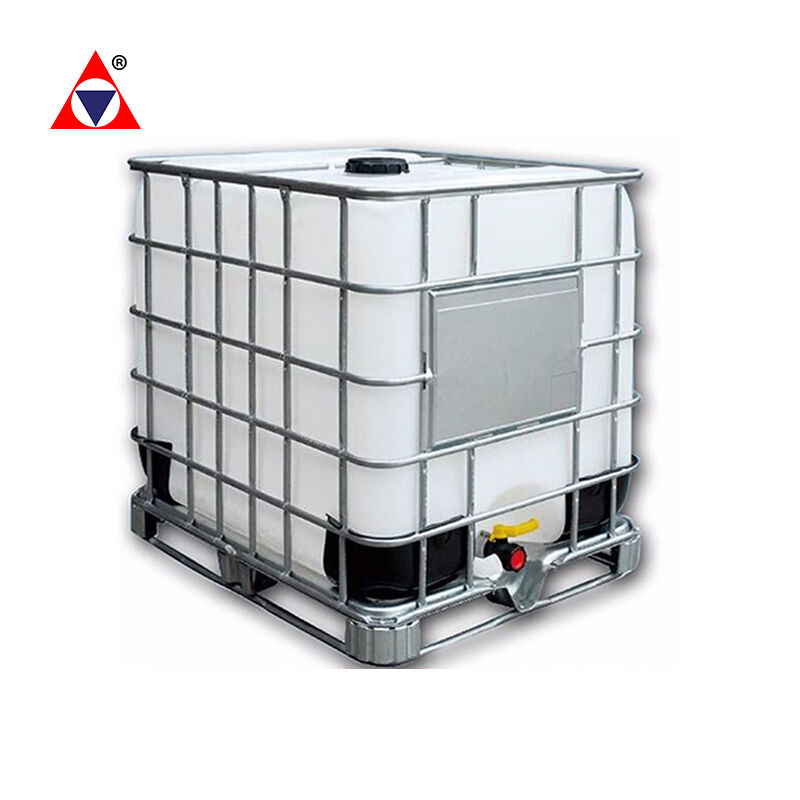

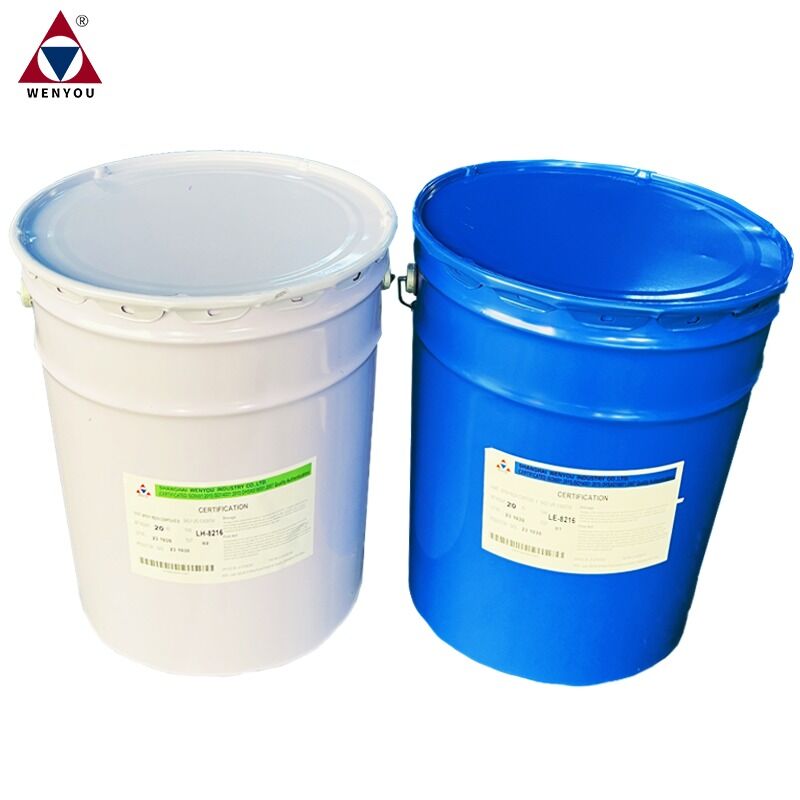

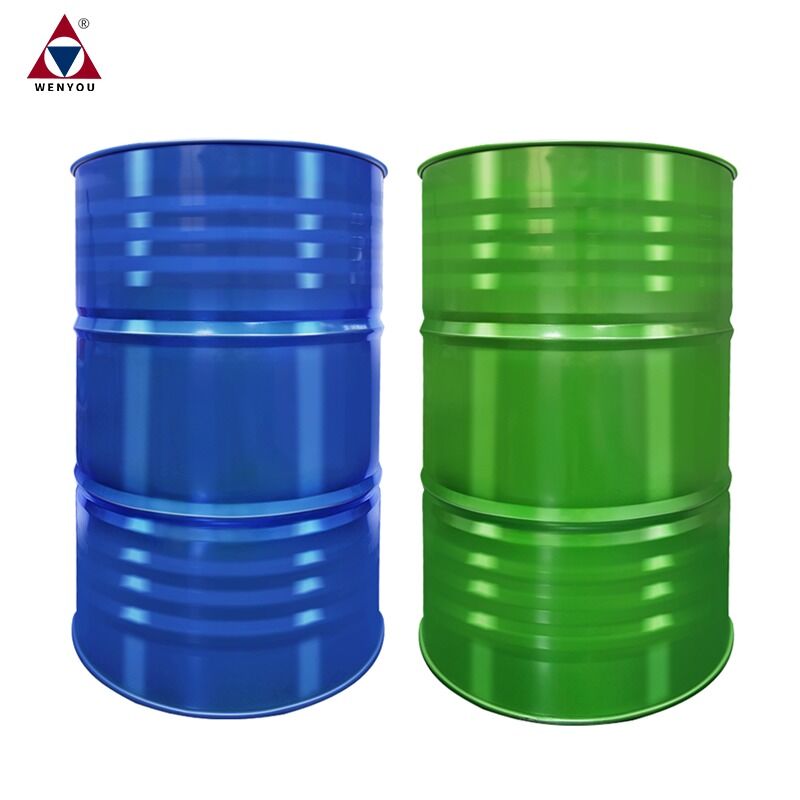

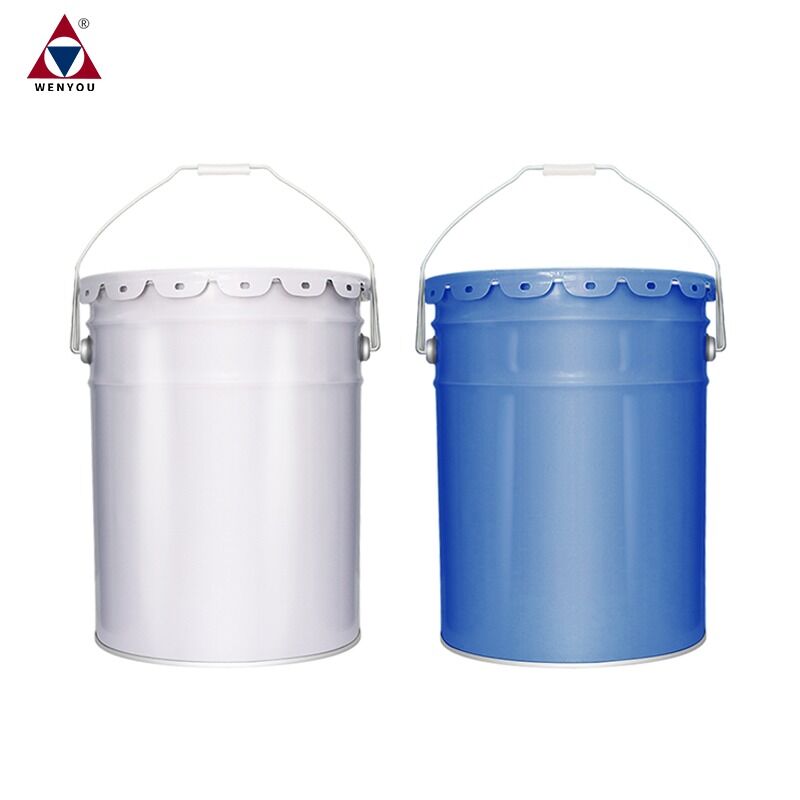

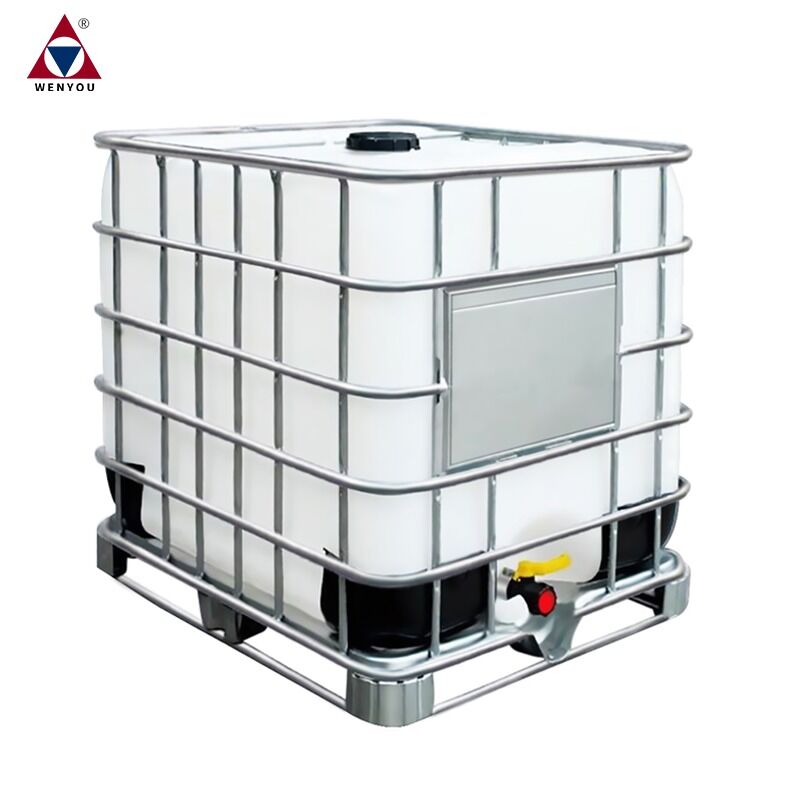

Packing & Delivery
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 30
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 32
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 34
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 36
Exhibition
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 38
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 40
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 42
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 44
Company profiles
Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation 46
Our company
We are specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers.  Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.
