Name: 10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9229A
Price: 2.30 USD
Availability: InStock

Home > Products > Electrial Insulating Epoxy Resin >

10-35kV Insulation Epoxy Resin with Pre-Mixed Fillers for Room Temperature Cure in Electrical Components

10-35kV Insulation Epoxy Resin

Pre-Mixed Fillers Epoxy Resin

Room Temperature Cure Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9229A

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

10-35KV Sealed Terminal Posts, Transformers, Current Transformers, And Other Insulation Components

Application:

Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Milky White Viscous Liquid

Viscosity At 40°C:

10000 - 20000mPa.s

Density At 25°C:

1.55 - 1.70g/cm3

Vapor Pressure At 25°C:

< 0.01Pa

Flash Point:

Around 135°C

Discription:

Long Durability Transformer Epoxy Resin Good Crack Resistance Outdoor Use

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T,L/C

Supply Ability

Plenty of raw material in stock

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

Get Best Price

Video

High Dielectric Strength Epoxy for CT/PT Insulation & Room Temp Encapsulation

Get Best Price

Video

Fast Room Temp Cure Epoxy Resin for CT / PT Transformer Potting & Encapsulation

Get Best Price

Video

Low Viscosity Flame Retardant Epoxy for Void-Free Transformer Coil Impregnation

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Crystal Clear Epoxy Resin Liquid for Electrical Components & Insulation

LW-9229A/B: Crack-Resistant Room Temp Cure Epoxy for 10-35kV CT/PT Insulation & Outdoor Encapsulation

UL-Certified | Pre-Mixed Fillers | Superior Dielectric Strength

Engineered for outdoor electrical insulation in Current Transformers (CT) and Potential Transformers (PT), this modified BPA epoxy system delivers crack-resistant encapsulation for 10-35kV terminal posts, bushings, and transformer components. With pre-mixed fillers in both resin (LW-9229A) and hardener (LW-9229B), it ensures consistent thermal shock resistance and long-term durability in harsh environments.

Key Advantages

Crack Resistance: Withstands thermal cycling for outdoor applications.
High Dielectric Strength: Critical for 10-35kV insulation systems.
Pre-Mixed Fillers: Simplified processing, no weighing errors.
Room Temperature Cure: Energy-efficient transformer manufacturing.
Moisture & Chemical Resistance: Protects CT/PT units from environmental degradation.

Applications

Ideal for:

10-35kV sealed terminal posts
CT/PT transformer potting & coil encapsulation
Outdoor bushings, insulators, switchgear
High-voltage electrical insulation components

Processing Methods

Method	Benefit
Vacuum Gravity Casting	Bubble-free encapsulation for complex geometries.
Automatic Pressure Gelation (APG)	High-yield production of crack-resistant parts.

Critical Properties

Property	Value/Description
Filler Status	Pre-mixed in resin & hardener
Dielectric Strength	>22 kV/mm (ASTM D149)
Thermal Shock Resistance	Excellent (1,000+ cycles, IEC 60216)
Crack Resistance	Optimized for outdoor exposure
Viscosity	Slurry liquid for deep gap filling
Certification	UL 94 V-0 (Flame Retardant)

Formulation Guide

Component	Product	Proportion
Epoxy Resin	LW-9229A	100 pbw
Hardener	LW-9229B	100 pbw
Colorant	LC-Series*	1 pbw

*Color paste optional for UV-stable pigmentation.

Why Choose LW-9229A/B?

This electrical-grade epoxy combines BPA's structural strength with pre-mixed fillers for unmatched crack resistance in outdoor applications. Its slurry viscosity ensures perfect gap filling for CT/PT windings, while room temperature curing reduces production costs. Ideal for 10-35kV terminal posts and transformer encapsulation, it delivers lifelong moisture resistance and dielectric performance under thermal cycling.

Advantage

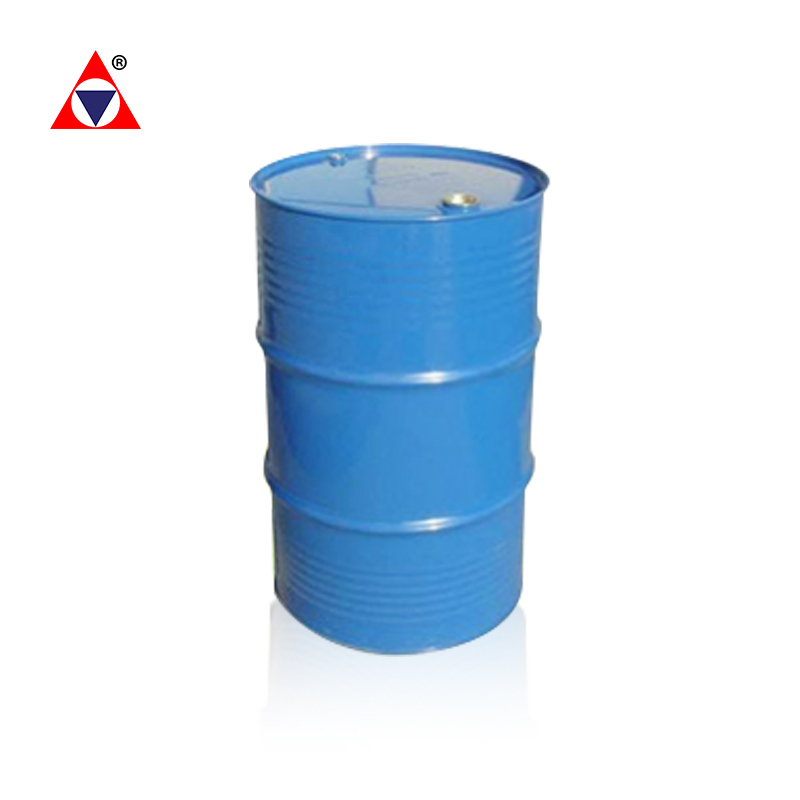

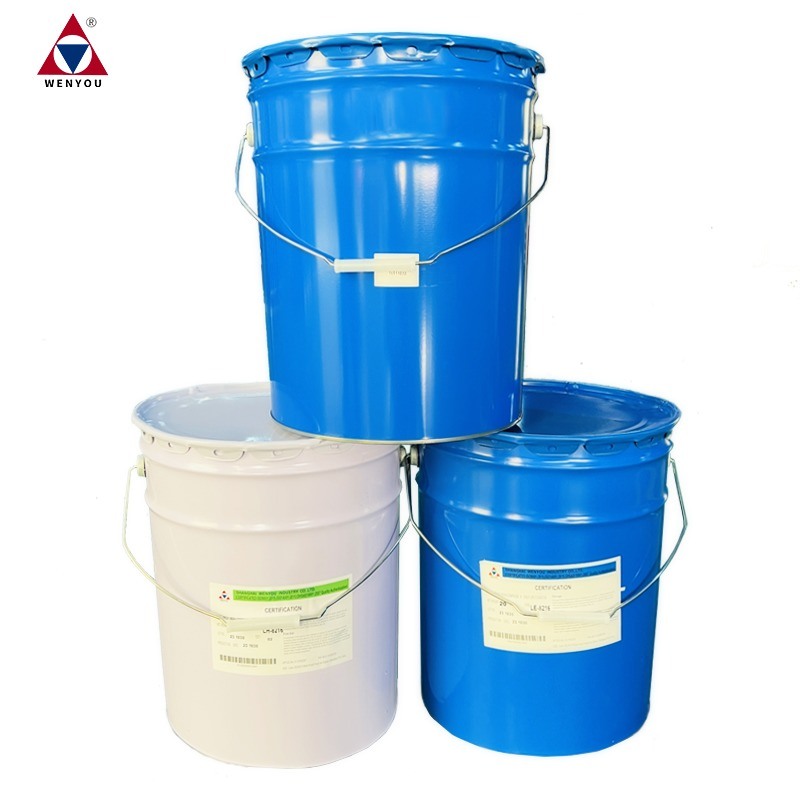

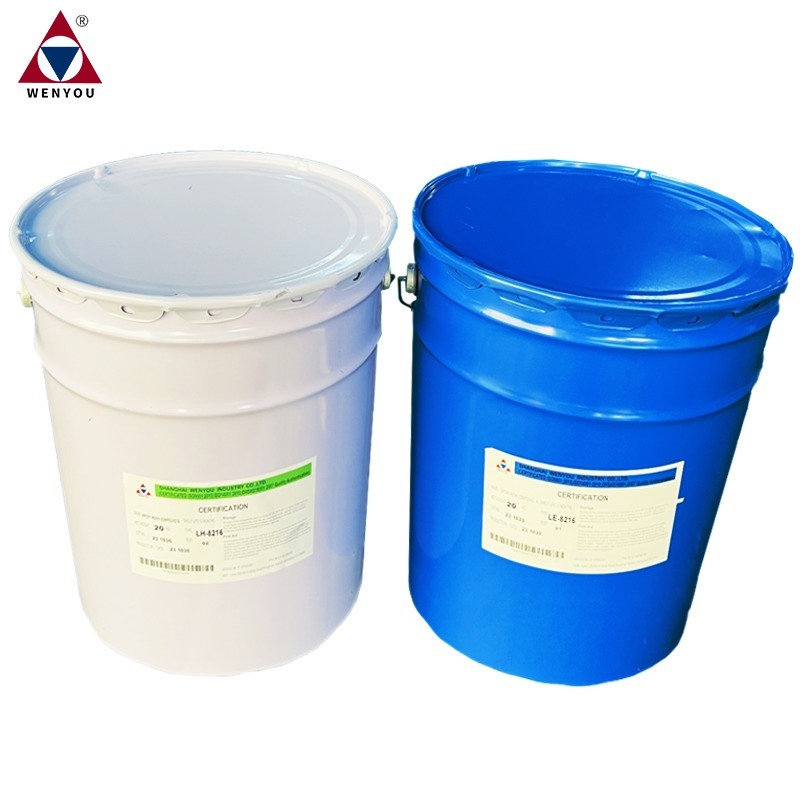

Package Image

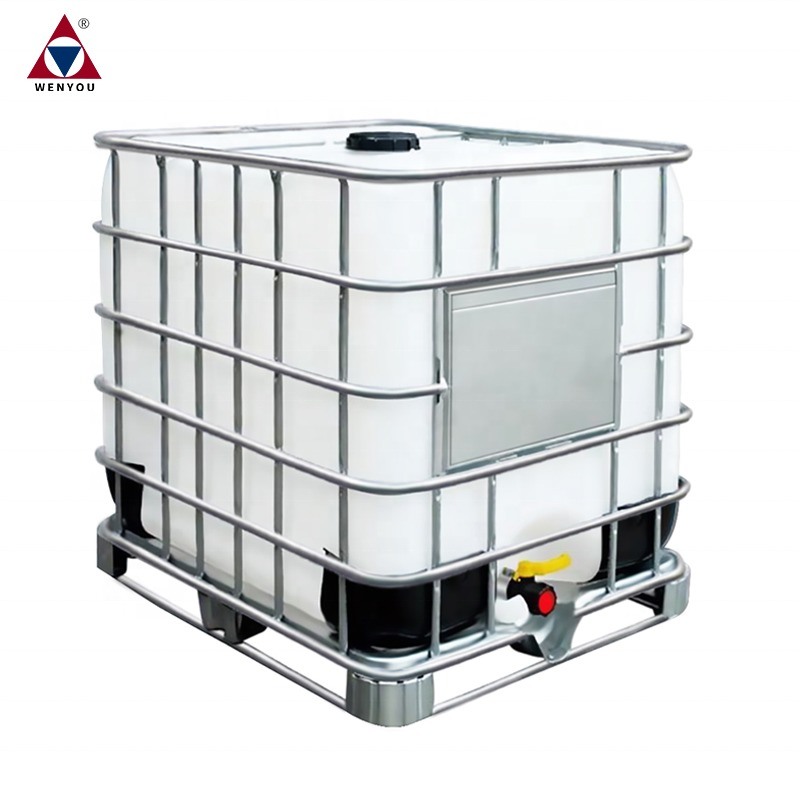

Shipment Image

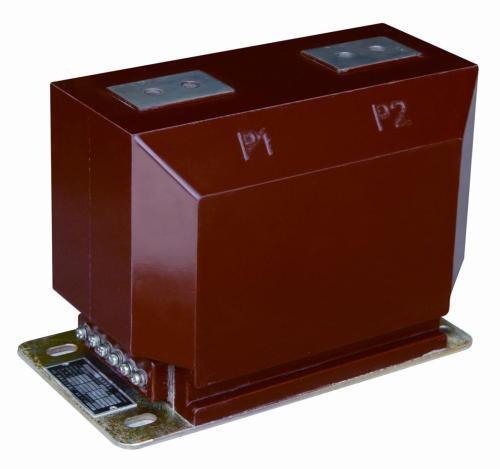

Example Application Image
