High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators

High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators

High Dielectric Strength Epoxy Resin

Thermally Conductive Electrical Insulating Epoxy

12kV - 40.5kV Transformer Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9215

Contact Us
Request A Quote
High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators
High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators
Product Details
Density:
1.16 - 1.20g/cm3
Vapor Pressure:
＜ 0.01Pa
Epoxy Value:
5.0 - 5.3Eq/kg
Viscosity:
9000 - 14500mPa.s
Flash Point:
Around 135°C
Filler Content:
300-400 Pbw
Highlight:

High Dielectric Strength Epoxy Resin

,

Thermally Conductive Electrical Insulating Epoxy

,

12kV - 40.5kV Transformer Epoxy Resin

Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally T/T,L/C
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Room Temperature Cure Flame Retardant Epoxy Resin with High Dielectric Strength for Electrical Insulation online Video

Room Temperature Cure Flame Retardant Epoxy Resin with High Dielectric Strength for Electrical Insulation

Get Best Price
Good price High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators online Video

High Dielectric Strength Thermally Conductive Epoxy Resin for 12kV - 40.5kV Electrical Insulators

Get Best Price
Good price Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Casting Resin for Electrical Insulation online Video

Crack Resistant High Dielectric Strength Room Temperature Cure Epoxy Casting Resin for Electrical Insulation

Get Best Price
Good price Low Shrinkage Flame Retardant Epoxy Resin for Room Temperature Cure in Electrical Insulating Applications online Video

Low Shrinkage Flame Retardant Epoxy Resin for Room Temperature Cure in Electrical Insulating Applications

Get Best Price
Contact Us
008618018933365
Elliot.yang@sh-wysy.com
86-21-64308192
Contact Now
Product Description
High Dielectric Strength Epoxy Resin For Instrument Transformer
Product Overview

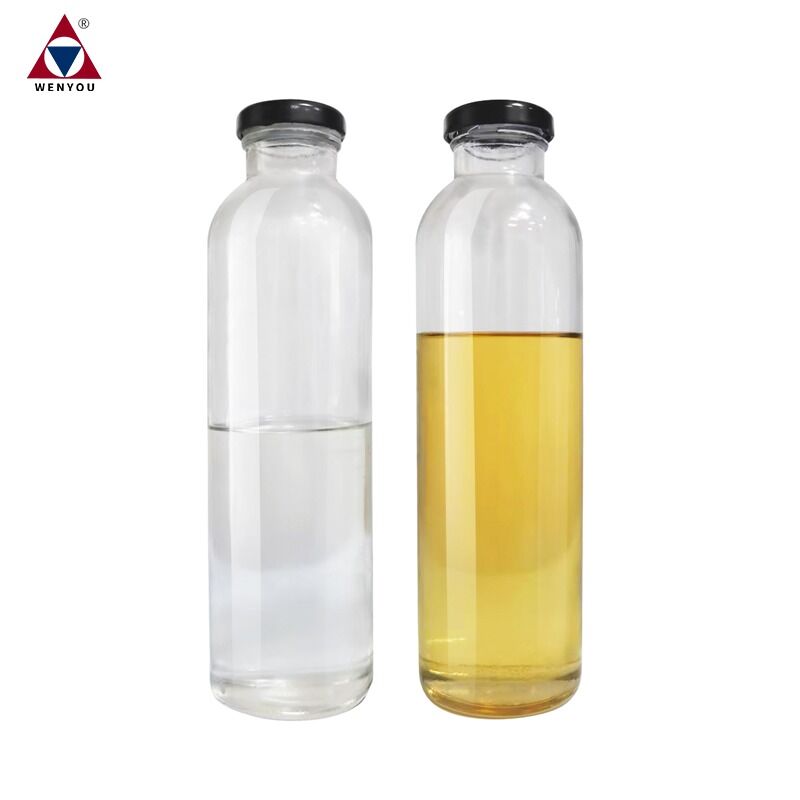

LE-9215 is a modified BPA (bisphenol A) epoxy resin, combined with LH-9215, a liquid modified carboxylic anhydride hardener. This thermally conductive epoxy adhesive is designed to protect electrical power components while providing effective insulation.

Applications

This epoxy resin is suitable for medium and high voltage electrical insulators, including contact boxes rated for 12kV to 40.5kV, insulators, and other related products.

Processing Methods

The material can be processed using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods can be customized to fit the client's existing manufacturing techniques.

Properties

LE-9215 exhibits excellent resistance to thermal shock, along with superior mechanical and dielectric properties, making it an ideal choice for demanding electrical applications.

Formulation
Component Product Code Quantity
Epoxy resin LE-9215 100 pbw
Hardener LH-9215 100 pbw
Filler Silica powder 300-400 pbw
Color paste LC series * 3 pbw
Product Advantages
High Dielectric Strength Epoxy Resin advantages and features
Product Advantages

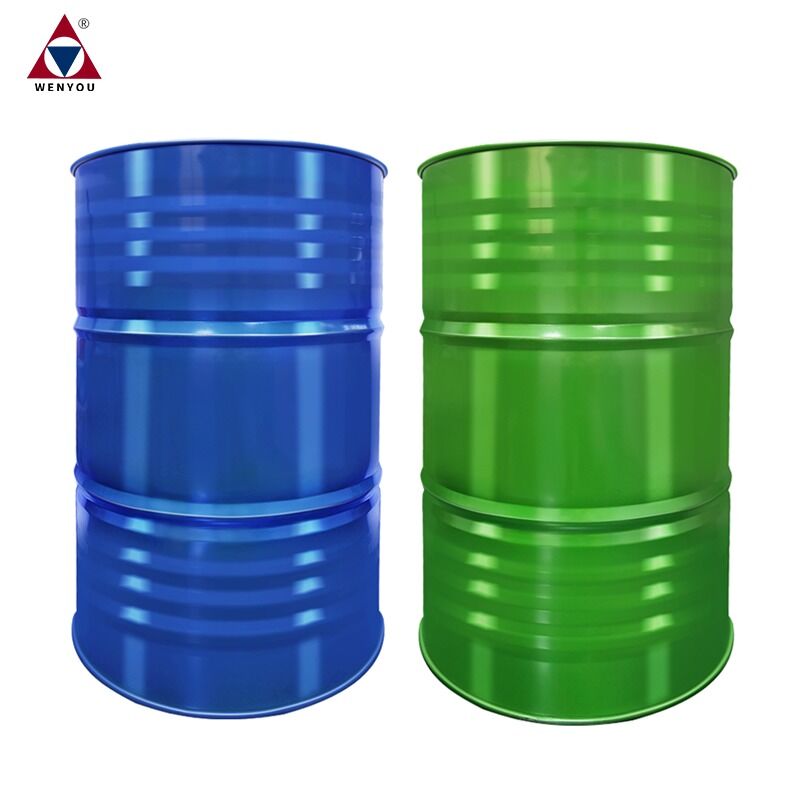

Packaging
LE-9215 epoxy resin packaging and container
Packaging Details

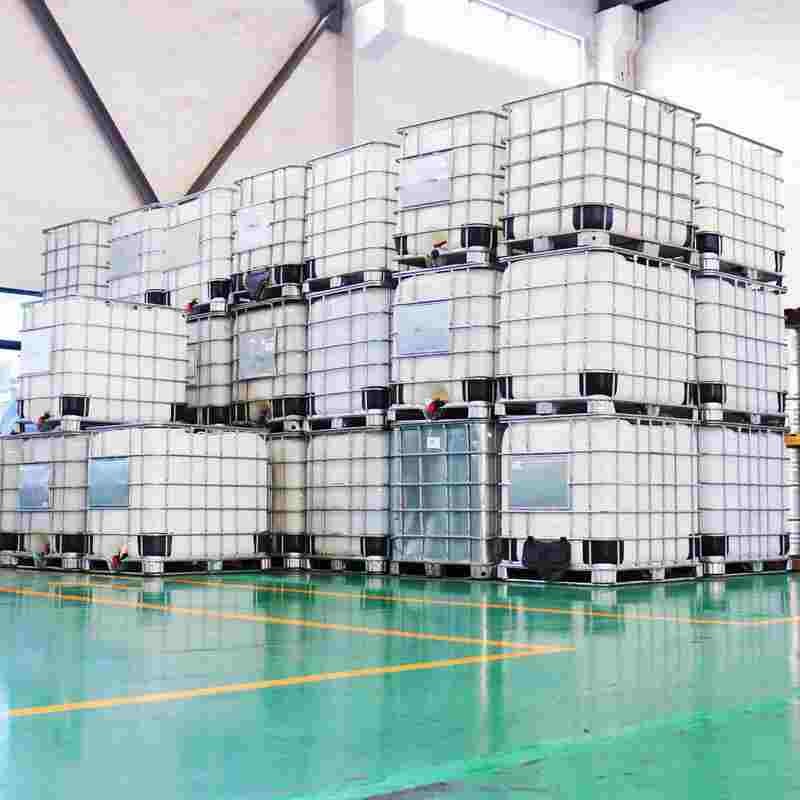

Shipping
LE-9215 epoxy resin shipment and delivery packaging
Shipping Configuration
Application Examples
LE-9215 epoxy resin application in instrument transformers
Real-world Application
