High-Tg Epoxy Resin for APG Process | Vacuum Casting & Electrical Insulating
LE-8216/LH-8216: UL-Certified Room Temperature Cure Epoxy for CT/PT Potting & Encapsulation
Flame-Retardant | UV/Weather-Resistant | High Dielectric Strength
Engineered for transformer encapsulation in Current Transformers (CT) and Potential Transformers (PT), LE-8216/LH-8216 delivers fast room temperature curing, eliminating energy-intensive ovens. This UL-certified, flame-retardant epoxy system combines a modified cyclic aliphatic epoxy resin (LE-8216) and weather-resistant anhydride hardener (LH-8216) for superior electrical insulation, moisture resistance, and vibration damping in demanding indoor/outdoor environments.
Key Features & Benefits
- Fast Ambient Cure: Saves energy with rapid curing at room temperature.
- Robust Protection: Shields CT/PT units from thermal shock, contaminants, and mechanical stress.
- Superior Insulation: High dielectric strength (>18 kV/mm) for high-voltage applications.
- Flame Retardant: UL 94 V-0 certified for safety-critical installations.
- Weatherproof: Exceptional UV/environmental resilience for outdoor use.
- Low-Viscosity Formulation: Penetrates intricate coils for void-free gap filling.
Applications
Ideal for:
- Transformer potting & encapsulation (CT/PT units)

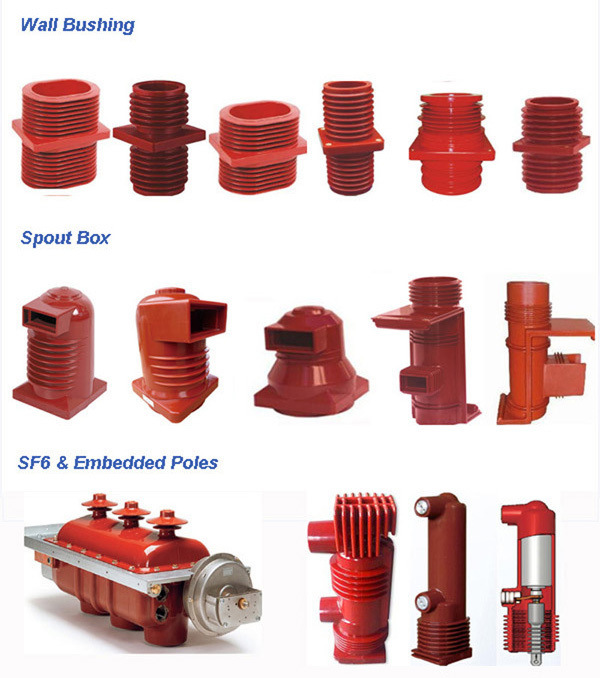

- Medium/high-voltage insulators, bushings, and switchgear
- Electrical components requiring moisture-resistant protection
- Flame-retardant insulation in power infrastructure
Processing Methods
| Method |
Description |
| Vacuum Gravity Casting |
Traditional method for bubble-free transformer encapsulation under vacuum. |
| Automatic Pressure Gelation (APG) |
High-efficiency process for mass production of CT PT epoxy components. |
Material Properties
| Property |
Value/Description |
| Curing Temperature |
Room temperature (20-25°C) |
| Dielectric Strength |
>18 kV/mm |
| Thermal Shock Resistance |
Excellent (ASTM D2519) |
| Viscosity |
Low (optimized for deep gap filling) |
| Flame Rating |
UL 94 V-0 certified |
| Color Options |
Customizable via LC-series paste |
Formulation Guide
| Component |
Product |
Proportion (pbw) |
| Epoxy Resin |
LE-8216 |
100 |
| Hardener |
LH-8216 |
100 |
| Filler |
Silica Powder |
280-350 |
| Colorant |
LC-Series* |
3 |
*Add LC-series paste for UV-stable pigmentation.
Why Choose LE-8216/LH-8216?
This electrical-grade epoxy system excels as a potting compound for transformer manufacturing, offering unmatched electrical component protection. Its saturated cyclic aliphatic structure ensures long-term stability under thermal cycling, while silica-filled reinforcement enhances mechanical strength and dielectric performance. Compatible with vacuum casting and APG processes, it integrates seamlessly into existing production lines--ideal for creating reliable, flame-retardant CT/PT encapsulation with minimal energy input.
