Flame Retardant Cast Resin for Dry Type Transformers: Ensuring Safety in Electrical Systems
Product Specifications
| Attribute |
Value |
| CAS No. |
1675-54-3 |
| Other Names |
Epoxy resin potting compound |
| MF |
C21H24O4 |
| EINECS No. |
216-823-5 |
| Classification |
Double Components Adhesives |
| Main Raw Material |
EPOXY |
| Usage |
Electrical power insulation |
| Type |
Epoxy Resin Compound |
| Epoxy Value |
4.5 - 5.0Eq/kg |
| Viscosity at 25°C of epoxy resin |
7000 - 10000mPa.s |
| Density at 25°C of epoxy resin |
1.16 - 1.20g/cm3 |
| Vapor Pressure at 25°C of epoxy resin |
< 0.01Pa |
| Flash point of epoxy resin |
around 130℃ |
| Viscosity at 25°C of hardener |
150 - 350mPa.s |
| Density at 25°C of hardener |
1.17 - 1.24g/cm3 |
| Vapor Pressure at 25°C of hardener |
around 0.5Pa |
| Flash point of hardener |
around 140℃ |
Product Description
Safety is a top priority in any electrical system, and dry type transformers are no exception. Our flame-retardant cast resin is designed specifically for dry type transformers to offer an extra layer of safety. The resin is formulated with flame-retardant additives that give it the ability to resist combustion.
In case of an electrical fault or overheating, the flame-retardant cast resin can prevent the spread of fire, minimizing potential damage and risks. This is especially crucial in areas where fire safety regulations are strict, such as hospitals, schools, and high-rise buildings. Dry type transformers with our flame-retardant cast resin not only meet but exceed safety standards.
The resin also has excellent electrical insulating properties, ensuring smooth power transfer. Moreover, it is resistant to moisture and corrosion, maintaining its flame-retardant and insulating capabilities over time. By using our flame-retardant cast resin in dry type transformers, you can have peace of mind knowing that your electrical systems are safe and reliable.
Formulation
| Component |
Material |
Quantity |
| Epoxy resin |
LE-184 |
100 pbw |
| Hardener |
LH-8504 |
100 pbw |
| Flexibilizer |
LF-675 |
0-20 pbw |
| Accelerator |
LZ-622 |
0.1-1.0 pbw |
| Filler |
Silica powder |
300-450 pbw |
| Color paste |
LC series |
3 pbw |
Key Properties
- Excellent resistance to thermal shock
- Superior mechanical and dielectric properties
Processing Methods
- Conventional gravity casting process under vacuum
- Automatic pressure gelation process (APG)
- Production process is adjustable according to client's present production methods
Applications

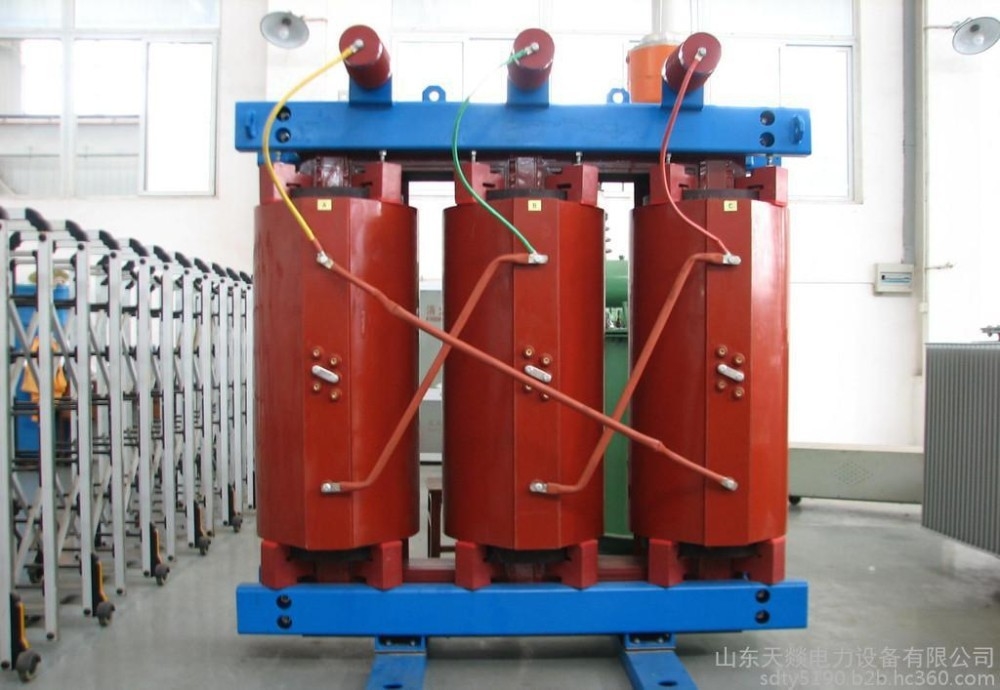

Outdoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.

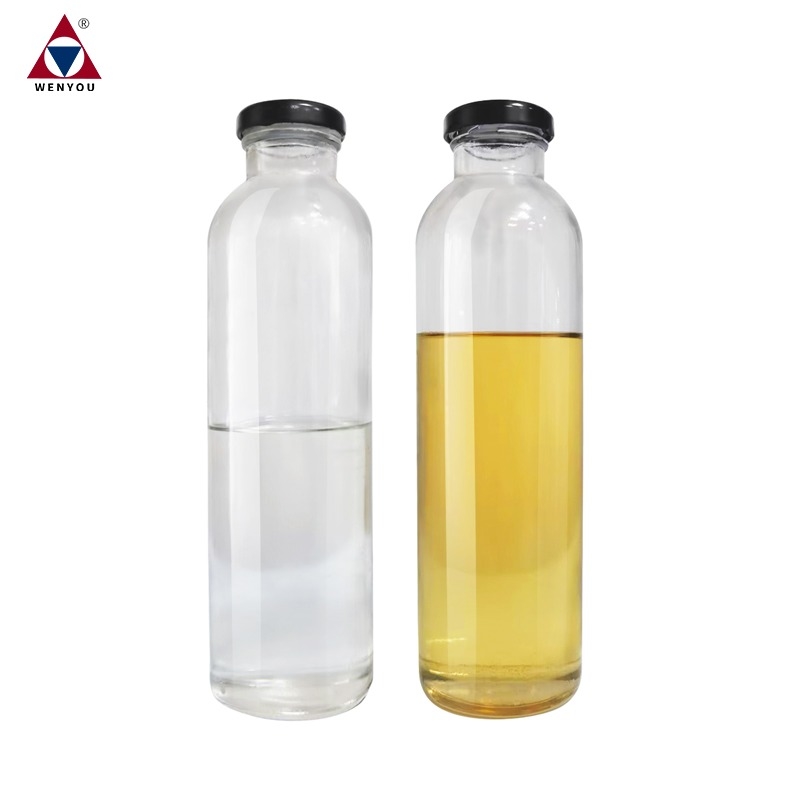

Product Images

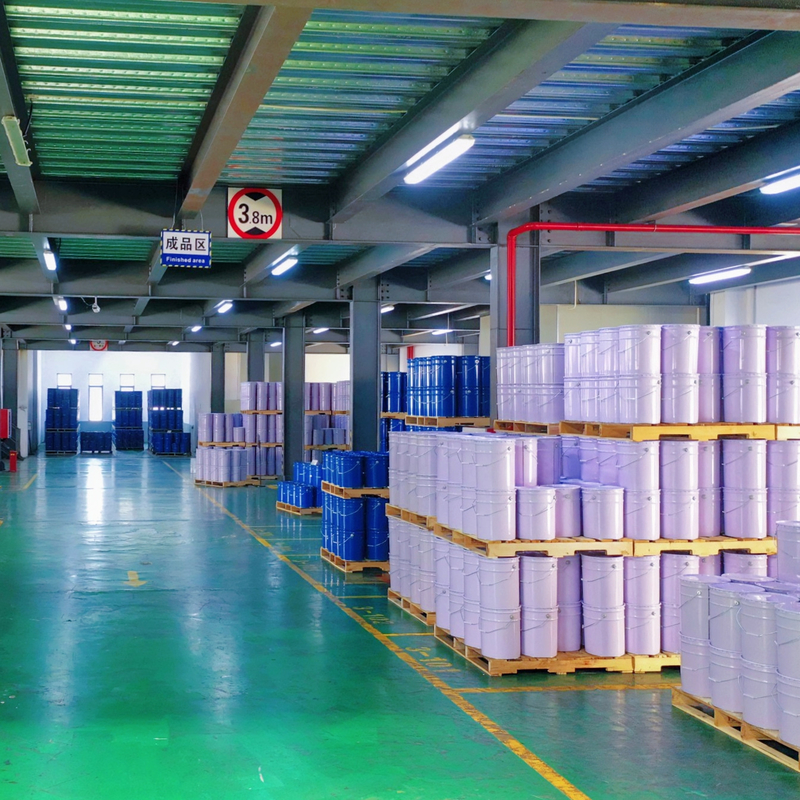

Packaging Options
- 20kg/iron pail
- 220kg/iron barrel

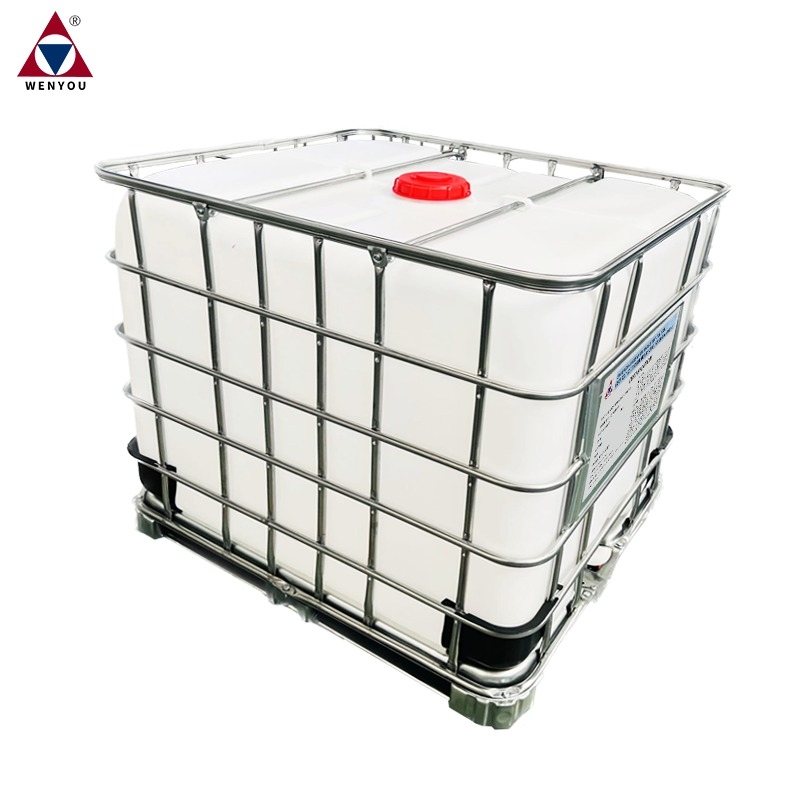

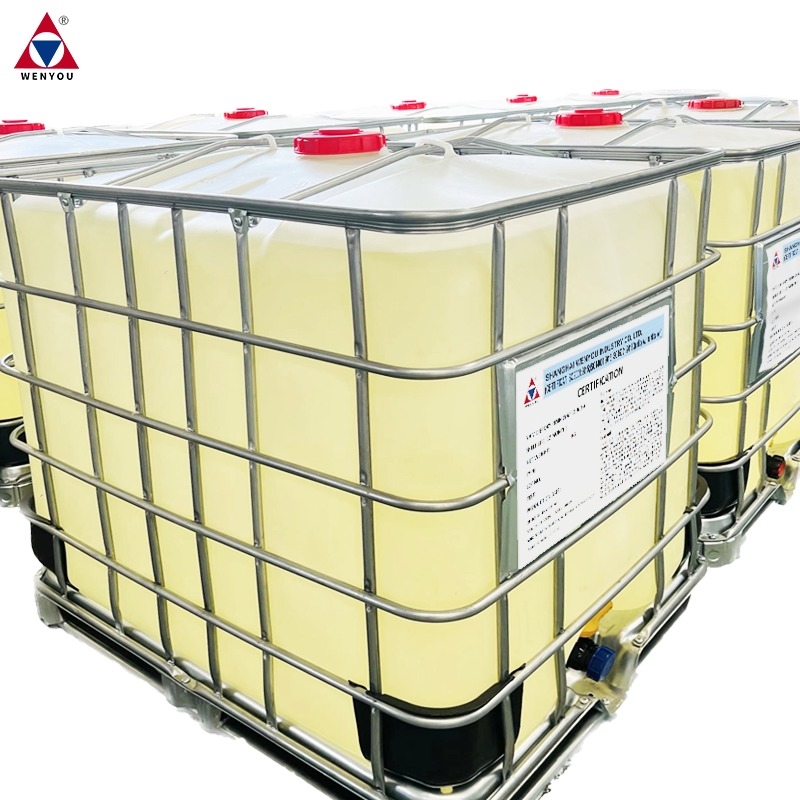

- 1200kg/plastic tank
Frequently Asked Questions
What's the usage of your product?

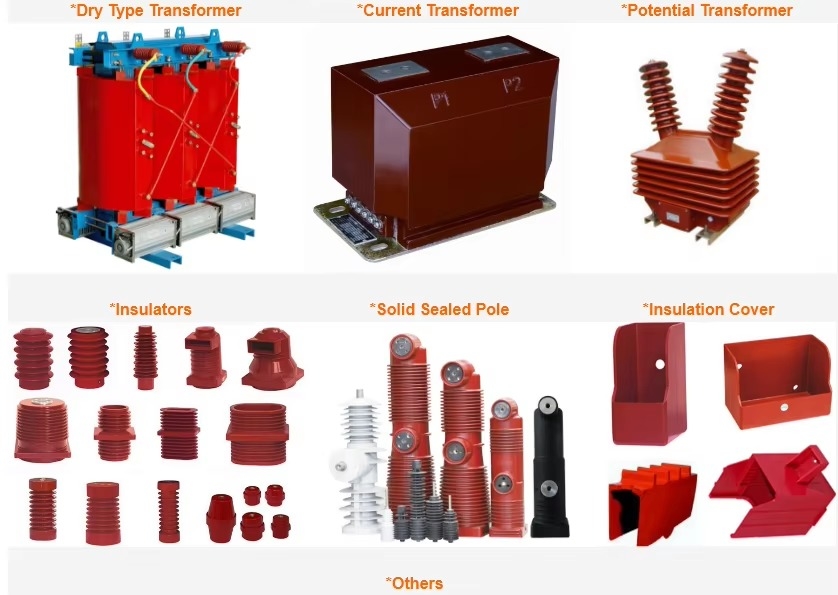

Our product is epoxy resin raw material, for making medium and high voltage electrical power insulation parts, such dry type transformers, potential transformers(PT), current transformers(CT), voltage transformers(VT), insulators, wall bushings, solid sealed pole, insulation covers, etc.
What's the MOQ of your product?
MOQ of our product is 20kg pail as sample for a trying.
What's the price of your product?
We have developed a series of material system to satisfy various of insulation parts applied to different environment situations. So our price is flexible depends on the material type, current pricing of market, order quantity, price terms, and payment terms.
What's the most convenient way to confirm suitable material type for my products?
The best way to confirm is to provide clear photos of your terminal products, and remark its application environment as Indoor or Outdoor? And also remark its producing process as APG or Casting?
