Name: Electrical Epoxy Resin for Voltage Transformers Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8216F
Price: 2.50 USD
Availability: InStock

Home > products > Electrical Epoxy Resin >

Electrical Epoxy Resin for Voltage Transformers Insulation

electrical epoxy resin for transformers

voltage transformer insulation epoxy

high voltage epoxy resin insulation

Place of Origin:

Shanghai, China

Brand Name:

wenyou

Model Number:

8216F

Request A Quote

Electrical Epoxy Resin for Voltage Transformers Insulation

Product Details

CAS No.:

1675-54-3

Molecular Formula:

C21H24O4

EINECS No.:

216-823-5

Classification:

Double Components Adhesives

Main Raw Material:

EPOXY

Glass Transition Temp:

70-90℃

Epoxy Resin:

LE-8216F

Hardener:

LH-8217F

Accelerator:

Lz-622

Filling Material:

Silica Flour(SIO2)

Filling Quantity:

300-350pbw

Color Paste:

LC-series

Color Paste Quantity:

3pbw

Usage:

Electrical Insulation

Type:

Epoxy Resin Compound

Payment & Shipping Terms

Minimum Order Quantity

Epoxy Resin for 10-1100KV Electrical Insulation and Transformers

Get Best Price

APG Casting Epoxy Resin Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin and Hardener for Electrical Insulation

Get Best Price

Clear Epoxy Resin Liquid for Electrical Insulation APG Process

Get Best Price

0086 18916511816

hope.lu@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Epoxy Resin with Superior Chemical Stability, Specially Designed for Voltage Transformers

Product Specifications

Attribute	Value
CAS No.	1675-54-3
Other Names	Epoxy resin potting compound
MF	C21H24O4
EINECS No.	216-823-5
Classification	Double Components Adhesives
Main Raw Material	EPOXY
Usage	Electrical insulation
Type	Epoxy Resin Compound

Product Description

Bicomponent epoxy resin system/liquid designed for APG and conventional casting processes under vacuum. Features excellent splitting resistance and heat resistance with TG: 70-90℃.

Formulation

Component	Code	Quantity
Epoxy resin	LE-8216F	100pbw
Hardener	LH-8217F	100pbw
Accelerator	Lz-622	0-0.2pbw
Filling	Silica flour (SIO2)	300-350pbw
Color paste	LC-series	3pbw

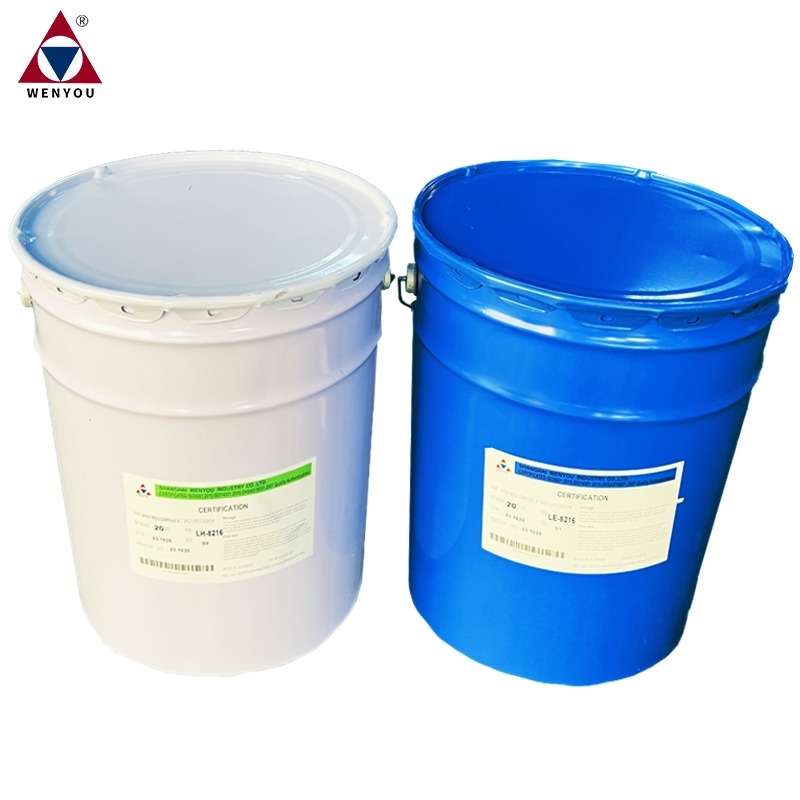

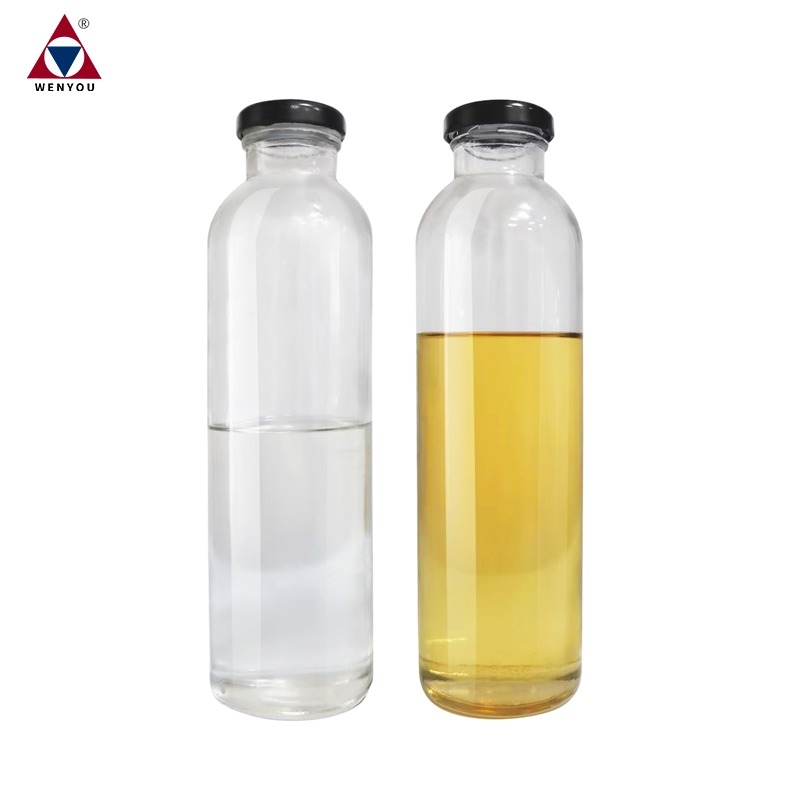

Product Images

Technical Advantages

Our epoxy resin with superior chemical stability facilitates the long-term operation of voltage transformers in complex environments. Key benefits include:

Excellent corrosion resistance against chemical substances, acid rain, and salt spray
Forms stable protective film on transformer components
Extends service life of electrical equipment
Maintains electrical performance in harsh conditions
Ideal for coastal areas with high salt content

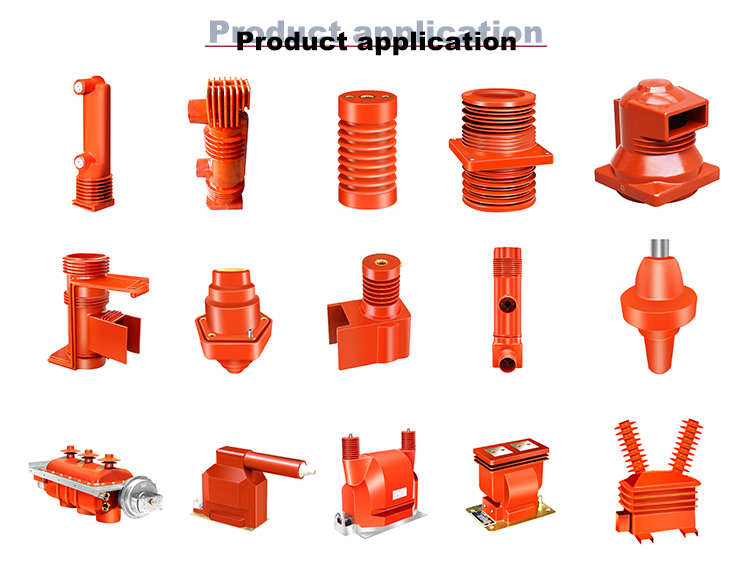

Applications

Wenyou products are widely used in:

10-1100KV high voltage electrical insulation
High voltage switch insulation parts
Mutual inductors and transformers
Reactors and electronic components
Both vacuum pressure casting and APG technologies
