Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
8217F
LE-8217F is a modified BPA (bisphenol A) epoxy resin, paired with LH-8217F, a liquid modified carboxylic anhydride hardener. This system is designed for applications requiring precise dimensional stability in electric insulators.
This epoxy resin is suitable for medium and high voltage electrical insulators, including various insulators, transformers, and insulation products.
Processing can be accomplished using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods can be customized to meet the client's existing manufacturing practices.
This two-component system is a saturated cyclic epoxy resin without pre-mixed fillers, remaining in liquid form at room temperature. It features low curing shrinkage, ensuring good dimensional stability, excellent processing characteristics, and superior mechanical and electrical properties.
Formulation
| Epoxy resin | LE-8217F | 100 pbw |
| Hardener | LH-8217F | 100 pbw |
| Filler | Silica powder | 300 - 350 pbw |
| Color paste | LC series * | 3 pbw |
Advantage

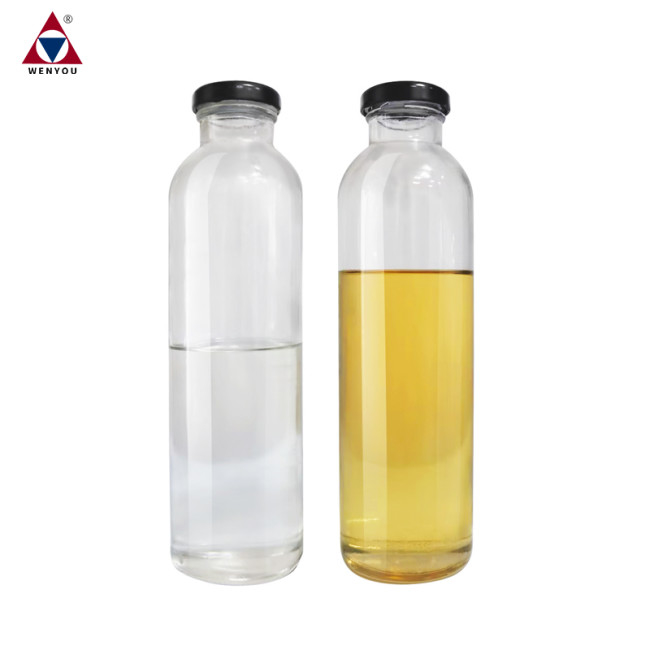

Package Image

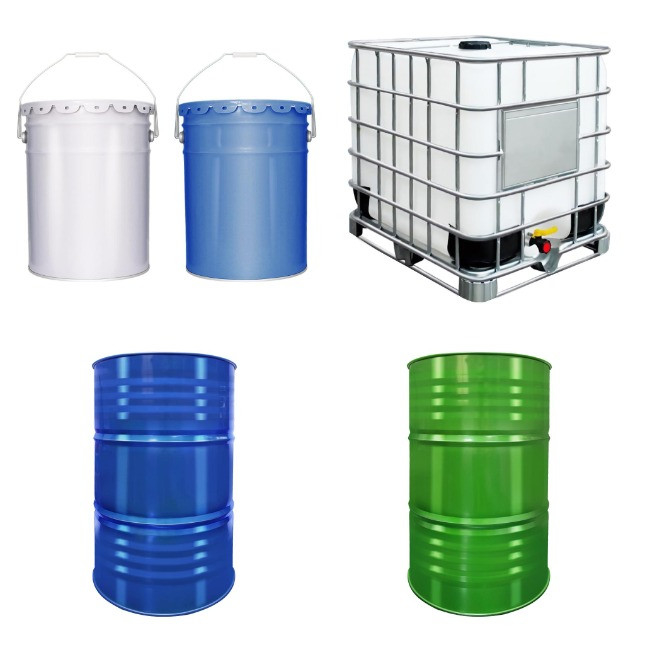

Shipment image

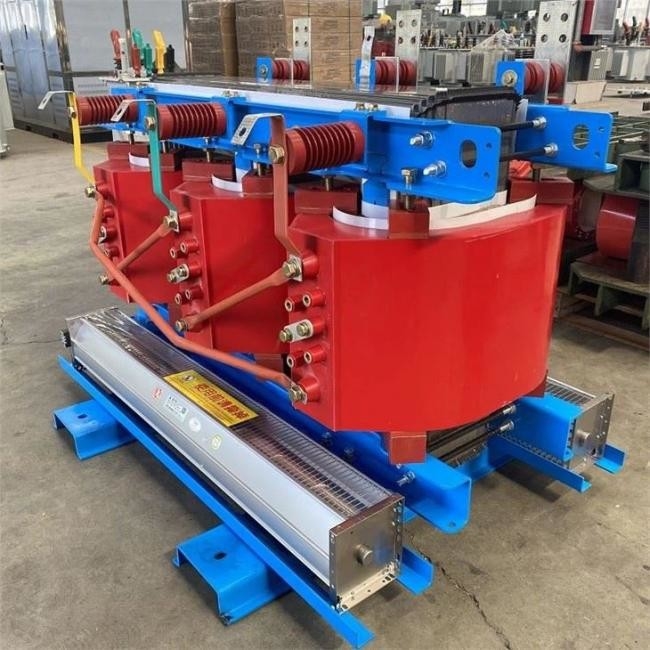

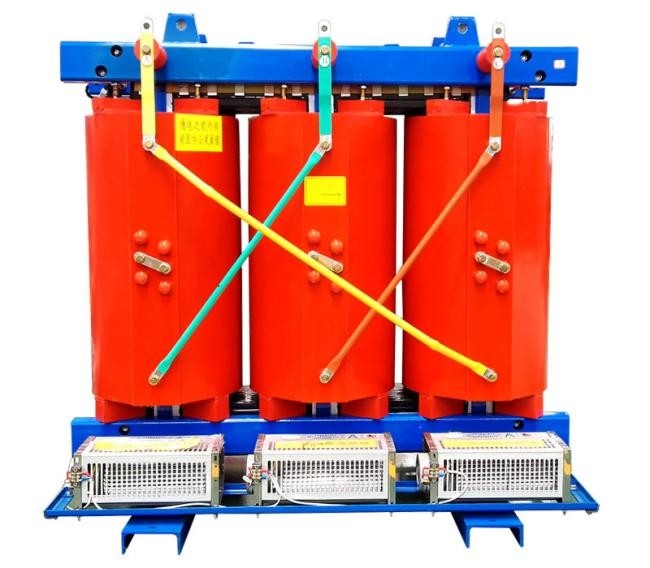

Example application image
