Name: Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9214G
Price: 2.30 USD
Availability: InStock

Home > products > Electrial Insulating Epoxy Resin >

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process

Low Viscosity Casting Epoxy Resin

Easy to Process Casting Epoxy Resin

Precise Transformer Coil Casting Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9214G

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Transformers, And Other Insulation Products

Application:

Indoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Transparent Viscous Liquid

Viscosity At 25°C:

9000 - 14500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 135°C

Epoxy Value:

4.0 - 4.5Eq/kg

Discription:

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation - Easy To Process

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process

Get Best Price

Video

Flame Retardant Casting Epoxy Resin For Transformer Coil Encapsulation Enhanced Safety

Get Best Price

Video

Innovative Nanocomposite Epoxy Resin For Enhanced Insulator Insulation Performance

Get Best Price

Video

High Mechanical Strength Epoxy Resin For Durable Insulators In Demanding Applications

Get Best Price

86-21-64308192

Contact Now

Product Description

Low - Viscosity Casting Epoxy Resin for Precise Transformer Coil Encapsulation - Easy to Process

Achieving precise encapsulation of transformer coils requires a resin that is easy to process, and our low - viscosity casting epoxy resin fits the bill perfectly.

The low viscosity of this epoxy resin allows it to flow freely during the casting process. It can penetrate into the tightest spaces and around the most intricate parts of the transformer coils with ease. This ensures complete and uniform coverage, eliminating any air pockets or voids that could compromise the performance of the encapsulation.

Compared to higher - viscosity resins, our low - viscosity product is much easier to handle. It requires less force to pour and spread, making the manufacturing process more efficient. This also reduces the risk of errors during the casting, such as uneven distribution of the resin.

Even though it has a low viscosity, the resin still cures to form a strong and durable encapsulation. It provides reliable electrical insulation and mechanical protection to the transformer coils. The low - viscosity nature of the resin also makes it suitable for use in automated casting systems, as it can be precisely dispensed and controlled. With our low - viscosity casting epoxy resin, manufacturers can achieve high - quality, precise transformer coil encapsulation while streamlining their production processes.

Brief Introduction

LE-9214G is a modified BPA (bisphenol A) epoxy resin, paired with LH-9214G, a liquid modified carboxylic anhydride hardener. This insulation epoxy resin is a top choice in the power industry for high voltage insulators.

Applications

Ideal for indoor use, this epoxy resin is suitable for medium and high voltage electrical insulators, including transformers and various insulation products.

Processing Methods

The material can be processed using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods can be adjusted to align with the client's existing manufacturing practices.

Properties

This two-component system is a saturated cyclic epoxy resin without pre-mixed fillers, remaining liquid at room temperature. It offers excellent thermal shock resistance, superior environmental stability, and exceptional mechanical and dielectric properties.

Formulation

Epoxy resin	LE-9214G	100 pbw
Hardener	LH-9214G	100 pbw
Filler	Silica powder	270-300 pbw
Color paste	LC series *	3 pbw

Advantage

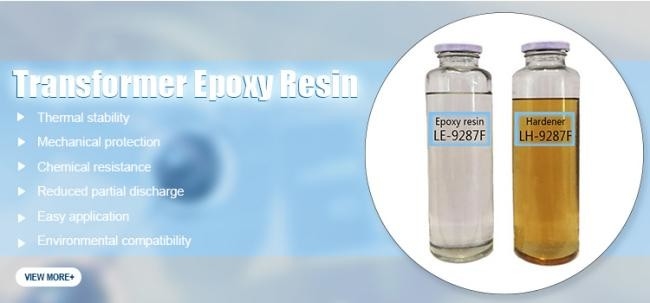

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process 0

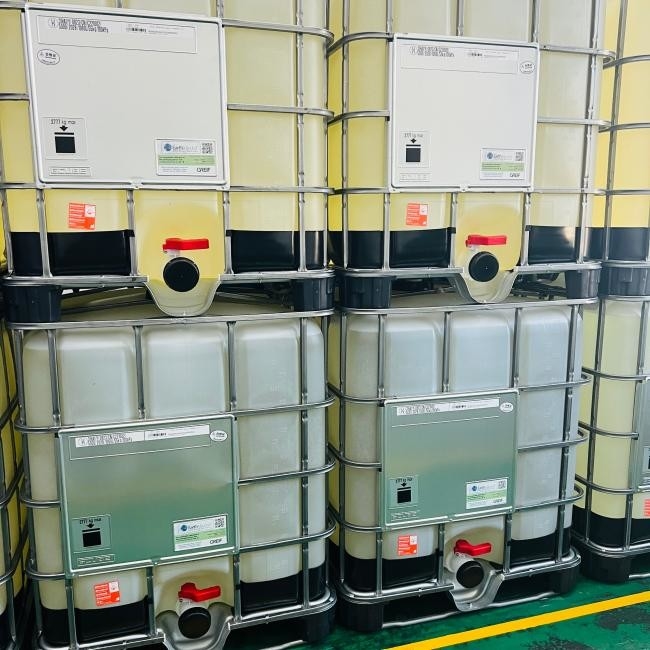

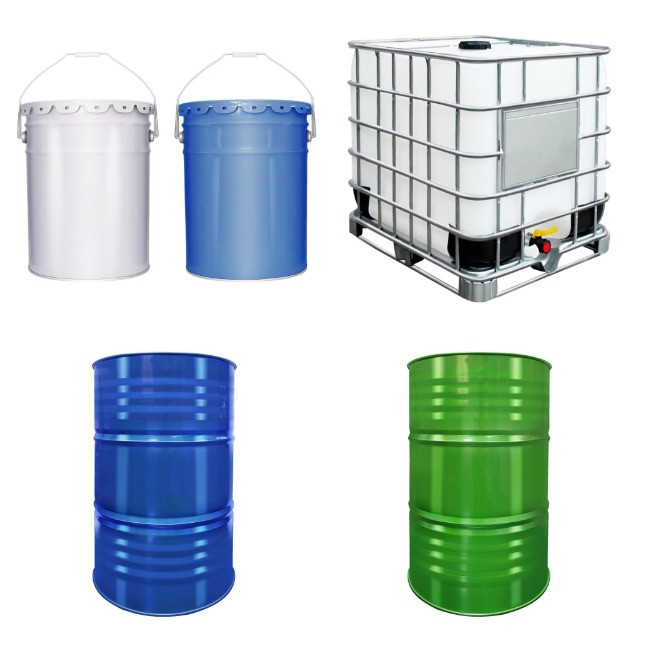

Package Image

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process 1

Shipment image

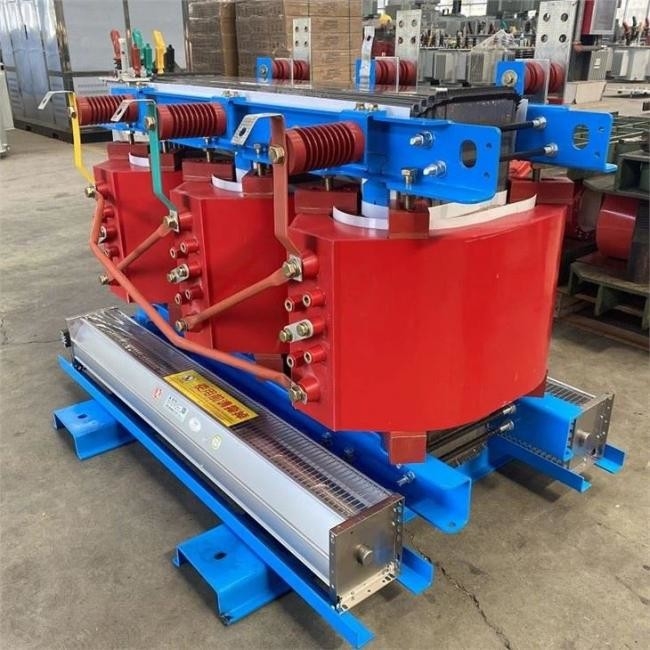

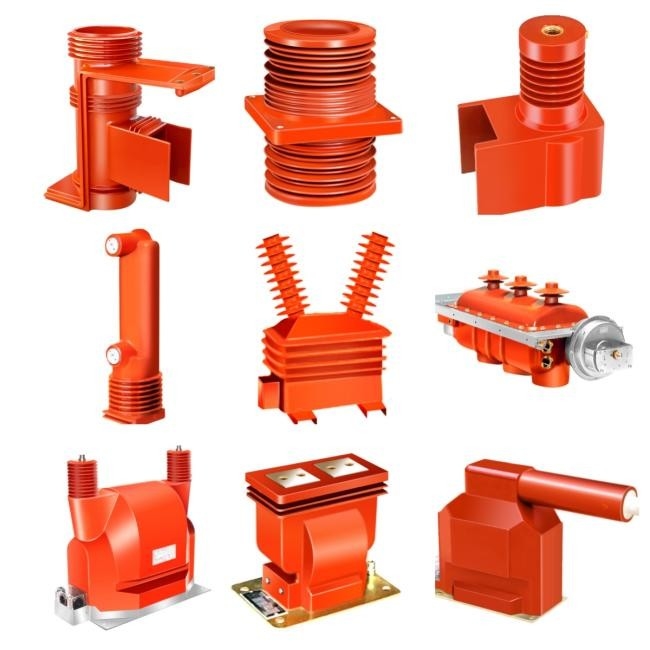

Example application image

Low Viscosity Casting Epoxy Resin For Precise Transformer Coil Encapsulation Easy To Process 3
