Name: CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9229A
Price: 2.30 USD
Availability: InStock

Home > Products > Electrial Insulating Epoxy Resin >

CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance

crack resistance epoxy resin

CT PT transformer epoxy resin

electric insulation epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9229A

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

10-35KV Sealed Terminal Posts, Transformers, Current Transformers, And Other Insulation Components

Application:

Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Milky White Viscous Liquid

Viscosity At 40°C:

10000 - 20000mPa.s

Density At 25°C:

1.55 - 1.70g/cm3

Vapor Pressure At 25°C:

< 0.01Pa

Flash Point:

Around 135°C

Discription:

CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance Resina Epoxica

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

Get Best Price

Video

High Dielectric Strength Epoxy for CT/PT Insulation & Room Temp Encapsulation

Get Best Price

Video

Fast Room Temp Cure Epoxy Resin for CT / PT Transformer Potting & Encapsulation

Get Best Price

Video

Low Viscosity Flame Retardant Epoxy for Void-Free Transformer Coil Impregnation

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

CT PT transformer electric insulation epoxy resin crack resistance resina epoxica

LW-9229A is a modified BPA (bisphenol A) type epoxy resin with pre-mixed fillers.

LW-9229B is a modified carboxylic anhydride hardener with pre-mixed fillers.

Applications

Electrical insulators for medium and high voltage applications, such as 10-35KV sealed terminal posts, transformers, current transformers, and other insulation components.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system with pre-mixed fillers, slurry liquid at room temperature.

Excellent resistance to thermal shock with superior crack resistance.

Formulation

Epoxy resin	LE-9229A	100 pbw
Hardener	LH-9229B	100 pbw
Color paste	LC series *	1 pbw

Advantage

CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance 0

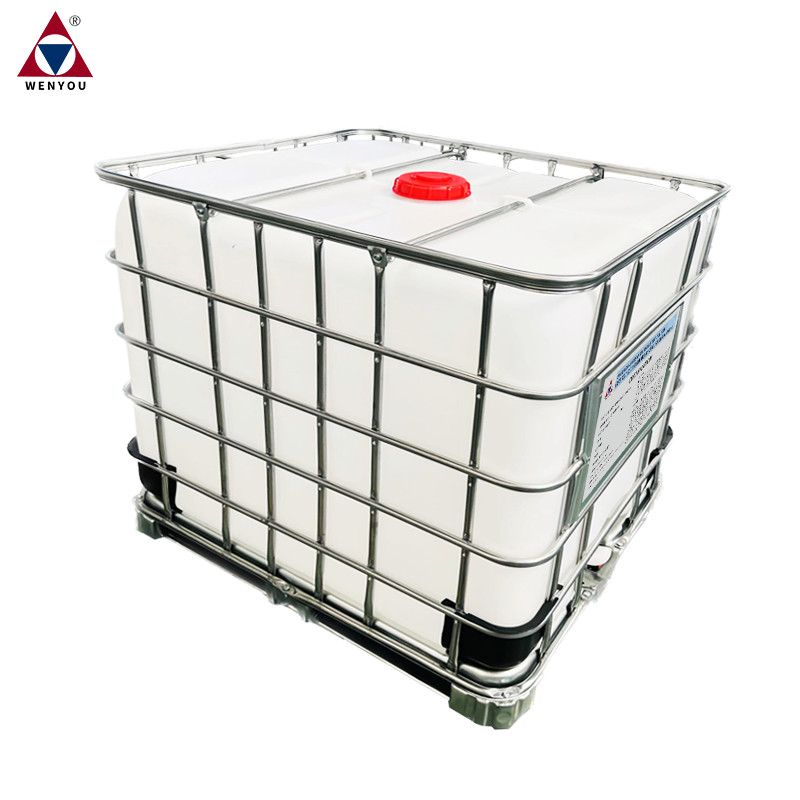

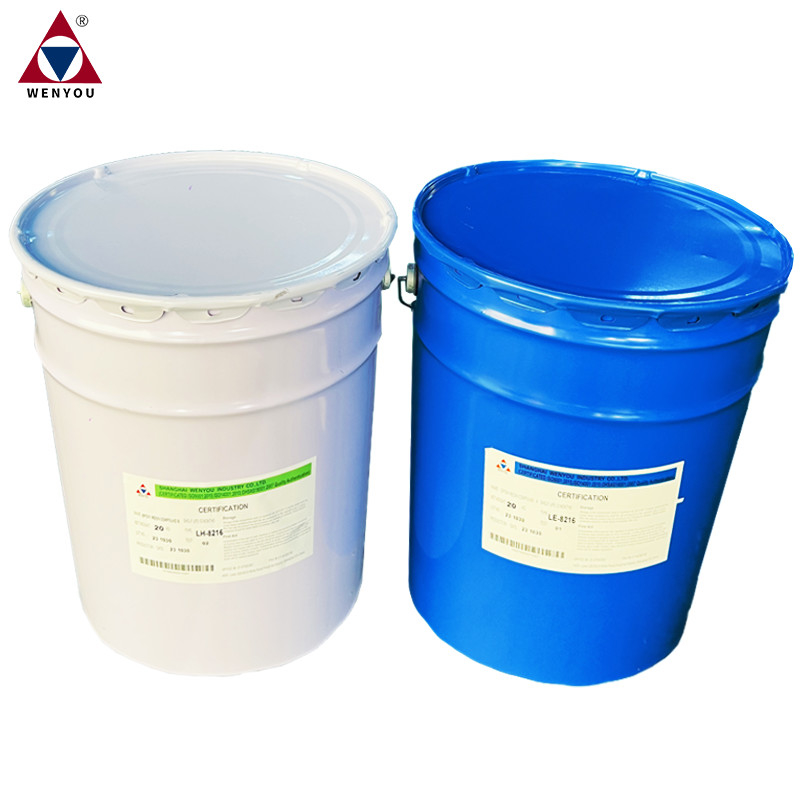

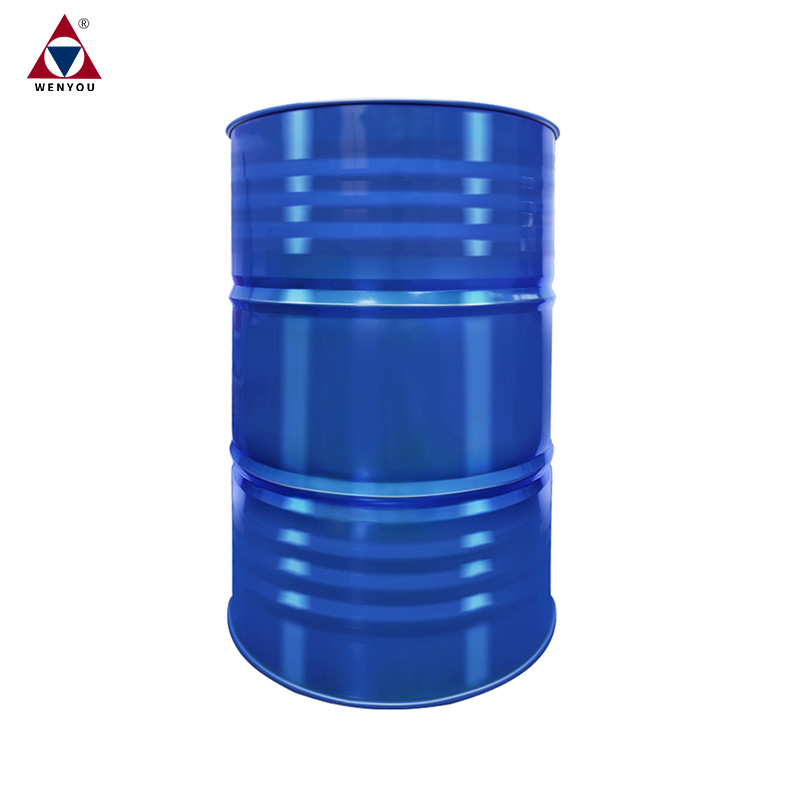

Package Image

CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance 1

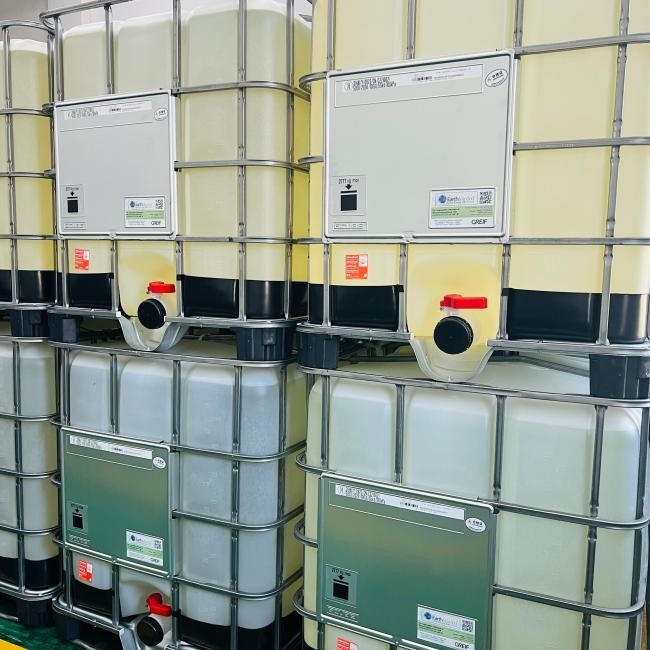

Shipment image

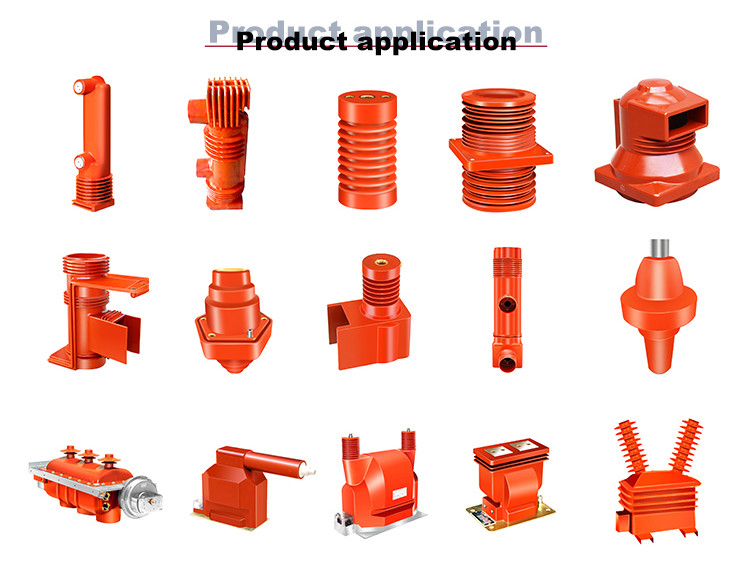

Example application image

CT PT Transformer Electric Insulation Epoxy Resin Crack Resistance 3
