Name: Electrical Insulators Thermal Shock Resistant Epoxy Resin APG Process Curing Agent
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9215
Price: 2.30 USD
Availability: InStock

Home > Products > Electrial Insulating Epoxy Resin >

Electrical Insulators Thermal Shock Resistant Epoxy Resin APG Process Curing Agent

Epoxy Resin for Electrical insulators

thermal shock resistant Insulating Epoxy Resin

APG process curing agent

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9215

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

12kV - 40.5kV Contact Boxes, Insulators, And Other Related Products

Application:

Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Transparent Viscous Liquid

Viscosity At 25°C:

9000 - 14500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 135°C

Epoxy Value:

5.0 - 5.3Eq/kg

Discription:

Electrical Insulators Thermal Shock Resistant Resina Epoxica APG Process Curing Agent

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

Get Best Price

Video

High Dielectric Strength Epoxy for CT/PT Insulation & Room Temp Encapsulation

Get Best Price

Video

Fast Room Temp Cure Epoxy Resin for CT / PT Transformer Potting & Encapsulation

Get Best Price

Video

Low Viscosity Flame Retardant Epoxy for Void-Free Transformer Coil Impregnation

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

Electrical insulators thermal shock resistant resina epoxica APG process curing agent

LE-9215 is a modified BPA (bisphenol A) type epoxy resin.

LH-9215 is a liquid modified carboxylic anhydride hardener.

Applications

Electrical insulators for medium and high voltage applications, such as 12kV - 40.5kV contact boxes, insulators, and other related products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Excellent resistance to thermal shock, superior mechanical and dielectric properties.

Formulation

Epoxy resin	LE-9215	100 pbw
Hardener	LH-9215	100 pbw
Filler	Silica powder	300-400 pbw
Color paste	LC series *	3 pbw

Advantage

Electrical Insulators Thermal Shock Resistant Epoxy Resin APG Process Curing Agent 0

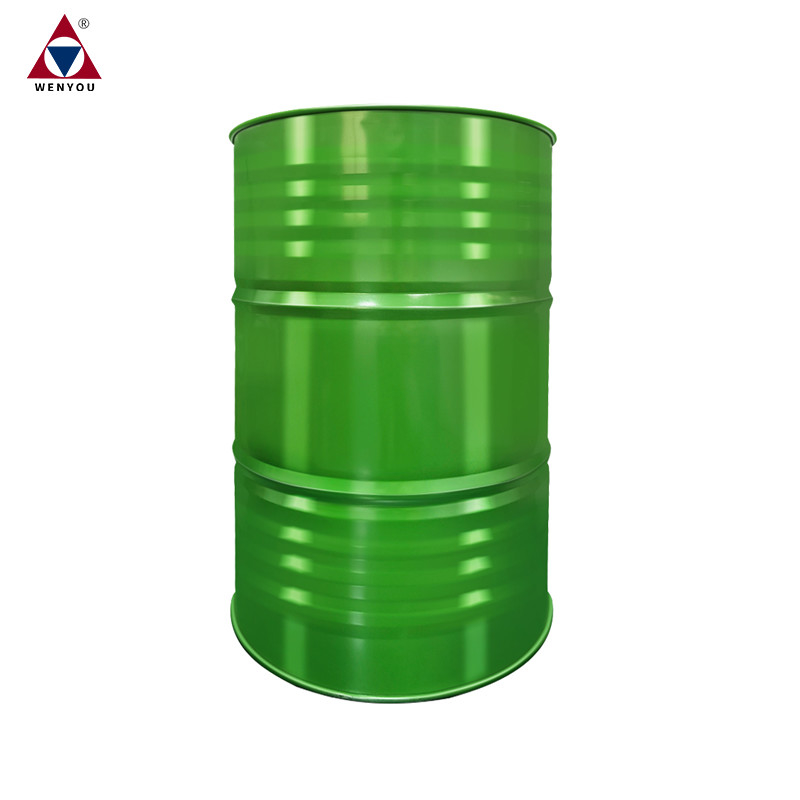

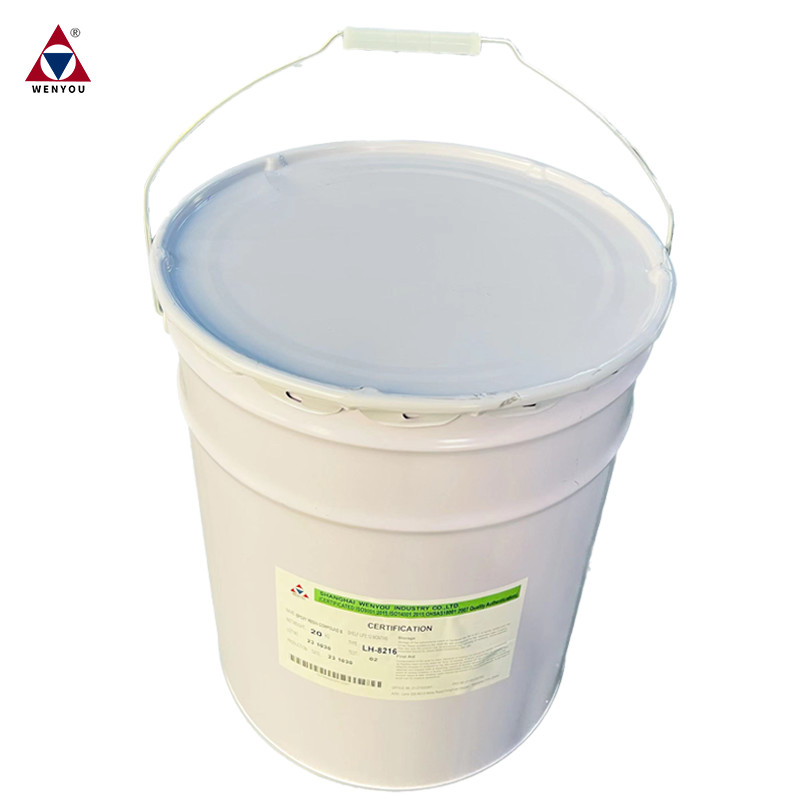

Package Image

Electrical Insulators Thermal Shock Resistant Epoxy Resin APG Process Curing Agent 1

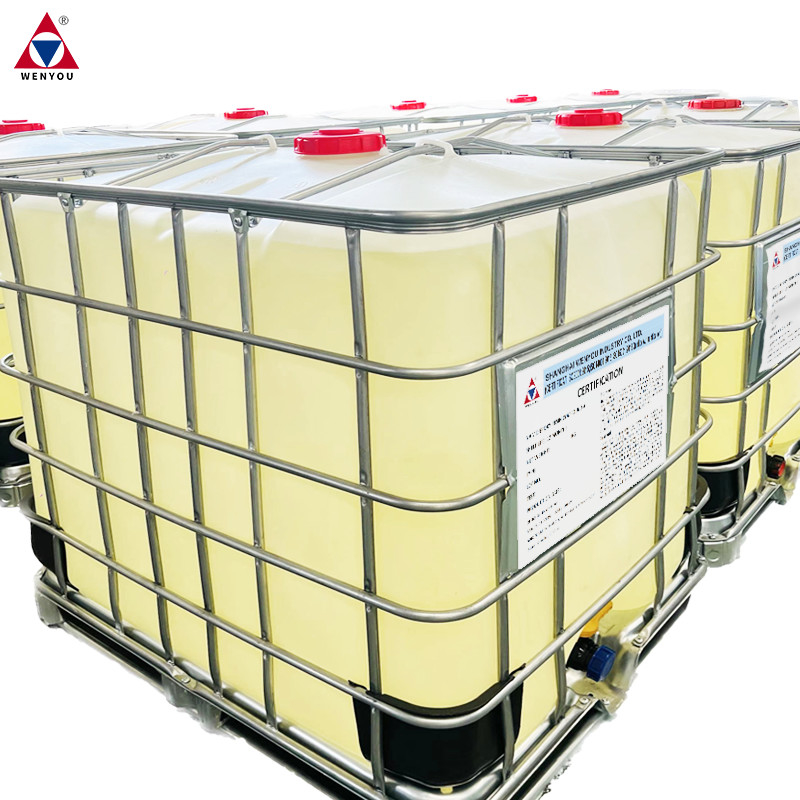

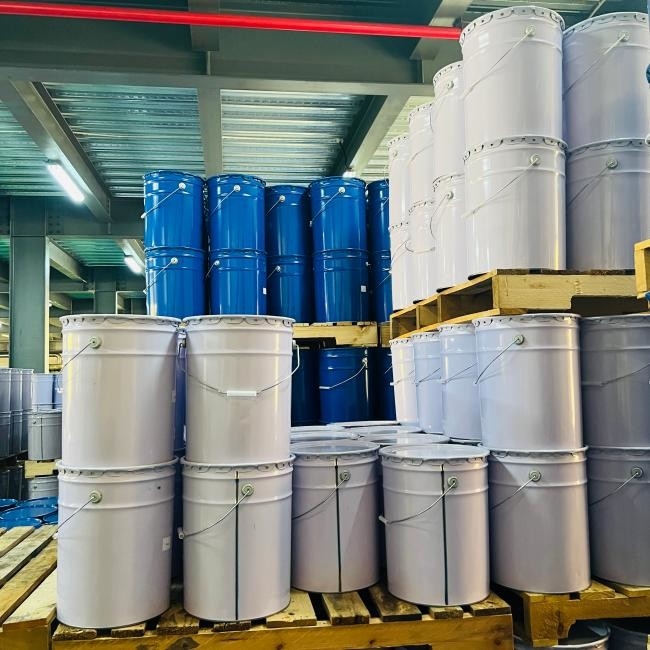

Shipment image

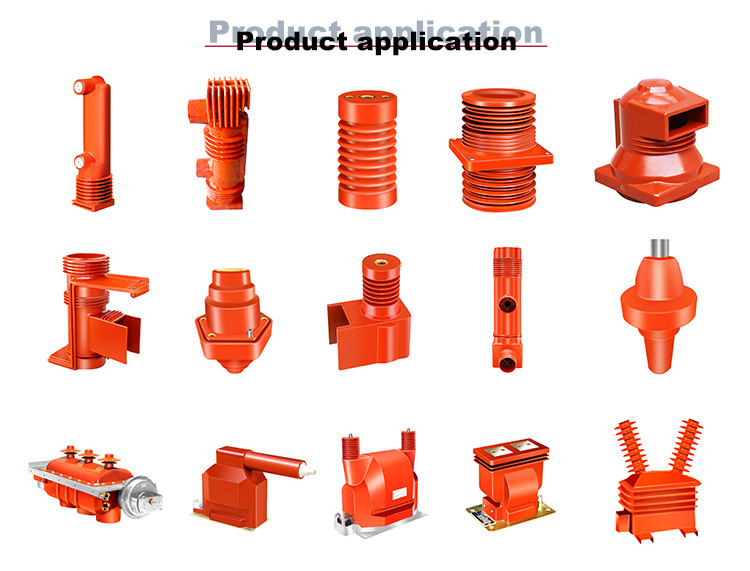

Example application image

Electrical Insulators Thermal Shock Resistant Epoxy Resin APG Process Curing Agent 3
