Name: Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9214G
Price: 2.30 USD
Availability: InStock

Home > Products > Electrial Insulating Epoxy Resin >

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density

Indoor electrical insulators liquid epoxy resin

Liquid epoxy resin for electrical insulators

Indoor electrical insulators casting epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9214G

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Transformers, And Other Insulation Products

Application:

Indoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Transparent Viscous Liquid

Viscosity At 25°C:

9000 - 14500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 135°C

Epoxy Value:

4.0 - 4.5Eq/kg

Discription:

Indoor Electrical Insulators Casting Resina Epoxica Liquid Epoxy Resin

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

Get Best Price

Video

High Dielectric Strength Epoxy for CT/PT Insulation & Room Temp Encapsulation

Get Best Price

Video

Fast Room Temp Cure Epoxy Resin for CT / PT Transformer Potting & Encapsulation

Get Best Price

Video

Low Viscosity Flame Retardant Epoxy for Void-Free Transformer Coil Impregnation

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

Indoor electrical insulators casting resina epoxica liquid epoxy resin

LE-9214G is a modified BPA (bisphenol A) type epoxy resin.

LH-9214G is a liquid modified carboxylic anhydride hardener.

Applications

Indoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.

Excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.

Formulation

Epoxy resin	LE-9214G	100 pbw
Hardener	LH-9214G	100 pbw
Filler	Silica powder	270-300 pbw
Color paste	LC series *	3 pbw

Advantage

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density 0

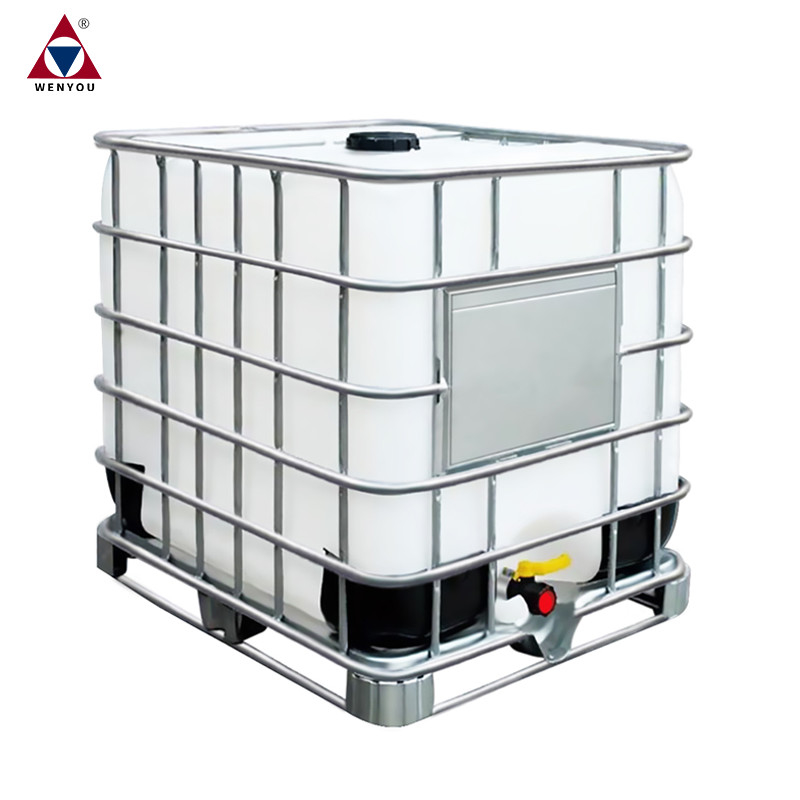

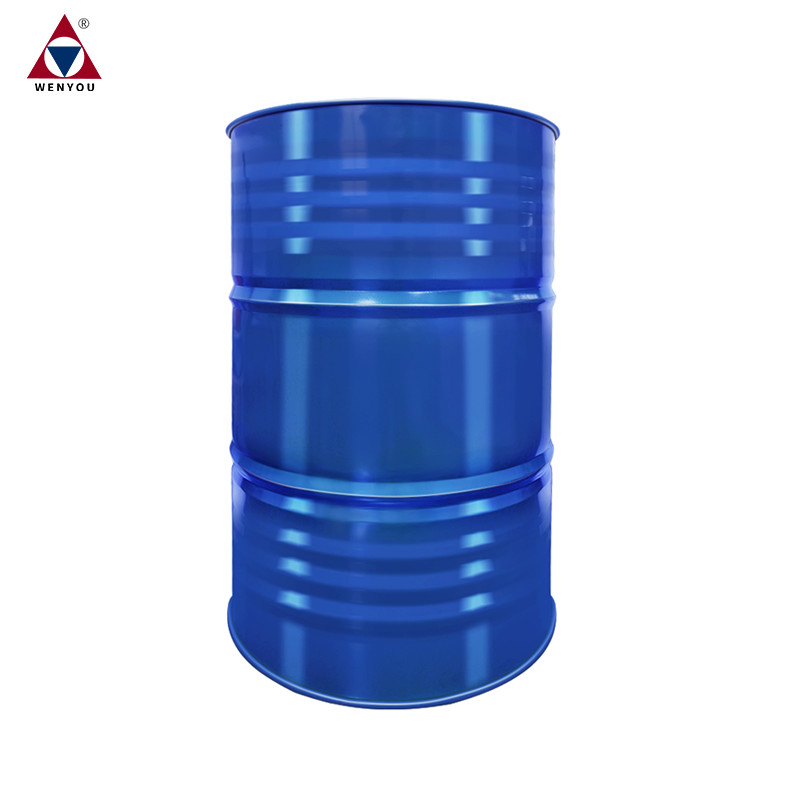

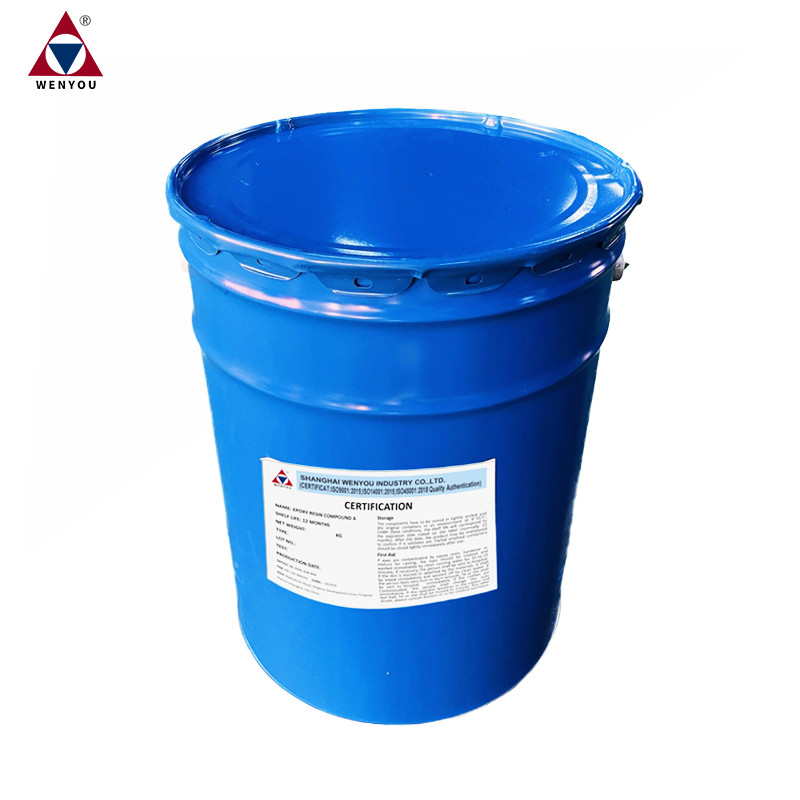

Package Image

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density 1

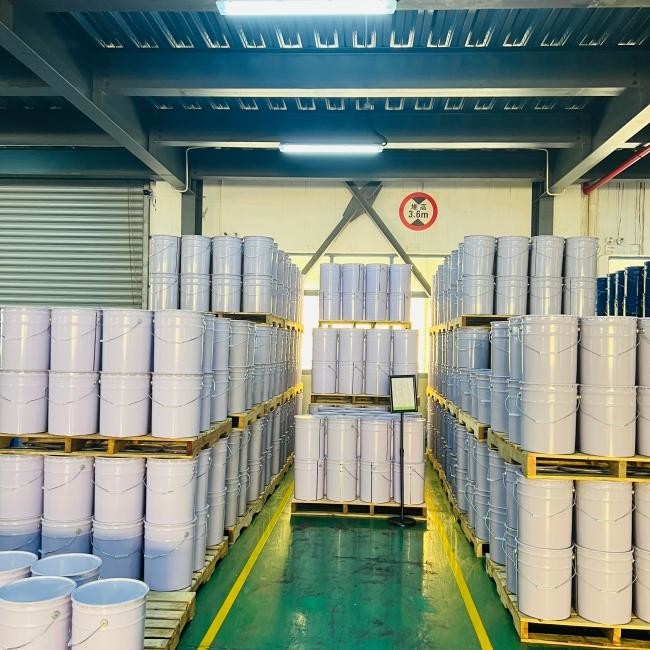

Shipment image

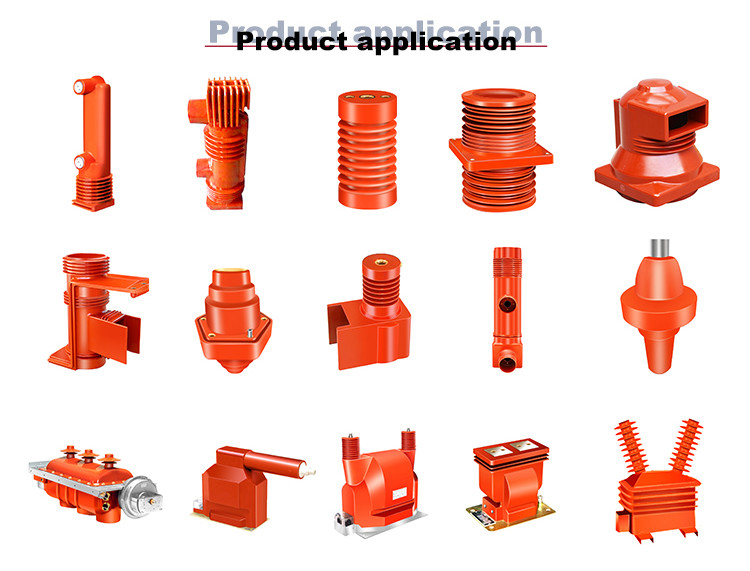

Example application image

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density 3
