Name: UL 94 V-0 Certified Crystal Clear Epoxy Potting Resin with Room-Temperature Cure for Electrical Transformers
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8218A
Price: 2.60 USD
Availability: InStock

Home > Products > Flame Retardant Epoxy Resin >

UL 94 V-0 Certified Crystal Clear Epoxy Potting Resin with Room-Temperature Cure for Electrical Transformers

UL 94 V-0 Certified Epoxy Potting Resin

Crystal Clear Epoxy Potting Resin

Room-Temperature Cure Flame Retardant Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8218A

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulation Products, Connectors, Etc.

Application:

Various Products Cured At Room Temperature

Appearance Of Epoxy Resin:

Red Viscous Liquid

Viscosity At 40°C:

20000 - 40000mPa.s

Density At 25°C:

1.55 - 1.70g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 135°C

Discription:

Electronic Connectors Crystal Clear Epoxy Resin Hand Pouring Curing Agent

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T,L/C

Supply Ability

Plenty of raw material in stock

Flame Retardant Epoxy Resin Potting Compound with Alicyclic Saturated Structure Light Yellow Color and Excellent Environmental Performance

Get Best Price

ISO9001 Certified Flame Retardant Epoxy Resin for 10-35kv Applications with Milky White Sticky Liquid

Get Best Price

Flame Retardant Epoxy Resin Potting Compound with TG:80-100℃ ISO9001 Certified for Vacuum Casting

Get Best Price

Flame Retardant APG Epoxy Resin for Electrical Insulating Parts with 130-150°C Mold Temperature and 10-30mins Gelation Time

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

UL 94 Flammability V-0 Fire-Resistant Epoxy Potting Resin for Electrical Transformers & Coils

LW-8128A/LH-8116: UL 94 V-0 Crystal Clear Epoxy Potting Resin for Electronic Connectors | Hand-Pour Application

Product Overview

LW-8128A/LH-8116 is a premium two-component, crystal clear epoxy potting system engineered for hand-pour encapsulation of sensitive electronics. Featuring UL 94 V-0 flame resistance, modified PBA epoxy resin (LW-8128A), and a modified amine hardener (LH-8116), this system delivers exceptional clarity, electrical insulation, and fire safety for electronic connectors, sensors, and micro-transformers. With room-temperature curing and vacuum-compatible processing, it ensures bubble-free protection against moisture, chemicals, and thermal stress.

Key Features & Benefits

Property	Specification	Benefit
Flame Resistance	UL 94 V-0 Certified	Prevents fire propagation in electrical failures
Clarity	Crystal Clear (Custom Color Options)	Aesthetic transparency for visual inspection of components
Curing	Room-Temperature Cure	Energy-efficient processing; no ovens required
Processing	Hand-Pour or Vacuum Casting	Flexible for low-volume batches or precision vacuum impregnation
Electrical Safety	High Dielectric Strength	Reliable insulation for connectors operating under electrical stress
Compatibility	Pre-Mixed Fillers & Color Paste	Uniform consistency; reduces mixing errors

Applications

Ideal for encapsulating:

Electronic connectors (signal, power, PCB headers)
Miniature transformers and inductors
Sensor modules and LED arrays
Insulation bobbins and coil terminals
Wearable electronics and IoT devices

Technical Specifications

Epoxy Resin	LW-8128A (100 pbw)
Curing Agent	LH-8116 (20-25 pbw)
Color Paste	LC Series (1 pbw, optional)
Viscosity	Paste Consistency (25°C)
Pot Life	40-60 minutes (25°C)
Cure Time	24-48 hours (25°C)
Hardness (Shore D)	≥85
Certification	UL 94 V-0 Flame Rating

Processing Guide

Mixing: Blend LW-8128A resin and LH-8116 hardener at 100:22.5 pbw (default ratio). Add LC-series color paste if required.
Degassing: Vacuum degas mixture (recommended for bubble-free clarity).
Pouring: Hand-pour or gravity-cast over components.
Curing: Cure 24h at 25°C (accelerated curing at 60°C optional).

Why Choose This System?

Flame Safety: Meets stringent UL 94 V-0 standards for electronics in high-risk environments
Ease of Use: Paste consistency simplifies manual application without sagging
Optical Clarity: Maintains component visibility for QC inspections
Adaptable: Integrates with existing hand-pour or vacuum production lines

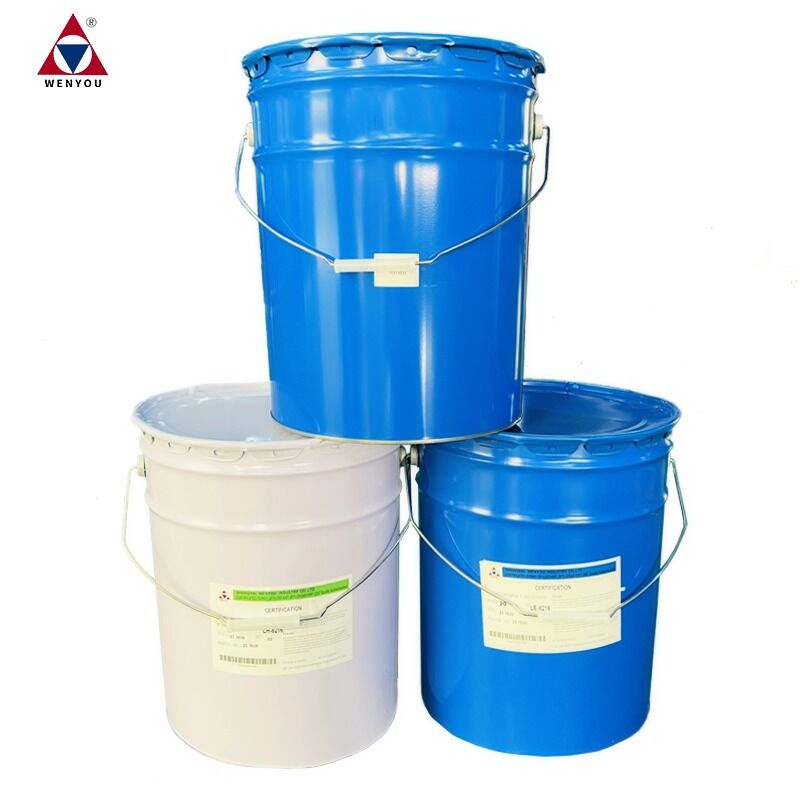

Package Image

Shipment Image

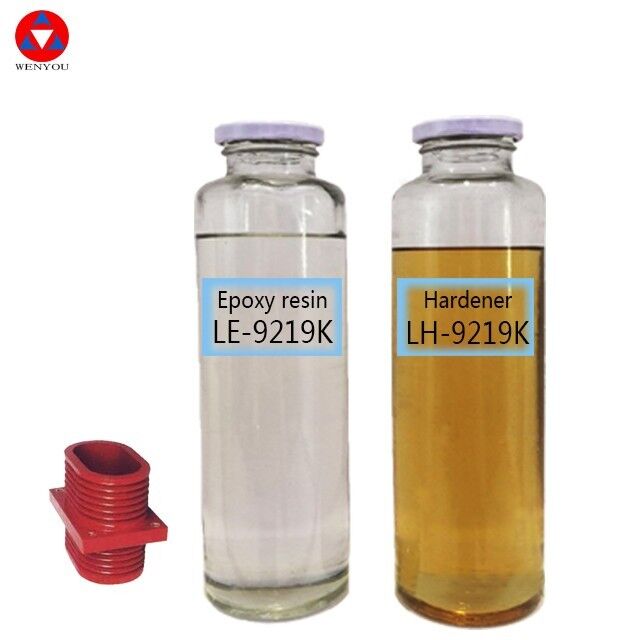

Example Application Image
