Name: High Tg (>150°C) UL 94 V-0 Flame Retardant Epoxy Encapsulant with Weather Resistance for Outdoor Transformer Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9265
Price: 2.30 USD
Availability: InStock

Home > Products > Outdoor Epoxy Resin >

High Tg (>150°C) UL 94 V-0 Flame Retardant Epoxy Encapsulant with Weather Resistance for Outdoor Transformer Insulation

High Tg Epoxy Encapsulant

UL 94 V-0 Epoxy Resin System

Weather Resistance Outdoor Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9265

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

12kV-40.5kV Contact Boxes, Insulators, Bushings, And Other Insulation Products.

Application:

Outdoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Transparent Viscous Liquid

Appearance Of Hardener:

Light Yellow Transparent Liquid

Viscosity At 25°C:

7500 - 13500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 135°C

Description:

Epoxy Resin With Curing Agent To Produce Power Industrial CT PT Transformer Insulator Bushing

Epoxy Value:

5.1 - 5.5Eq/kg

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally L/C,T/T

Supply Ability

Plenty of raw material in stock

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Get Best Price

Hydrolytically Stable Epoxy Resin for Electrical Insulation

Get Best Price

Video

High Tg Flame Retardant Epoxy Encapsulant for Transformer Insulation & Protection

Get Best Price

Video

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

LE-9265/LH-9265: High Tg UL 94 V-0 Epoxy for HV Insulators & Bushings

Modified cycloaliphatic epoxy resin system engineered for high-voltage insulators, bushings, and contact boxes (12-40.5 kV). Combining UL 94 V-0 flame resistance, extreme weather durability, and high thermal stability (Tg >150°C), this unfilled liquid resin delivers void-free insulation for outdoor power infrastructure.

Key Features & Benefits

Property	Advantage
Weather Resistance	Withstands UV, humidity, and pollution - ideal for outdoor bushings
Flame Safety	UL 94 V-0 certified - prevents fire propagation in electrical faults
Thermal Performance	High Tg (>150°C) + thermal shock resistance - stable under load cycles
Electrical Integrity	CTI >600 V, high dielectric strength - resists tracking/arcing
Processing Flexibility	APG or vacuum casting - integrates with existing production lines
Long-Term Reliability	Resists cracking, hydrolysis, and chemical corrosion

Applications

12-40.5 kV switchgear: Contact boxes, cable terminations
Outdoor bushings & insulators
Transformer bushings and surge arresters
Railway/utility power distribution insulation

Technical Specifications

Components

Component	Part	Ratio (pbw)	Form
Epoxy Resin	LE-9265	100	Liquid (unfilled)
Anhydride Hardener	LH-9265	100	Liquid
Silica Filler	WY-12X	250-270	Optional
Color Paste	LC Series	3	Optional

Cured Properties

Glass Transition Temp (Tg): >150°C
Dielectric Strength: >18 kV/mm
Comparative Tracking Index (CTI): >600 V
UL 94 Rating: V-0
Thermal Shock Resistance: >1,000 cycles (-40°C to +125°C)

Processing Methods

Automatic Pressure Gelation (APG): Fast, low-waste production for high-volume insulator molding
Vacuum Gravity Casting: Bubble-free encapsulation for complex bushing geometries

Why Choose This System?

Weatherproof: Cycloaliphatic base resists yellowing/erosion in harsh environments
Safety Compliance: Meets UL 94 V-0, IEC 60137, and ASTM D2303 standards
Customizable: Adjust filler ratios (WY-12X) for viscosity/mechanical needs
Zero Voids: Ensures partial discharge-free insulation for HV applications

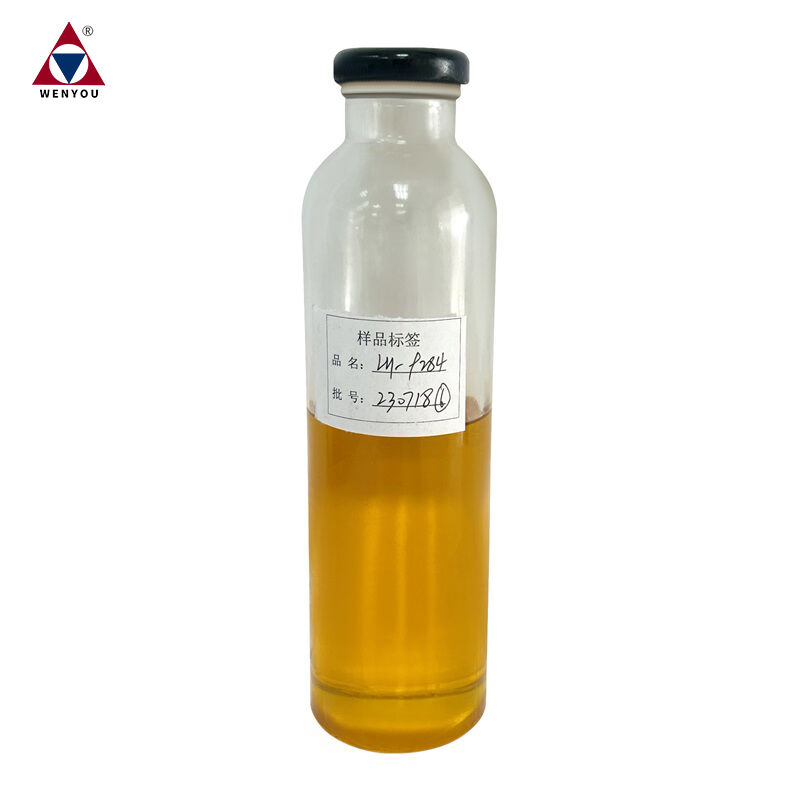

Product Images

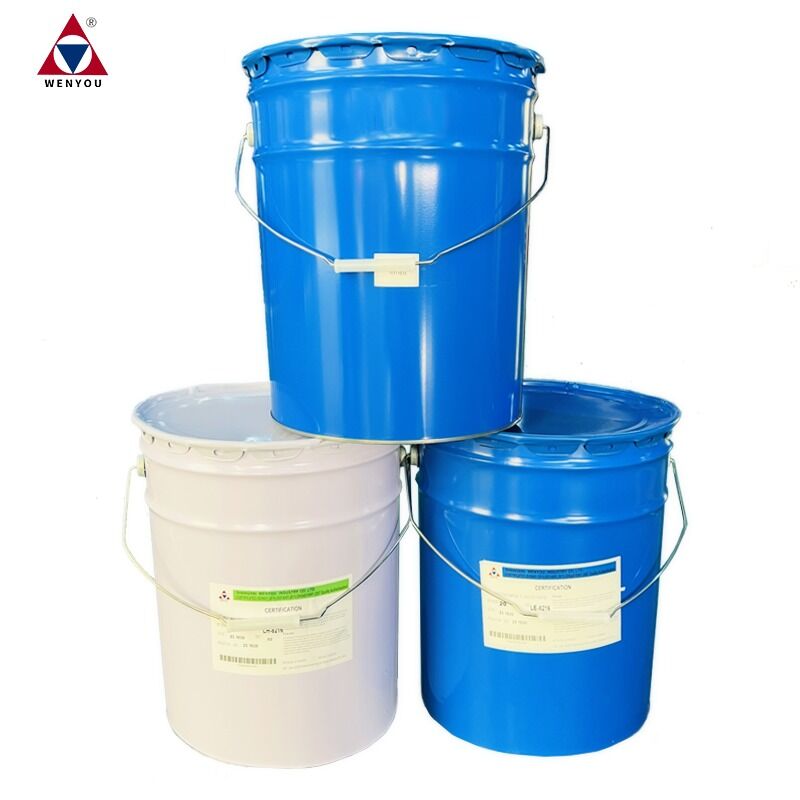

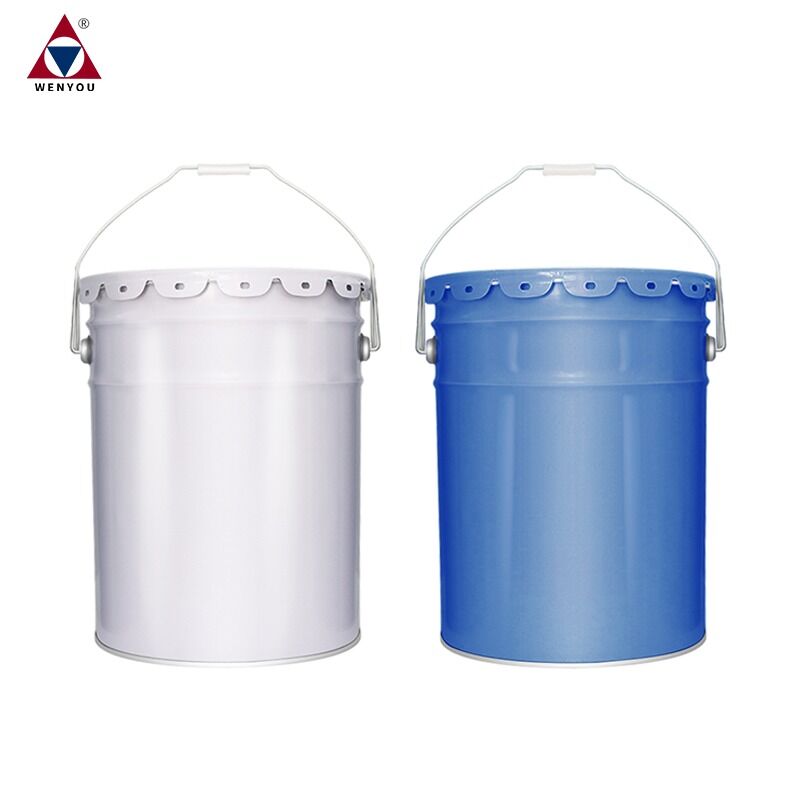

Product Packaging

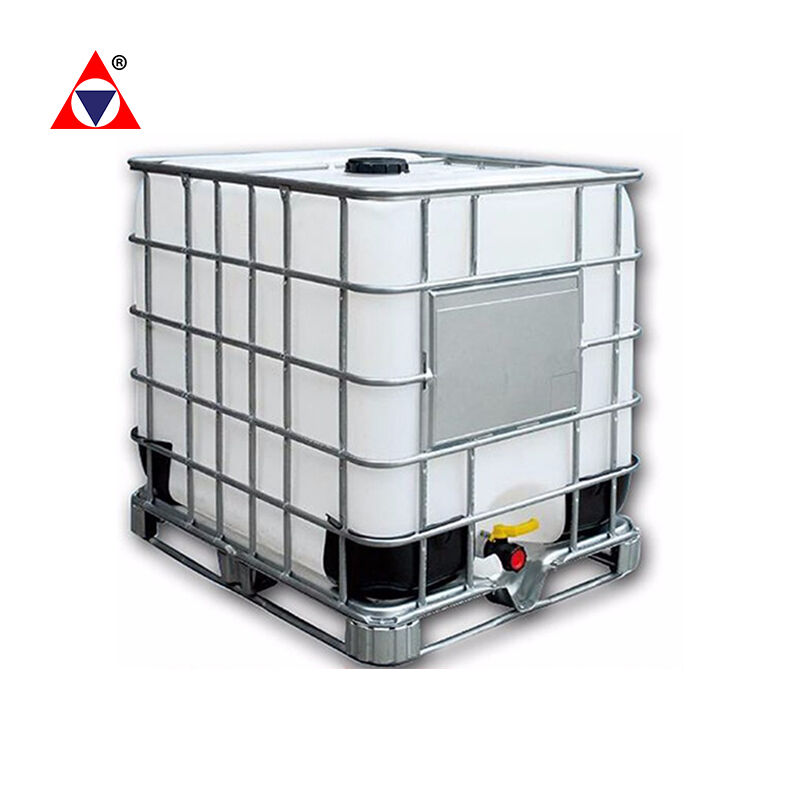

Shipment Packaging

Example Application
