Name: Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8517
Price: 2.30 USD
Availability: InStock

Home > Products > Outdoor Epoxy Resin >

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8517

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Transformers, And Other Insulation Products

Application:

Outdoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Light Yellow Transparent Viscous Liquid

Viscosity At 25°C:

1000 - 2500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

< 0.01Pa

Flash Point:

Around 135°C

Discription:

Flexible Casting Epoxy Resin For Transformer Coil Encapsulation - Adaptable To Different Conditions

Epoxy Value:

4.5 - 5.0Eq/kg

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

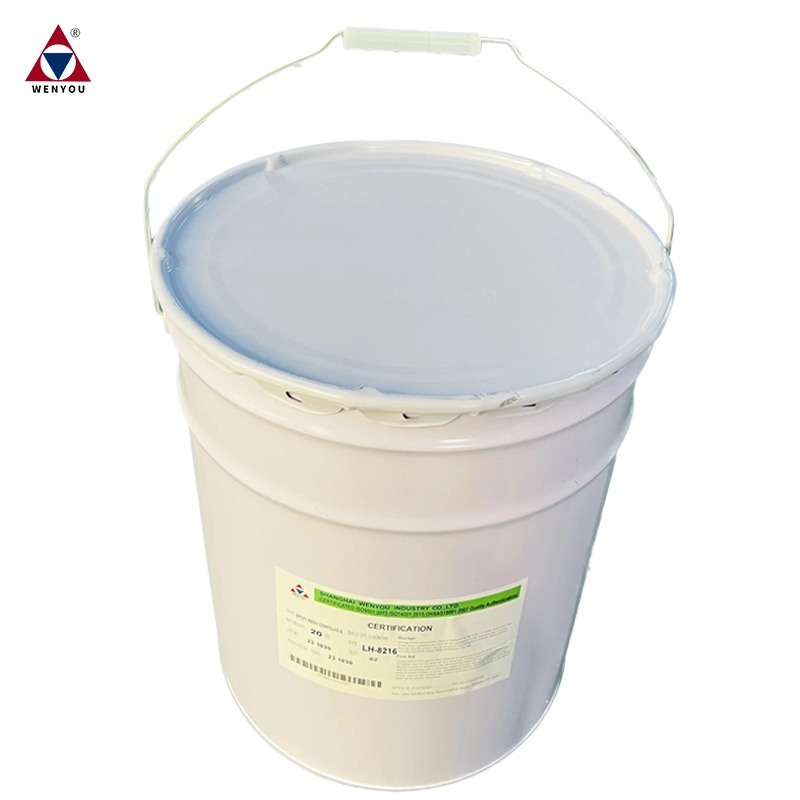

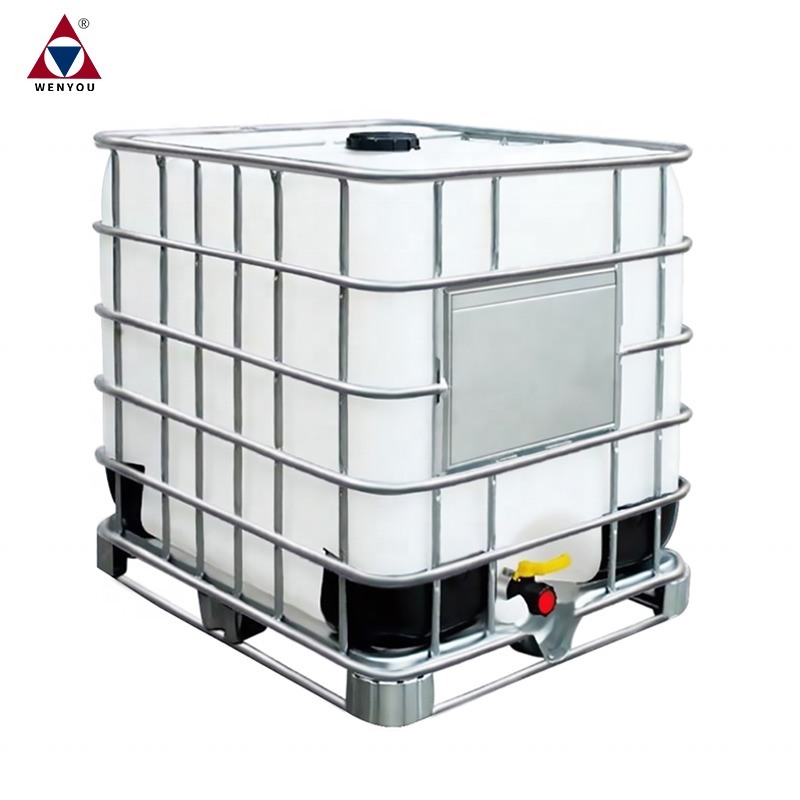

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T,L/C

Supply Ability

Plenty of raw material in stock

Hydrolytically Stable Epoxy Resin for Electrical Insulation

Get Best Price

Video

High Tg Flame Retardant Epoxy Encapsulant for Transformer Insulation & Protection

Get Best Price

Video

UV - Resistant Epoxy Resin For Long Lasting Outdoor Insulator Performance

Get Best Price

Video

Flexible Casting Epoxy Resin For Transformer Coil Encapsulation Adaptable To Different Conditions

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts

Flexible Casting Epoxy Resin for Transformer Coil Encapsulation

Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.

Key Benefits

Adapts to thermal expansion and contraction without cracking or delamination
Absorbs mechanical vibrations to protect transformer coils
Maintains excellent electrical insulation properties
Provides optimal balance between flexibility and structural strength
Ensures long-term integrity of transformer encapsulation

Product Introduction

LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.

Applications

Designed for outdoor use in medium and high voltage electrical components including:

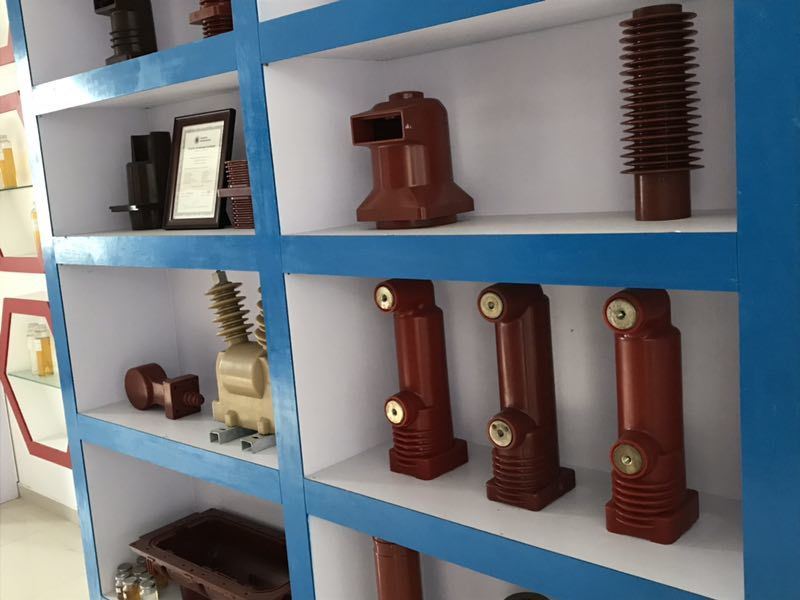

Electrical insulators
Transformers
Various insulation components

Processing Methods

Available processing options include:

Conventional gravity casting method under vacuum
Automatic Pressure Gelation (APG) process

Production methods can be customized to accommodate existing manufacturing techniques.

Material Properties

This two-component system features:

Saturated cyclic epoxy resin without pre-mixed fillers
Remains liquid at room temperature
Excellent UV resistance
Outstanding thermal shock resistance
Superior environmental stability
Exceptional mechanical and dielectric properties

Formulation

Component	Material	Quantity
Epoxy resin	LE-8517	100 pbw
Hardener	LH-8517	100 pbw
Filler	Silica powder	300-360 pbw
Color paste	LC series	3 pbw
