Name: High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8516
Price: 2.30 USD
Availability: InStock

Home > products > Outdoor Epoxy Resin >

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation

Dry Type Transformers Cast Resin

High Thermal Conductivity Cast Resin

Superior Heat Dissipation Cast Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8516

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Transformers, And Other Insulation Products

Application:

Outdoor Electrical Insulators For Medium And High Voltage Applications

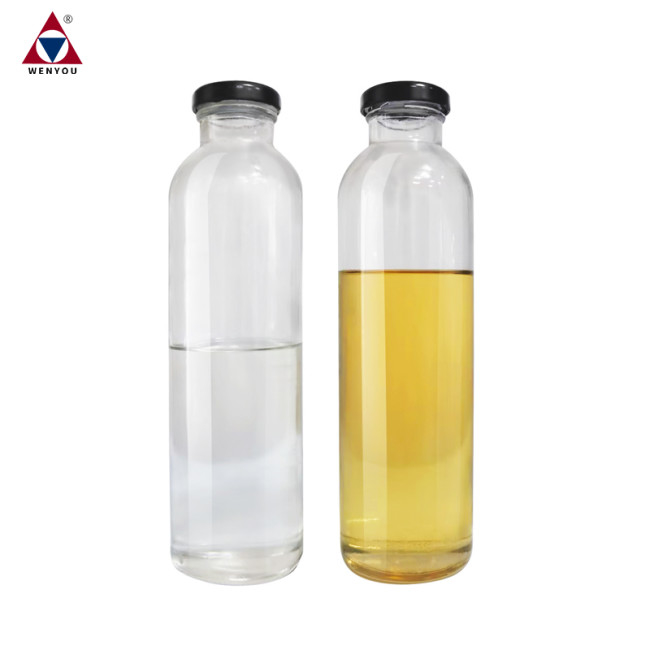

Appearance Of Epoxy Resin:

Light Yellow Transparent Viscous Liquid

Viscosity At 25°C:

500 - 2000mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

≤ 0.01Pa

Flash Point:

Around 135°C

Discription:

High Thermal Conductivity Cast Resin For Dry Type Transformers: Superior Heat Dissipation

Epoxy Value:

4.5 - 5.0Eq/kg

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

Flexible Casting Epoxy Resin For Transformer Coil Encapsulation Adaptable To Different Conditions

Get Best Price

Video

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation

Get Best Price

Video

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation

Get Best Price

Video

Electronic insulators fast curing epoxy hardener vacuum casting resin

Get Best Price

86-21-64308192

Contact Now

Product Description

High - Thermal Conductivity Cast Resin for Dry Type Transformers: Superior Heat Dissipation

Heat management is a critical aspect in the operation of dry type transformers. Our high - thermal conductivity cast resin is engineered to address this issue effectively. The resin has a high thermal conductivity coefficient, which means it can efficiently transfer heat away from the transformer windings. This superior heat dissipation property helps to keep the transformer operating at optimal temperatures, preventing overheating and extending its lifespan. In applications where dry type transformers are under heavy load or in high - temperature environments, such as data centers and industrial plants, the high - thermal conductivity cast resin is invaluable. It ensures that the transformer can handle the heat generated during operation without performance degradation. The resin also has good electrical insulation properties, maintaining the integrity of the electrical system while dissipating heat. By using our high - thermal conductivity cast resin in dry type transformers, you can enhance their reliability and performance, especially in heat - sensitive applications.

Brief Introduction

LE-8516 is a modified saturated cyclic aliphatic epoxy resin system, paired with LH-8516, a modified weather-resistant anhydride hardener. This system serves as a cost-effective alternative to Huntsman epoxy resin while maintaining high quality.

Applications

Designed for outdoor use, this epoxy resin is suitable for medium and high voltage electrical insulators, including insulators, transformers, and various insulation components.

Processing Methods

The material can be processed using a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods can be customized to fit the client’s existing manufacturing practices.

Properties

This two-component system is a saturated cyclic epoxy resin without pre-mixed fillers, remaining liquid at room temperature. It offers excellent UV resistance, outstanding thermal shock resistance, superior environmental durability, and exceptional mechanical and dielectric properties.

Formulation

Epoxy resin	LE-8516	100 pbw
Hardener	LH-8516	100 pbw
Filler	Silica powder	320 - 360 pbw
Color paste	LC series *	3 pbw

Advantage

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation 0

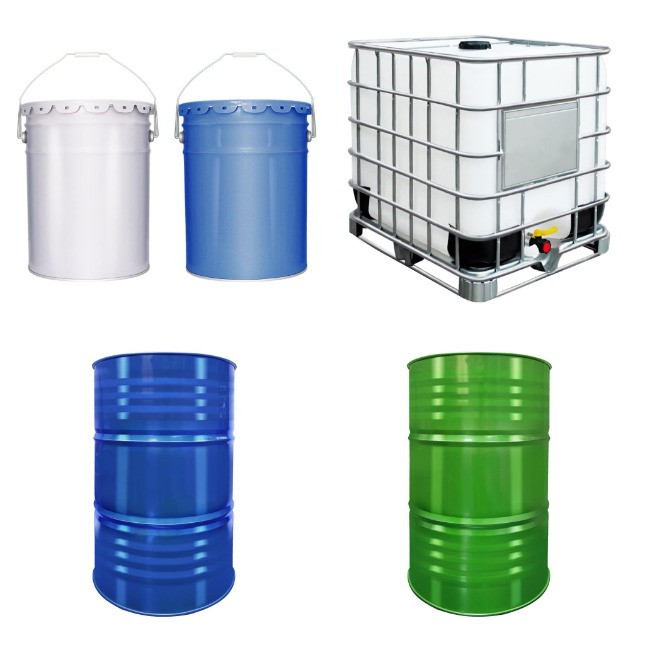

Package Image

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation 1

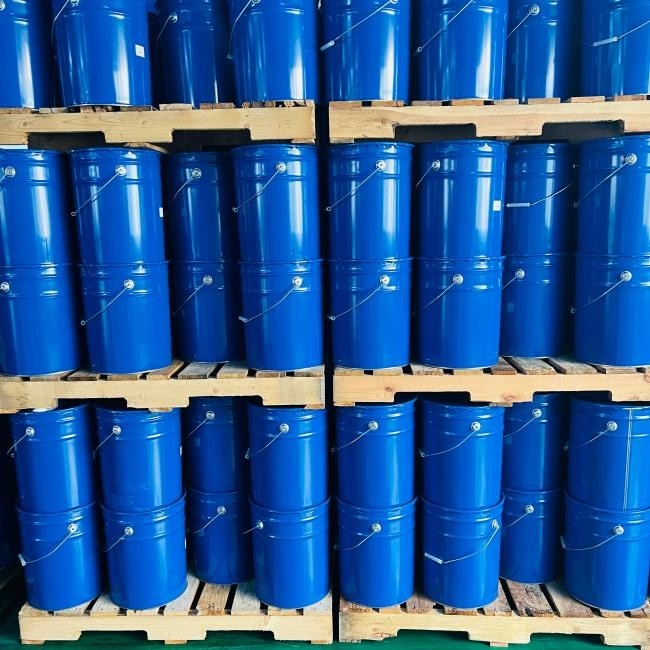

Shipment image

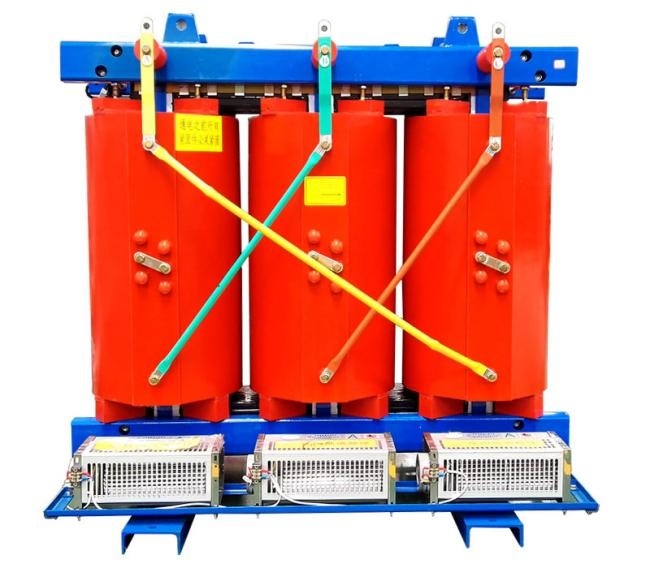

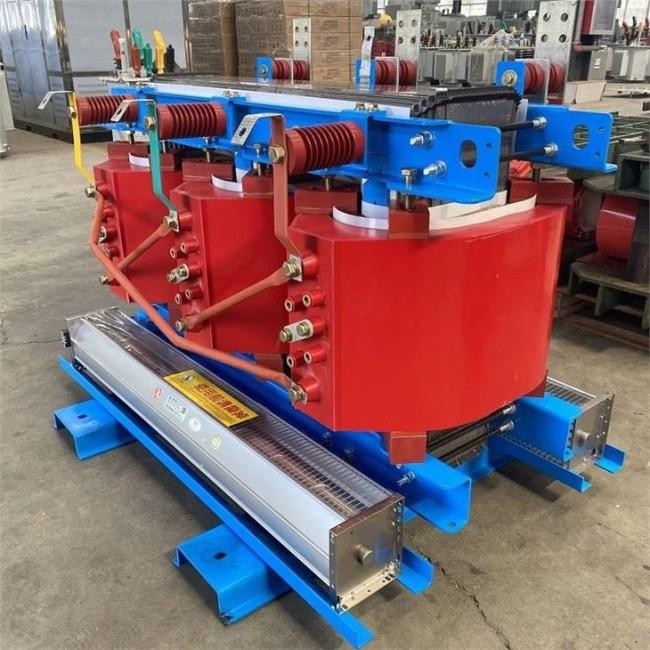

Example application image

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation 3
