Name: Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: LE-184, LH-8504
Price: 2.30 USD
Availability: InStock

Home > products > Outdoor Epoxy Resin >

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation

Outdoor casting epoxy resin

High Voltage casting epoxy resin

Medium Voltage casting epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

LE-184, LH-8504

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Dry-type Transformers, And Other Insulation Products.

Application:

Outdoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Transparent Viscous Liquid

Viscosity At 25°C:

7000 - 10000mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

＜ 0.01Pa

Flash Point:

Around 130°C

Epoxy Value:

4.5 - 5.0Eq/kg

Discription:

Outdoor Casting Epoxy Resin For Insulators Applying Medium And High Voltage Electric Power Insulation

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

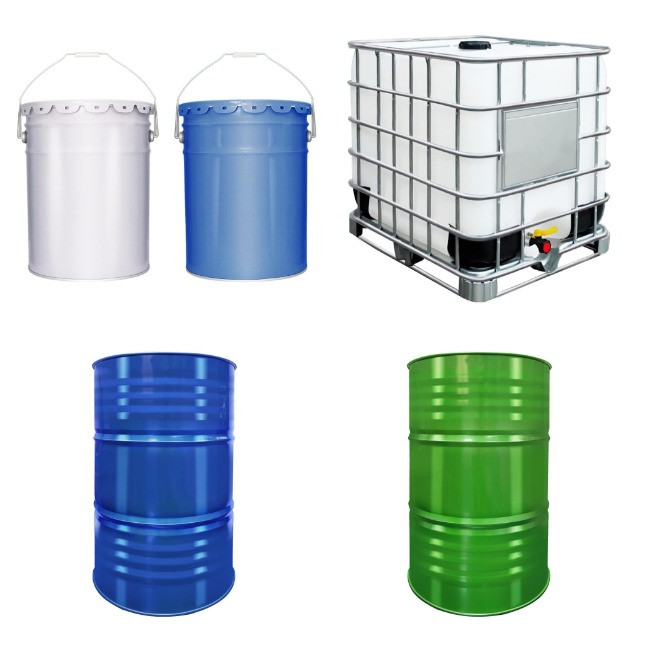

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

High Tg Flame Retardant Epoxy Encapsulant for Transformer Insulation & Protection

Get Best Price

Video

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation

Get Best Price

Video

Flexible Casting Epoxy Resin For Transformer Coil Encapsulation Adaptable To Different Conditions

Get Best Price

Video

UV - Resistant Epoxy Resin For Long Lasting Outdoor Insulator Performance

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

LE-184 is a modified saturated cyclic aliphatic epoxy resin system.

LH-8504 is a modified weather-resistant anhydride hardener.

LF-675 is a low-viscosity solvent-free modified polyol.

LZ-622 is a modified tert-butylamine.

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation

Applications

Outdoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Excellent resistance to thermal shock, superior mechanical and dielectric properties.

Formulation

Epoxy resin	LE-184	100 pbw
Hardener	LH-8504	100 pbw
Flexbilizer	LF-675	0-20 pbw
Accelerator	LZ-622	0.1-1.0 pbw
Filler	Silica powder	300-450 pbw
Color paste	LC series *	3 pbw

Advantage

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation 0

Package Image

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation 1

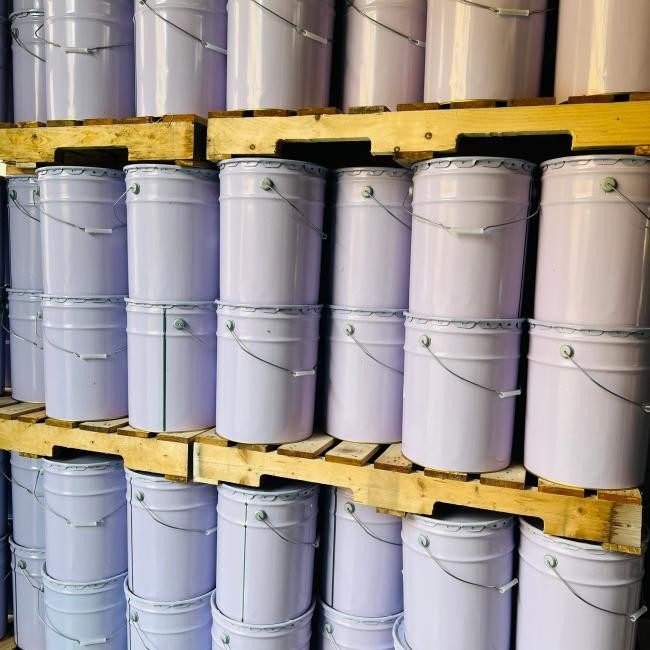

Shipment image

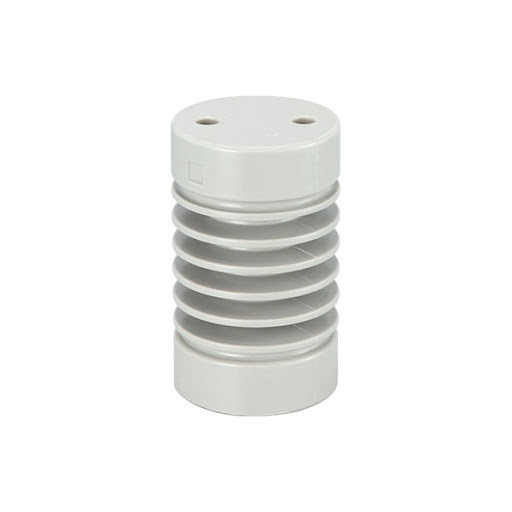

Example application image

Outdoor casting epoxy resin for insulators applying medium and high voltage electric power insulation 3
