Name: Two component polyurethane resin APG machine mold forming epoxy resin
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8214
Price: 2.25 USD
Availability: InStock

Home > products > Casting Epoxy Resin >

Two component polyurethane resin APG machine mold forming epoxy resin

Machine Mold Forming Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8214

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Dry-type Transformers, 10-66kV Current Transformers, Voltage Transformers, And Other Related Products.

Application:

Electrical Insulators For Medium And High Voltage Applications.

Viscosity At 25°C:

7500 - 12000mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

≤ 0.01Pa

Flash Point:

Around 135°C

Appearance Of Resin:

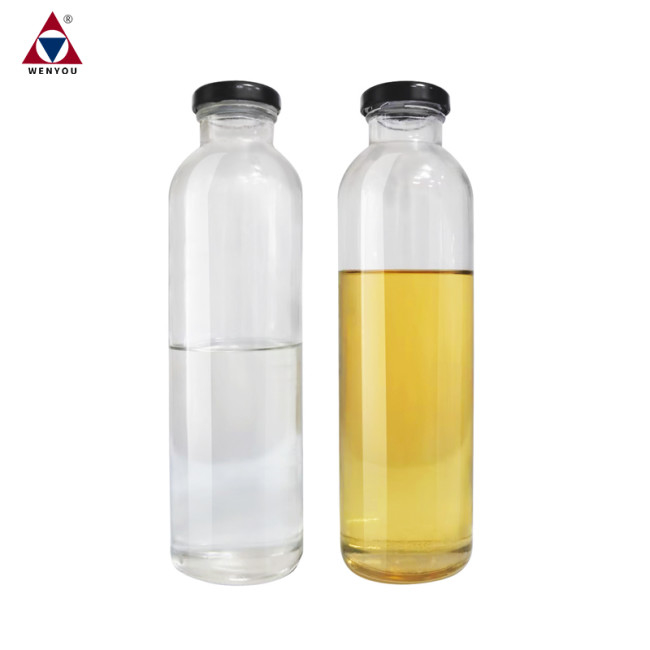

Transparent Viscous Liquid

Appearance Of Hardener:

Light Yellow Liquid

Description:

Two Component Polyurethane Resin APG Machine Mold Forming Epoxy Resin

Highlight:

Machine Mold Forming Epoxy Resin

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

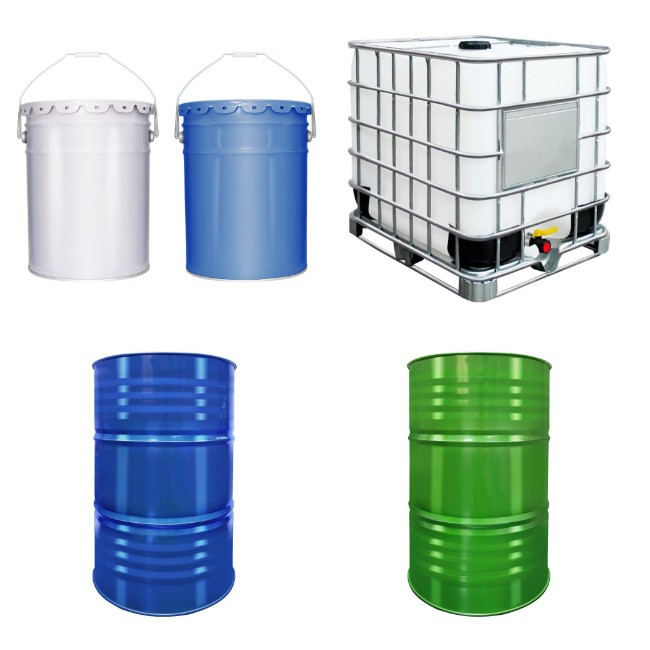

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally L/C, T/T

Supply Ability

Plenty of raw material in stock

Flame Retardant Liquid Epoxy Resin, Casting Epoxy Resin 9276 Be Used for Medium- High Voltage Transformer

Get Best Price

Liquid Electrical Epoxy Resin, Casting Epoxy Resin for Medium&High Voltage Insulation Parts

Get Best Price

Video

Low Viscosity Epoxy Curing Agent for Void-Free MV CT & Potential Transformer Potting

Get Best Price

Video

APG Injection Epoxy For Current Transformers High Insulation & Flame Retardant

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

CT/PT Transformer Epoxy Resin with Polyurethane Hardener

LE-8214 is a modified BPA-type epoxy resin designed for enhanced performance.

LH-8214 is a liquid modified carboxylic acid anhydride curing agent.

Applications

Suitable for electrical insulation in medium and high voltage applications.
Ideal for dry-type transformers, 10-66 kV current transformers, voltage transformers, and related components.

Processing Methods

Conventional Gravity Casting Process under vacuum.
The production process can be tailored to meet the client's existing manufacturing techniques.

Properties

This system consists of a two-component saturated cyclic epoxy resin without pre-mixed fillers, remaining in liquid form at room temperature.
Features low curing shrinkage, excellent dimensional stability, superior processing capabilities, and outstanding mechanical and electrical properties.

Formulation
