Name: Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 8517
Price: 2.30 USD
Availability: InStock

Home > products > Outdoor Epoxy Resin >

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

UV resistance clear liquid resin

Outdoor transformer crystal epoxy

APG forming Outdoor transformer crystal epoxy

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8517

Request A Quote

Product Details

Classification:

Double Components Adhesives

Usage:

Insulators, Transformers, And Other Insulation Products

Application:

Outdoor Electrical Insulators For Medium And High Voltage Applications

Appearance Of Epoxy Resin:

Light Yellow Transparent Viscous Liquid

Viscosity At 25°C:

1000 - 2500mPa.s

Density At 25°C:

1.16 - 1.20g/cm3

Vapor Pressure At 25°C:

< 0.01Pa

Flash Point:

Around 135°C

Discription:

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

Epoxy Value:

4.5 - 5.0Eq/kg

Payment & Shipping Terms

Minimum Order Quantity

20kg/pail as sample

Price

Negotiable

Packaging Details

20kg/pail, 220kg/barrel, 1200kg/tank

Delivery Time

7 -10 work days

Payment Terms

Normally T/T, L/C

Supply Ability

Plenty of raw material in stock

High Tg Flame Retardant Epoxy Encapsulant for Transformer Insulation & Protection

Get Best Price

Video

High Thermal Conductivity Cast Resin For Dry Type Transformers Superior Heat Dissipation

Get Best Price

Video

Flexible Casting Epoxy Resin For Transformer Coil Encapsulation Adaptable To Different Conditions

Get Best Price

Video

UV - Resistant Epoxy Resin For Long Lasting Outdoor Insulator Performance

Get Best Price

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact Now

Product Description

Brief Introduction

Outdoor transformer crystal epoxy UV resistance clear liquid resin APG forming

LE-8517 is a modified saturated cyclic aliphatic epoxy resin system.

LH-8517 is a modified weather-resistant anhydride hardener.

Applications

Outdoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.

Excellent UV resistance, excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.

Formulation

Epoxy resin	LE-8517	100 pbw
Hardener	LH-8517	100 pbw
Filler	Silica powder	300 - 360 pbw
Color paste	LC series *	3 pbw

Advantage

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming 0

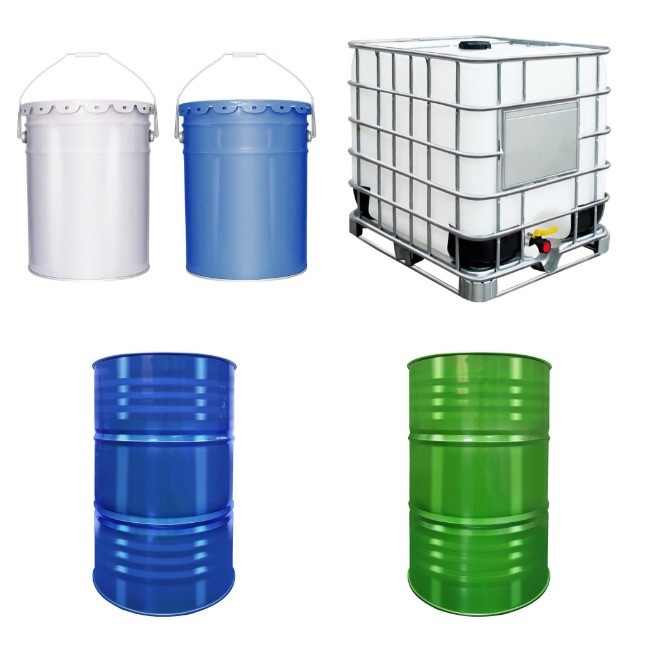

Package Image

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming 1

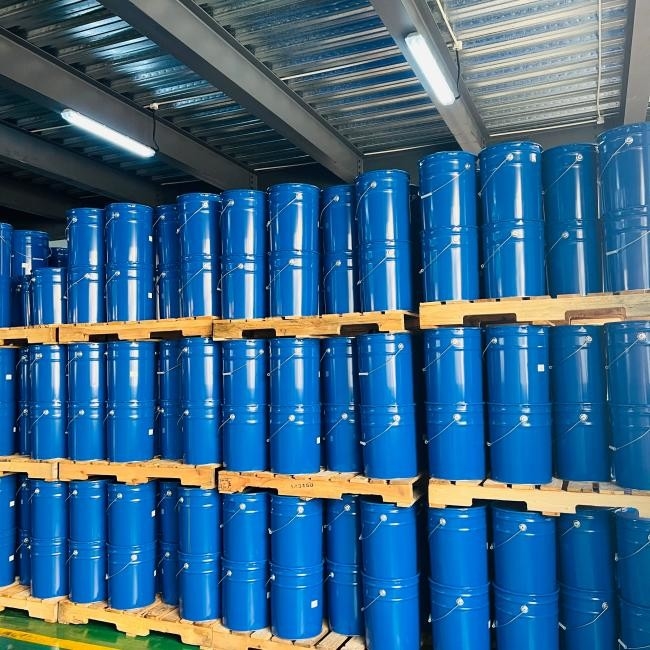

Shipment image

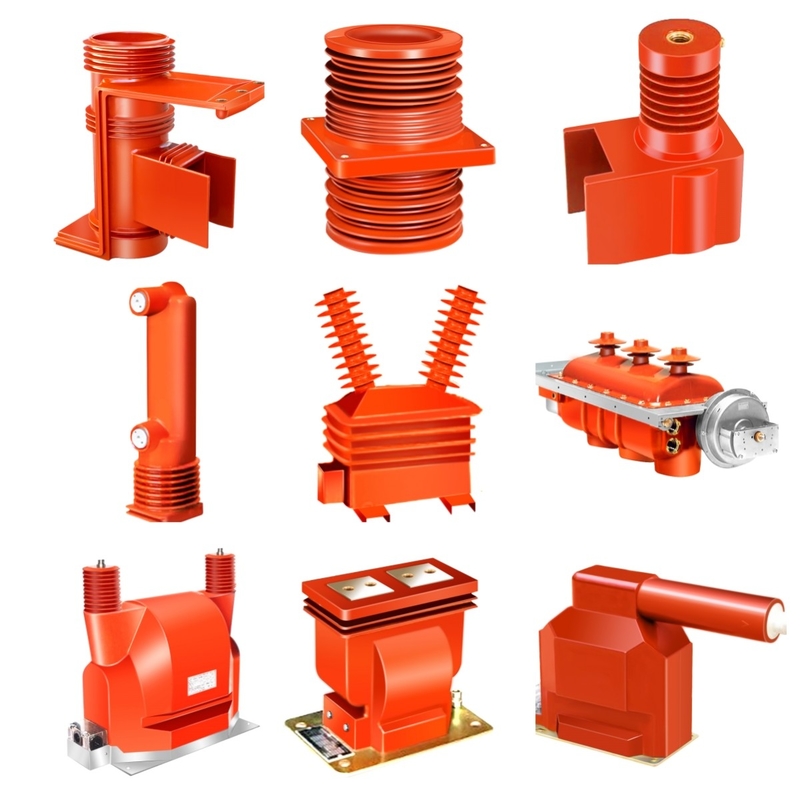

Example application image

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming 3
